Jacking Points - Front

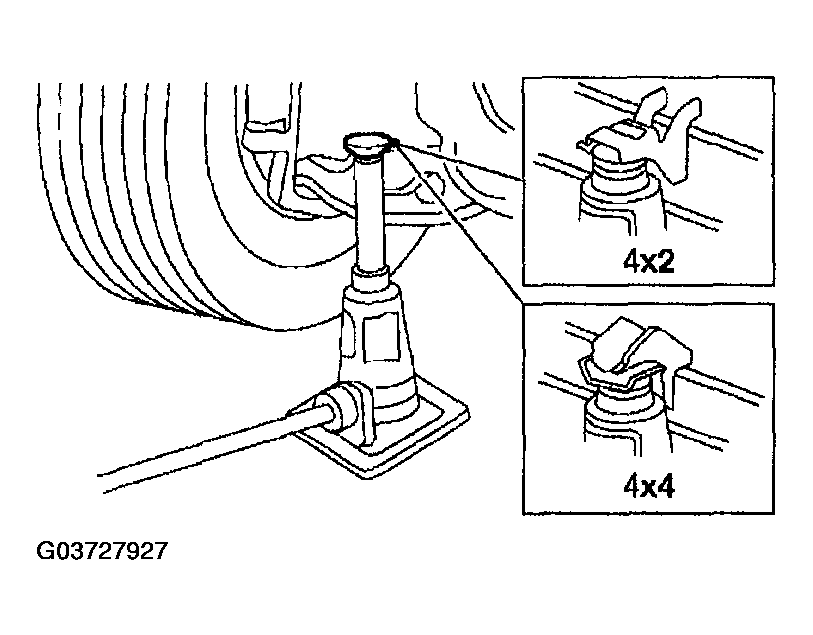

Fig 1: Identifying Jacking Points (Front)
G03727927Courtesy of MAZDA MOTORS CORP.

The jacking point is a tab that extends from the front suspension lower control arm.
