Disconnecting connectors
Disconnecting connectors
When disconnecting two connectors, grasp the connectors, not the wires.

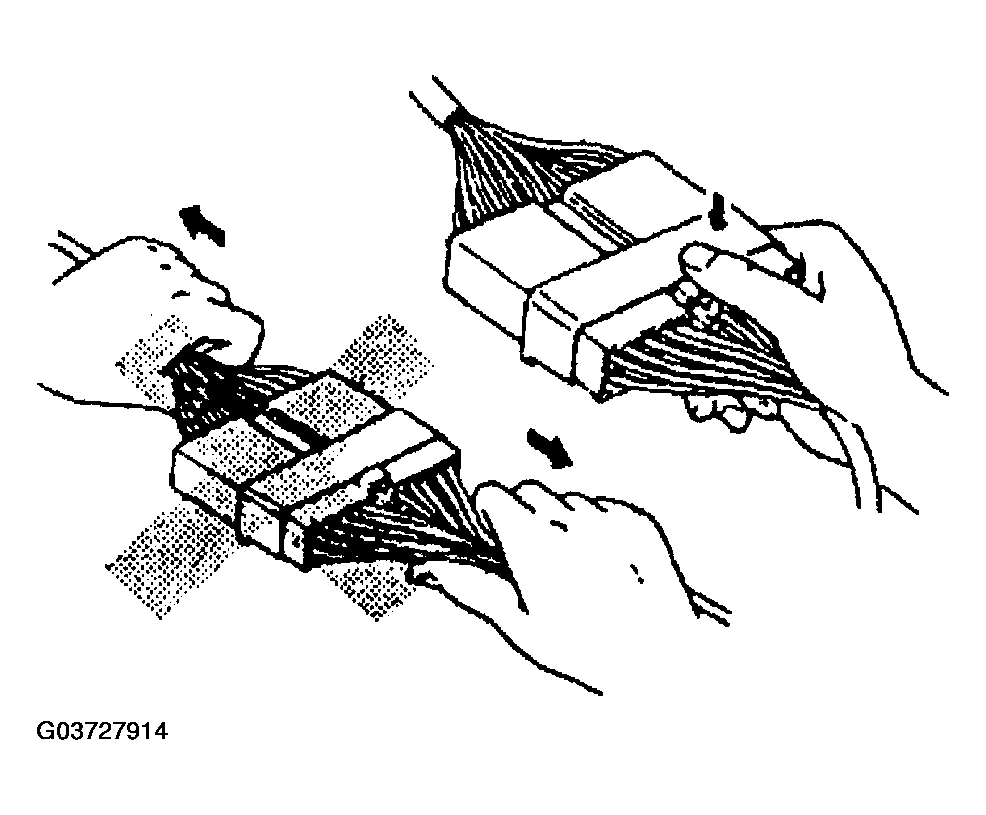

Fig 1: Disconnecting Connectors (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Connectors can be disconnected by pressing or pulling the lock lever as shown.
Fig 2: Disconnecting Connectors (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
