Power Window Inoperative - Passenger Power Window

SYMPTOM TROUBLESHOOTING CHART - PASSENGER POWER WINDOW

PINPOINT TEST 3		POWER WINDOW IS INOPERATIVE - PASSENGER POWER WINDOW
STEP	INSPECTION		ACTION
1	CHECK RIGHT POWER WINDOW FUNCTION Key ON. Operate the right power window using the power window main switch. Does the passenger power window operate correctly?	Yes	Go to step 2.
1		No	Go to step 4.

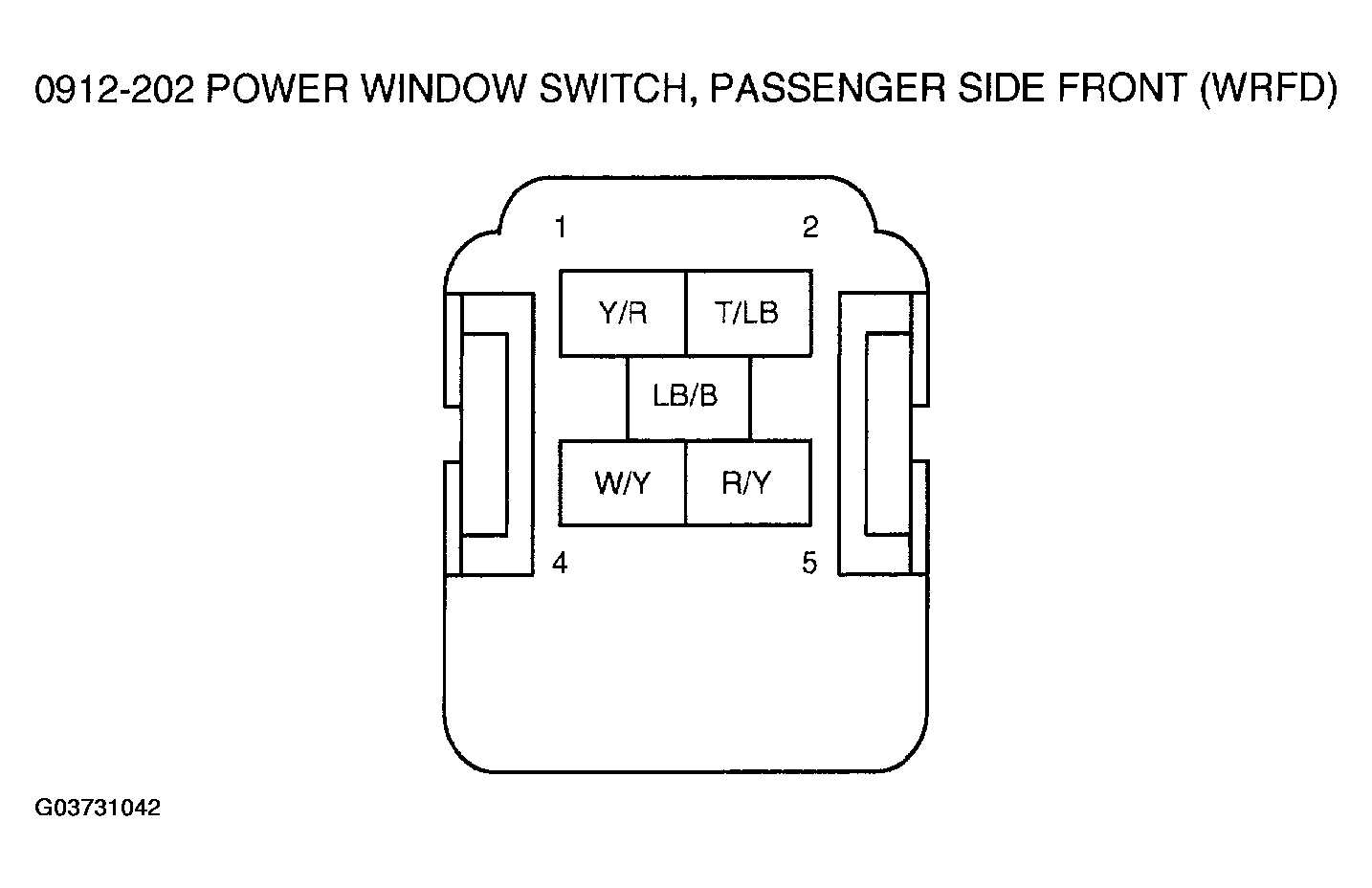

2	CHECK FOR VOLTAGE TO RIGHT POWER WINDOW SWITCH Key OFF. Disconnect right power window switch connector 0912-202. Key ON. Measure the voltage between right power window switch connector 0912-202 pin 3 circuit LB/B, harness side and ground. Is the voltage greater than 10 volts?	Yes	Replace the right power window switch. Clear the DTCs. Test the system for normal operation.
2		No	Go to step 3.

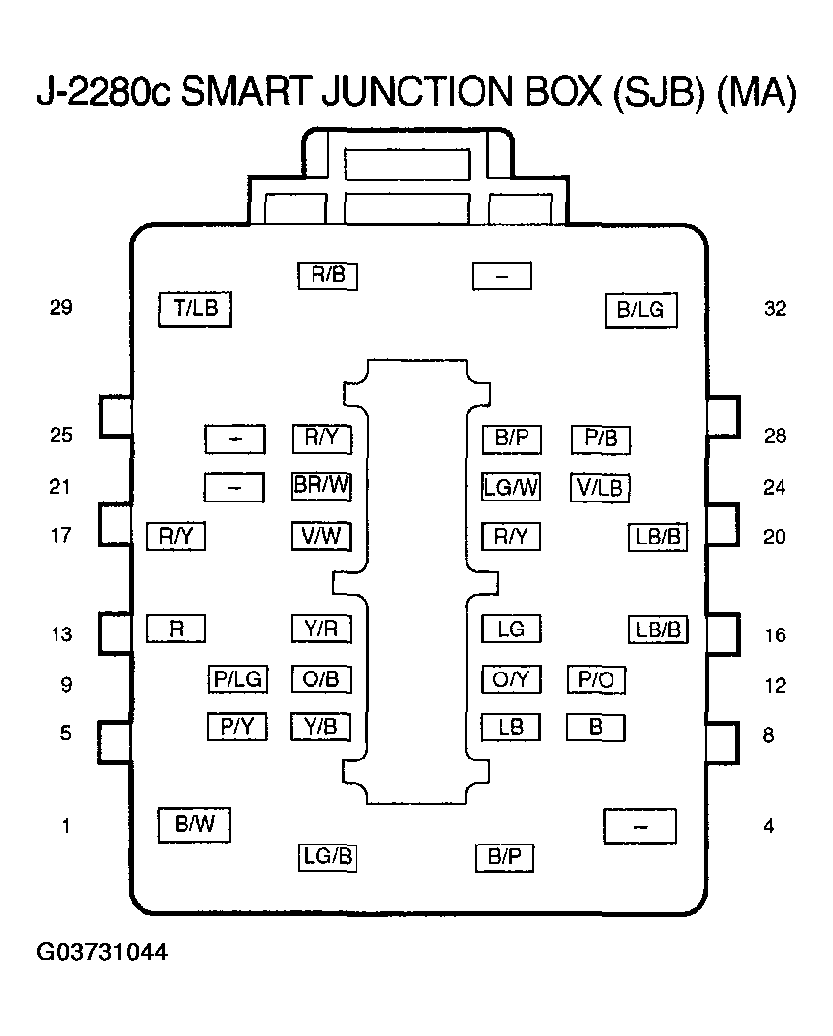

3	CHECK LB/B CIRCUIT FOR AN OPEN Key OFF. Disconnect SJB connector J-2280c. Measure the resistance between SJB connector J-2280c pin 16 circuit LB/B, harness side and right power window switch connector 0912-202 pin 3 circuit LB/B, harness side. Is the resistance less than 5 ohms?	Yes	Go to step 9.
3		No	Repair LB/B wire. Clear the DTCs. Test the system for normal operation.
4	CHECK RIGHT POWER WINDOW SWITCH FOR AN OPEN Key OFF. Disconnect right power window switch connector 0912-202. Connect a fused (15A) jumper wire between right power window switch connector 0912-202 pin 1 circuit Y/R and pin 2 circuit T/LB. Connect a fused (15A) jumper wire between right power window switch connector 0912-202 pin 4 circuit W/Y and pin 5 circuit R/Y. Key ON. Operate the right power window with the power window main switch. Does the right power window operate?	Yes	Replace right power window switch. Clear the DTCs. Test the system for normal operation.
4		No	Go to step 5.
5	CHECK T/LB CIRCUIT FOR AN OPEN Key OFF. Disconnect driver power window switch connector 0912-201. Measure the resistance between right power window switch connector 0912-202 pin 2 T/LB, harness side and driver power window switch connector 0912-201 pin 6 circuit T/LB. Is the resistance less than 5 ohms?	Yes	Go to step 6.
5		No	Repair T/LB wire. Clear the DTCs. Test the system for normal operation.
6	CHECK Y/R CIRCUIT FOR AN OPEN OR A SHORT TO GROUND Disconnect right power window motor connector 0912-203. Measure the resistance between right power window switch connector 0912-202 pin 1 circuit Y/R, harness side and right power window motor connector 0912-203 pin 1 circuit Y/R, harness side. Measure the resistance between right power window switch connector 0912-202 pin circuit 1 Y/R, harness side and ground. Is the resistance less than 5 ohms between connectors, and greater than 10K ohms to ground?	Yes	Go to step 7.
6		No	Repair Y/R wire. Clear the DTCs. Test the system for normal operation.
7	CHECK W/Y CIRCUIT FOR AN OPEN Measure the resistance between right power window switch connector 0912-202 pin 4 circuit W/Y, harness side and driver power window switch connector 0912-201 pin 3 circuit W/Y, harness side. Is the resistance less than 5 ohms?	Yes	Go to step 8.
7		No	Repair W/Y wire. Clear the DTCs. Test the system for normal operation.
8	CHECK R/Y CIRCUIT FOR AN OPEN OR A SHORT TO GROUND Measure the resistance between right power window switch connector 0912-202 pin circuit 5 R/Y, harness side and right power window motor connector 0912-203 pin 2 circuit R/Y, harness side. Measure the resistance between right power window switch connector 0912-202 pin 5 circuit R/Y, harness side and ground. Is the resistance less than 5 ohms between connectors, and greater than 10K ohms to ground?	Yes	Replace the right power window motor. Clear the DTCs. Test the system for normal operation.
8		No	Repair R/Y wire. Clear the DTCs. Test the system for normal operation.
9	CHECK SMART JUNCTION BOX (SJB) FOR CORRECT OPERATION Key OFF. Disconnect all the SJB connectors. Check for: corrosion pushed-out pins Connect all the SJB connectors and make sure they are seated correctly. Operate the system and verify the concern is still present. Is the concern still present?	Yes	Replace the SJB. See SMART JUNCTION BOX (SJB) REMOVAL/INSTALLATION . Clear the DTCs. Test the system for normal operation.
9		No	The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. Clear the DTCs. Test the system for normal operation.
