Seat Front - 60/40 Split Bench Disassembly/Assembly: Disassembly

WARNING:
  • The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
WARNING:
  • To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
  • If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE:
  • The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE:
  • The SRS must be fully operational and free faults before releasing the vehicle to the customer.
  1. Depower the SRS. See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
  2. Remove the affected seat. See SEAT BUCKET FRONT REMOVAL/INSTALLATION .
  3. Remove the 60 percent armrest. See SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION .
  4. Remove the 60 percent seat backrest assembly. See SEAT BACKREST FRONT - BUCKET AND 40 PERCENT BENCH REMOVAL/INSTALLATION .
  5. Release the backrest J-clip.
    Fig 1: Releasing Backrest J-Clip
    G03731519Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Use care when separating the seat back trim cover from the hook and loop strips or the hook and loop strips may be torn from the seat back foam.
  6. Invert the backrest material and release the hook and loop strips.

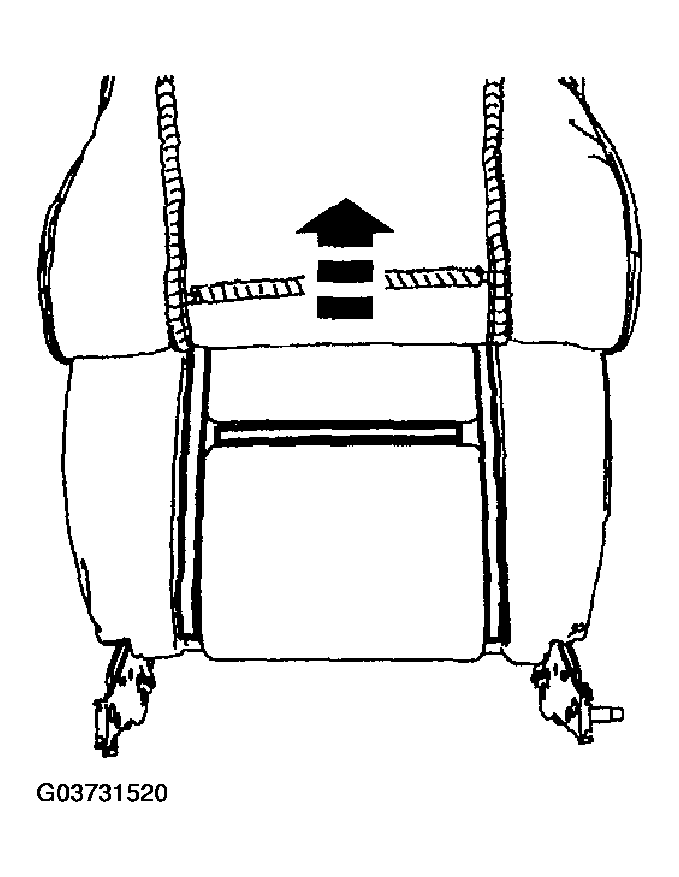

    Fig 2: Separating Seat Back Trim Cover From Hook And Loop Strips
    G03731520Courtesy of MAZDA MOTORS CORP.
  7. Remove all the hog rings and remove the backrest trim cover from the backrest foam pad.

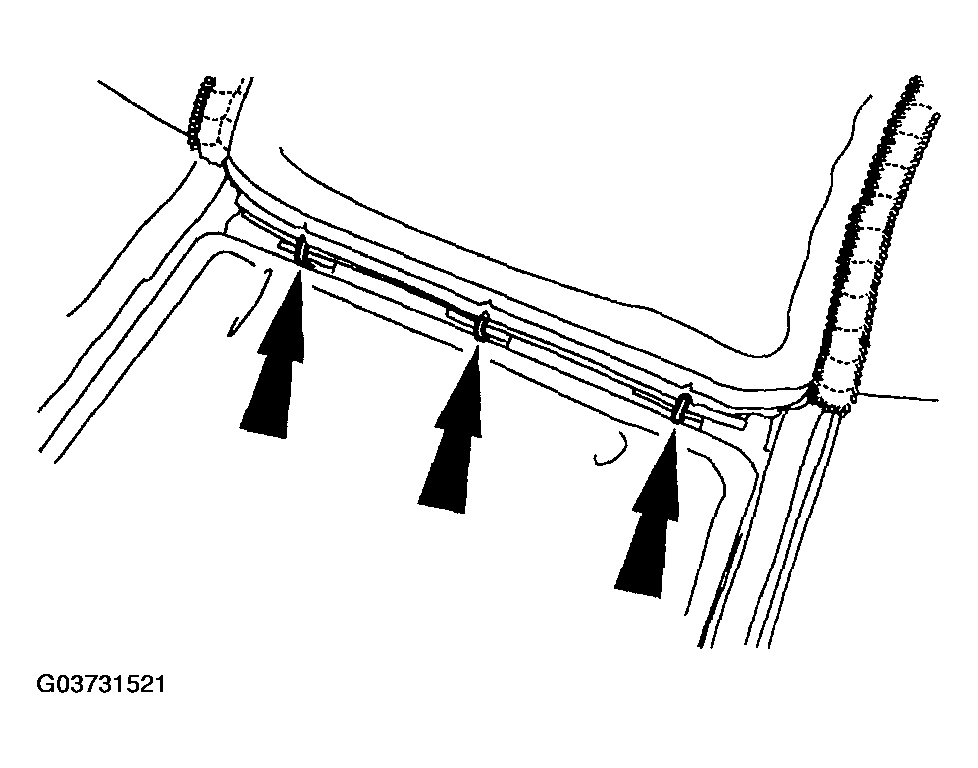

    Fig 3: Removing Hog Rings
    G03731521Courtesy of MAZDA MOTORS CORP.
  8. Lift the lower end of the backrest foam pad off the backrest frame.

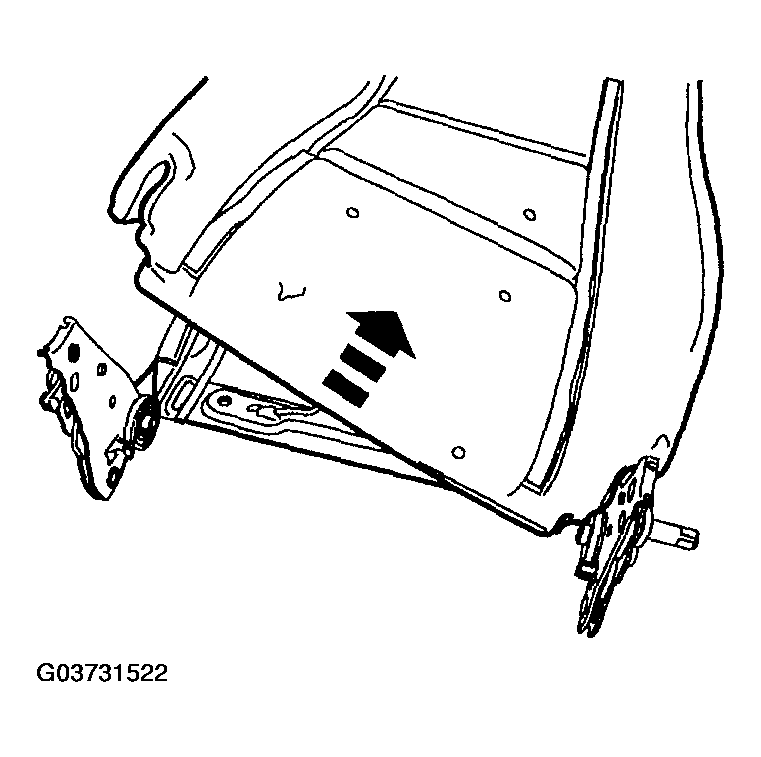

    Fig 4: Removing Lower End Of Backrest Foam Pad From Backrest Frame
    G03731522Courtesy of MAZDA MOTORS CORP.
  9. Slide the backrest frame down and out of the backrest foam pad headrest pocket.

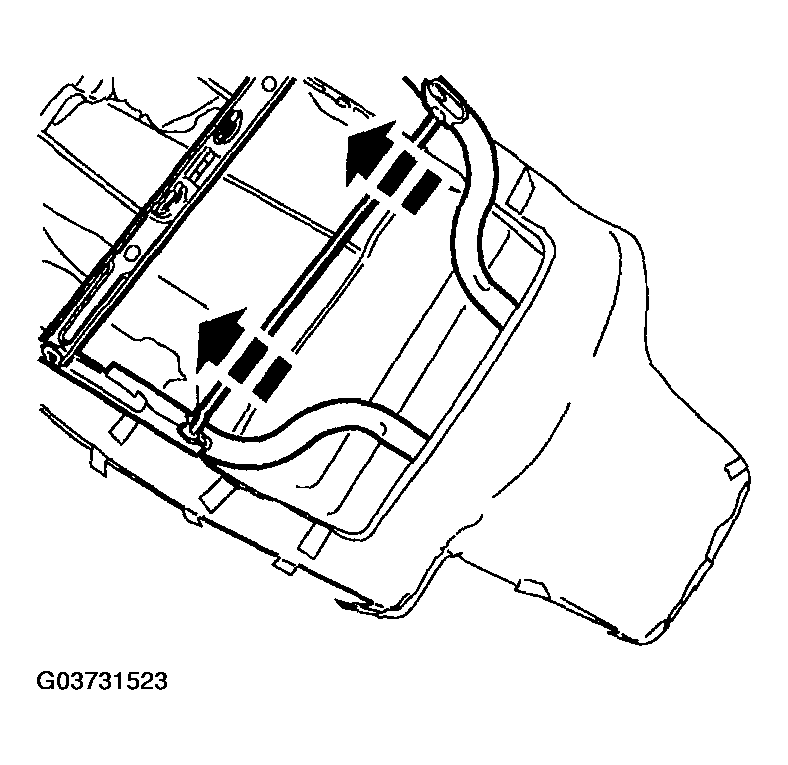

    Fig 5: Removing Backrest Frame Out Of Backrest Foam Pad Headrest Pocket
    G03731523Courtesy of MAZDA MOTORS CORP.
