Seat Front - 60/40 Split Bench Disassembly/Assembly: Assembly

Slide the backrest frame into the backrest foam pad.

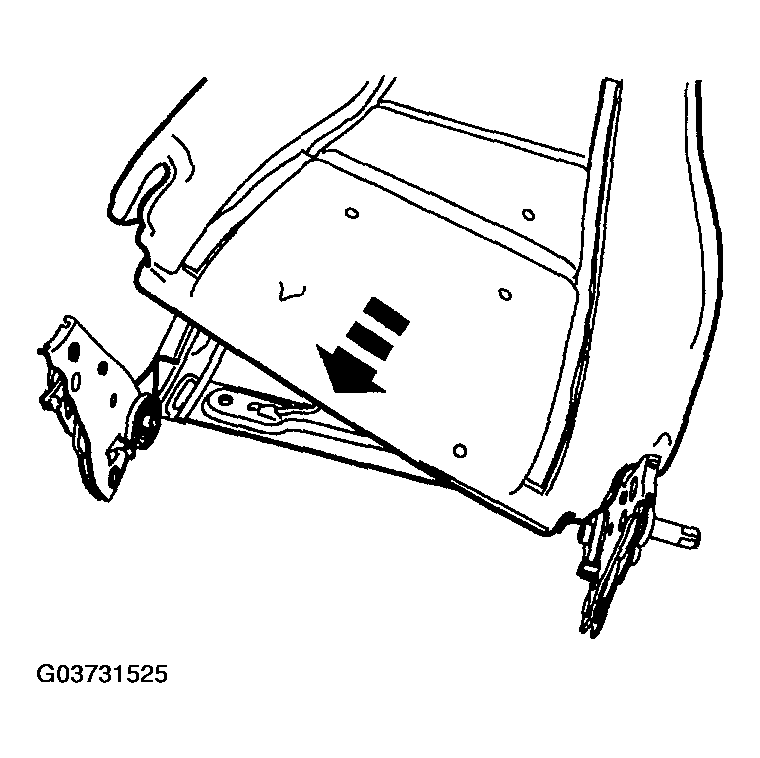

Fig 1: Sliding Backrest Frame Into Backrest Foam Pad
Courtesy of MAZDA MOTORS CORP.
Install the lower end of the backrest foam pad on the backrest frame.

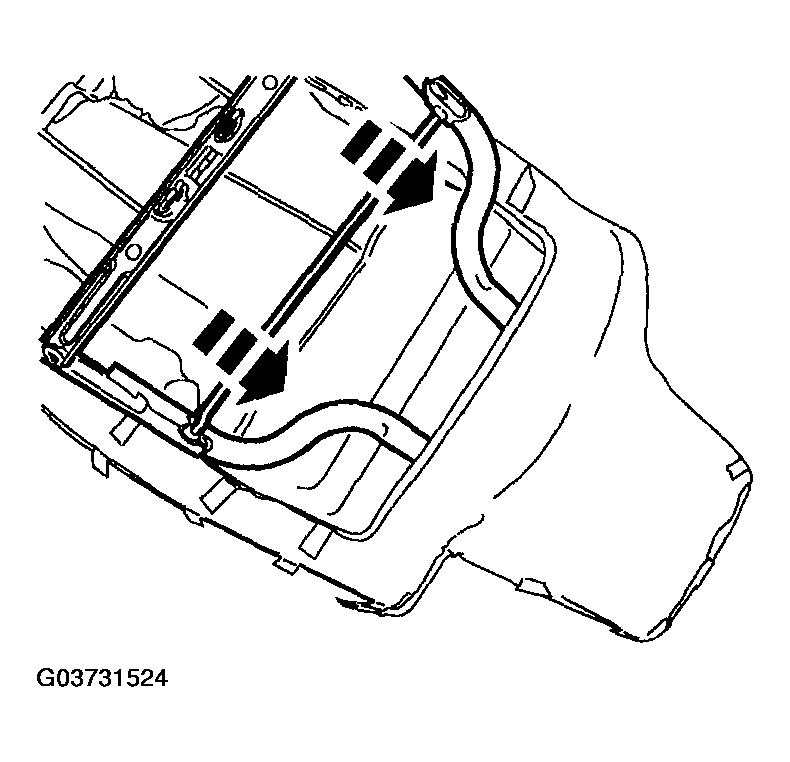

Fig 2: Installing Lower End Of Backrest Foam Pad On Backrest Frame
Courtesy of MAZDA MOTORS CORP.
Install the backrest trim cover and install all of the hog rings.

Fig 3: Installing Backrest Trim Cover Hog Rings
Courtesy of MAZDA MOTORS CORP.
Pull the backrest trim cover down and secure the hook and loop fasteners to the backrest foam pad.

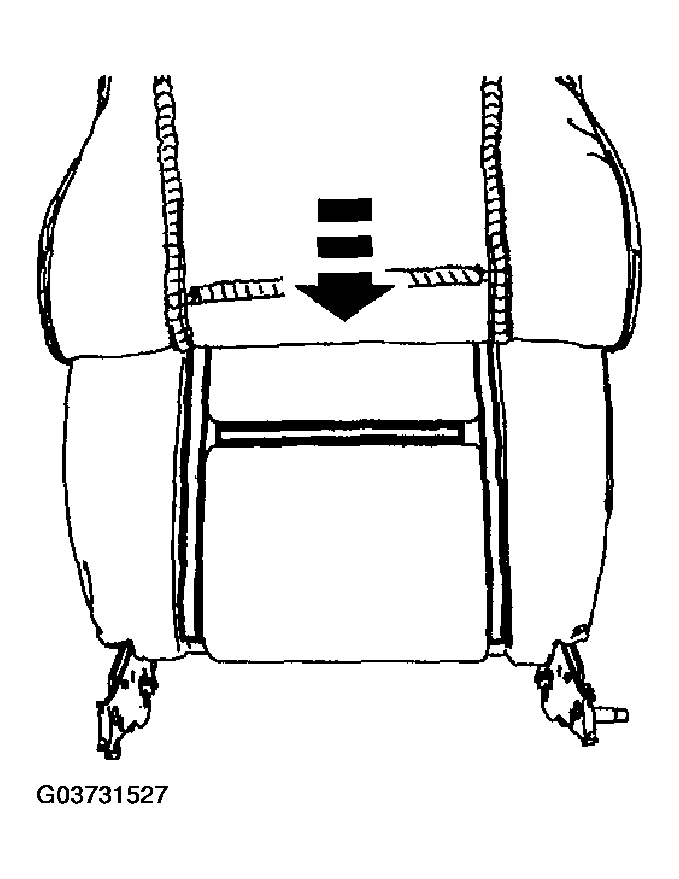

Fig 4: Pulling Backrest Trim Cover Down And Securing Hook And Loop Fasteners To Backrest Foam Pad
Courtesy of MAZDA MOTORS CORP.
Attach the backrest J-clip.

Fig 5: Attaching Backrest J-Clip
Courtesy of MAZDA MOTORS CORP.
Install the 60 percent seat backrest assembly. See SEAT BACKREST FRONT - BUCKET AND 40 PERCENT BENCH REMOVAL/INSTALLATION .
Install the 60 percent armrest. See SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION .
Install the affected seat. See SEAT BUCKET FRONT REMOVAL/INSTALLATION .
Repower the SRS. See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
