Seat Bucket Front Removal/Installation: Installation

All seats

1. Position the seat in the vehicle.
2. Connect the safety belt pretensioner electrical connector.

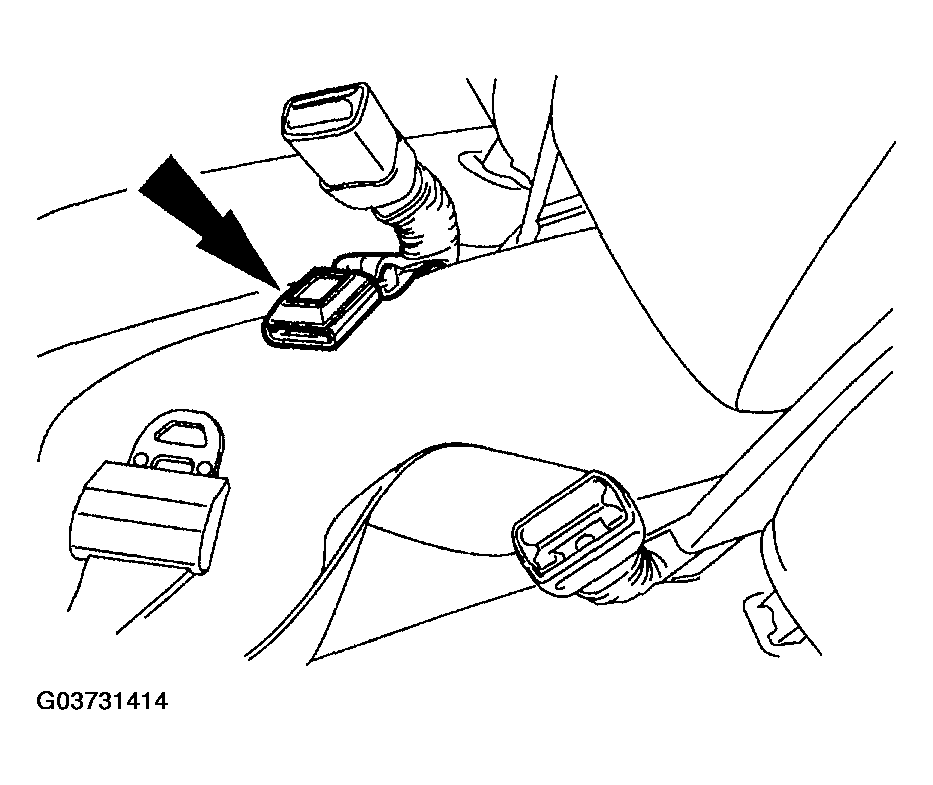

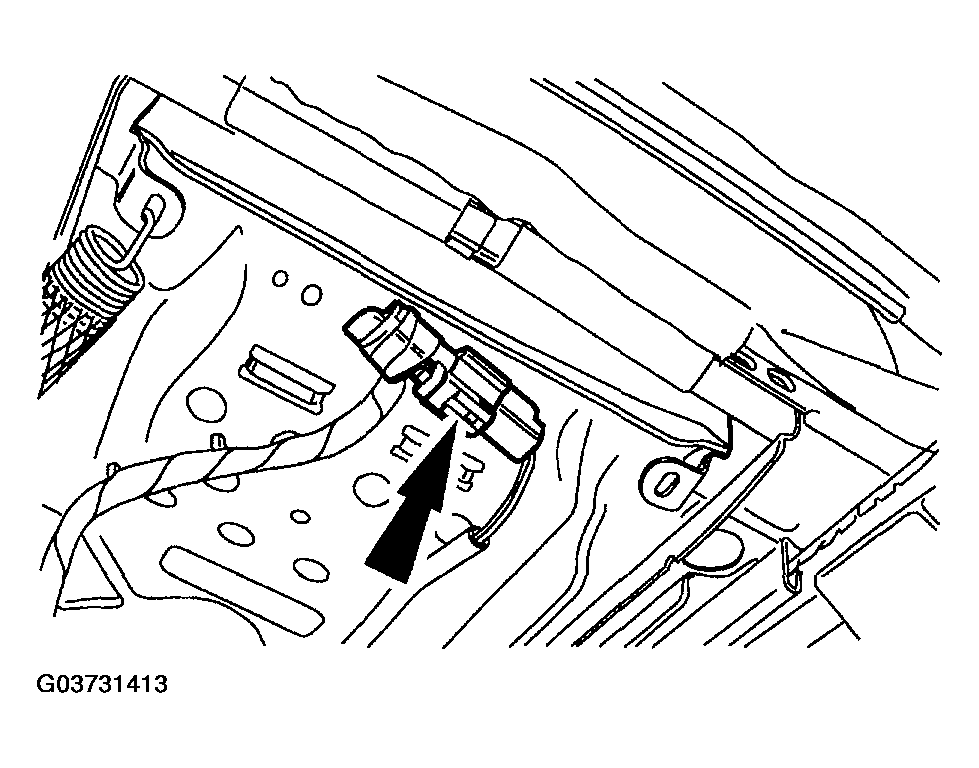

   Fig 1: Connecting Safety Belt Pretensioner Electrical Connector (All Seats)

   Courtesy of MAZDA MOTORS CORP.

Vehicles with 60 percent seat

NOTE:
• The SuperCab and Regular Cab safety belts route differently. Note belt position for correct installation.

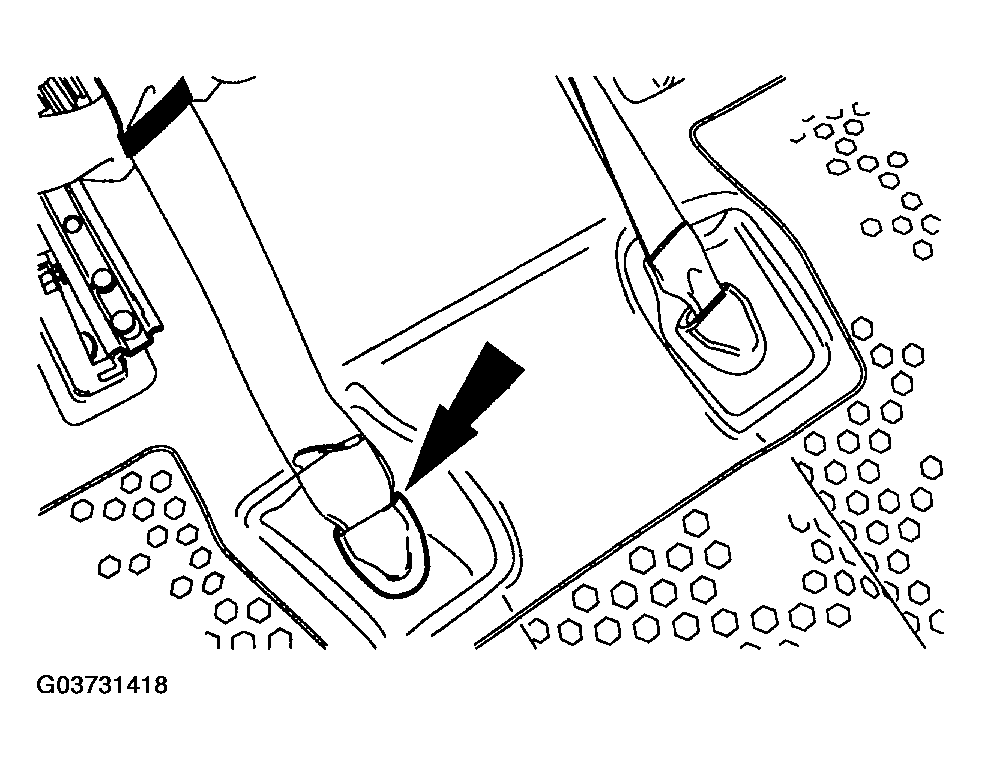

Fig 2: Routing Belts
Courtesy of MAZDA MOTORS CORP.
4. Install the front bolts.
   Fig 3: Identifying Tightening Torque Of 60 Percent Seat Front Bolts

   Courtesy of MAZDA MOTORS CORP.
5. Move seat to forward most position.
6. Install the rear bolts.

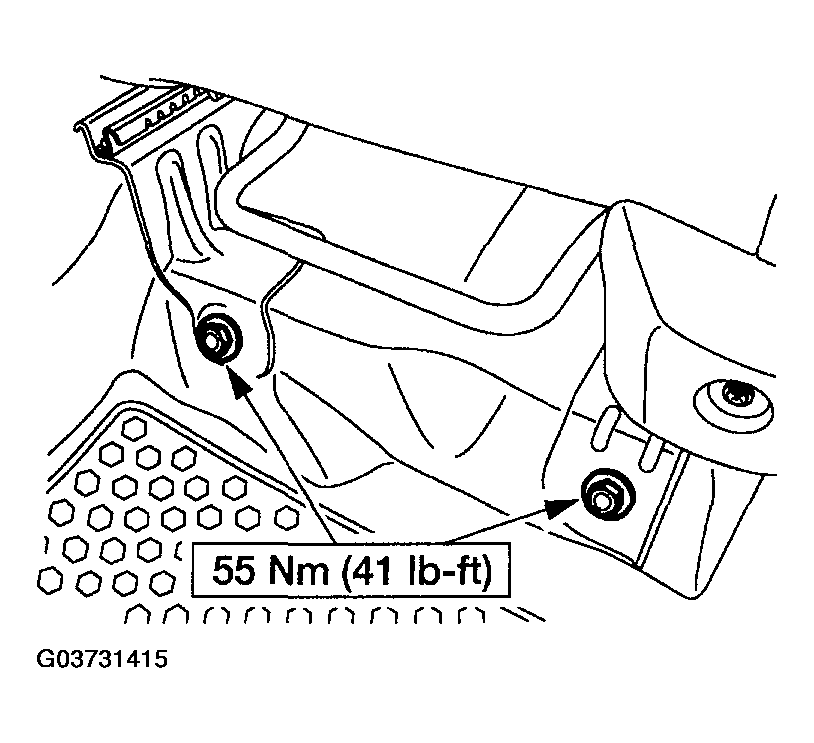

   Fig 4: Identifying Tightening Torque Of 60 Percent Seat Rear Bolts

   Courtesy of MAZDA MOTORS CORP.
7. Using the special tool 501-010, install the safety belt buckle bolt.

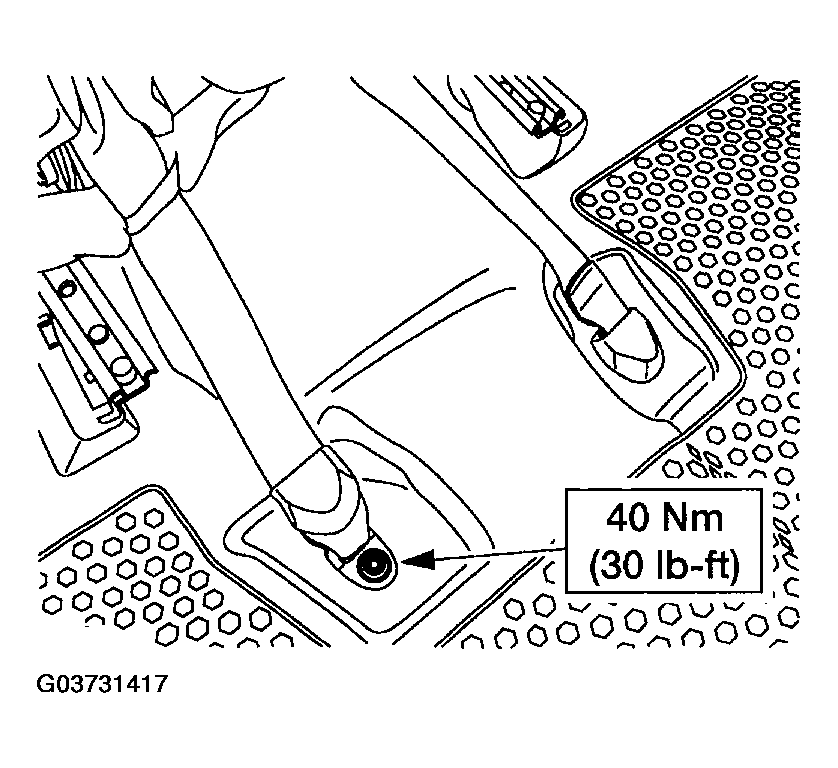

   Fig 5: Identifying Tightening Torque Of Safety Belt Buckle Bolt (60 Percent Seat)

   Courtesy of MAZDA MOTORS CORP.
8. Slide the safety belt buckle bolt covers on the safety belt and position in place.
   Fig 6: Sliding Safety Belt Buckle Bolt Covers On Safety Belt (60 Percent Seat)

   Courtesy of MAZDA MOTORS CORP.

Vehicles with 40 percent seat

9. Install the front bolts.

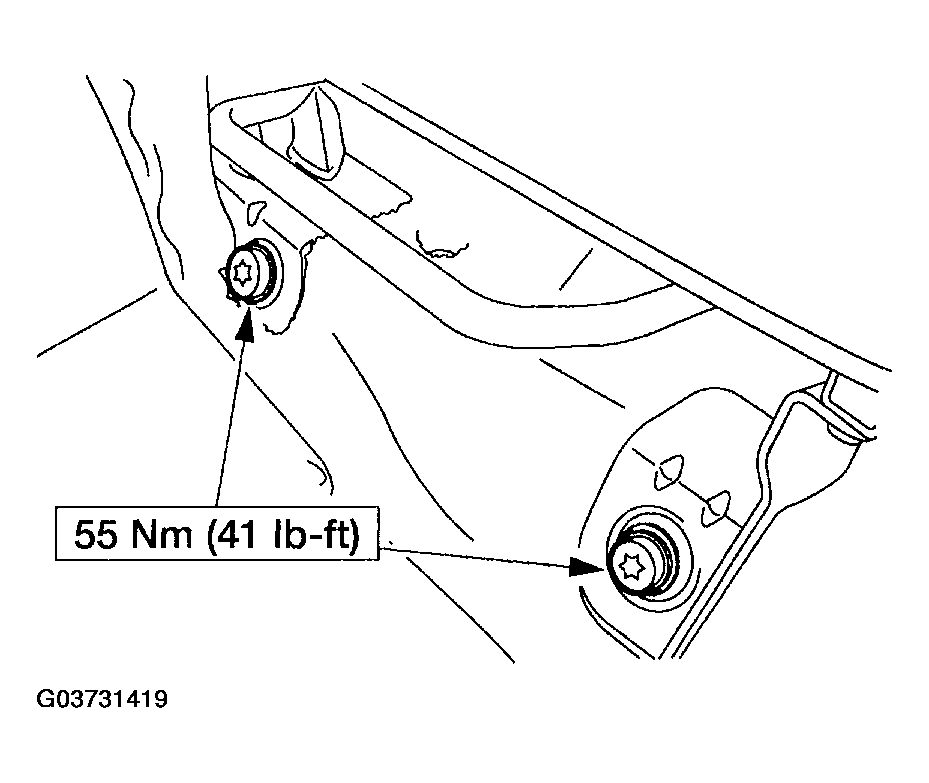

   Fig 7: Identifying Tightening Torque Of 40 Percent Seat Front Bolts

   Courtesy of MAZDA MOTORS CORP.
10. Position he seat to its forward most position.
11. Install the rear bolts.
    Fig 8: Identifying Tightening Torque Of 40 Percent Seat Rear Bolts

    Courtesy of MAZDA MOTORS CORP.

All seat

12. Repower the SRS. See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
13. Check the active restraint system for correct operation. See AIR BAG SYSTEM ON - BOARD DIAGNOSIS .
