2.3L engine

  1. Remove the bolts and the accelerator control splash shield.

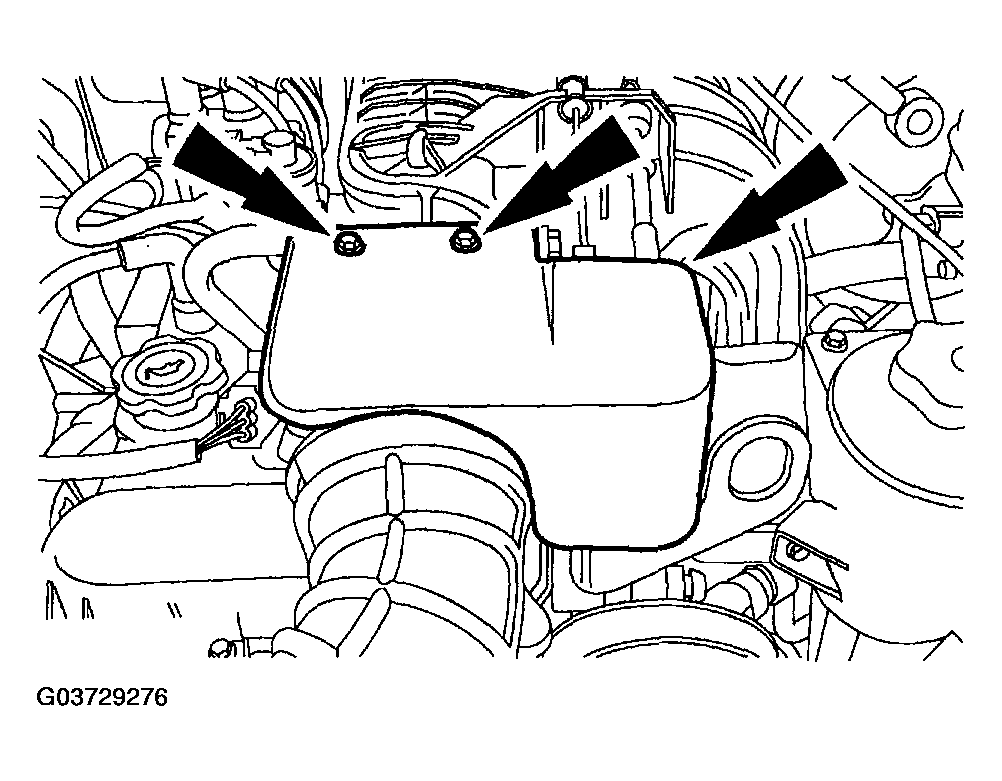

    Fig 1: Removing Bolts And Accelerator Control Splash Shield (2.3L Engine)
    G03729276Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the cruise control cable.
    • Disconnect the cable from the throttle lever.
    • Press the tabs and separate the cruise control cable from the intake manifold.

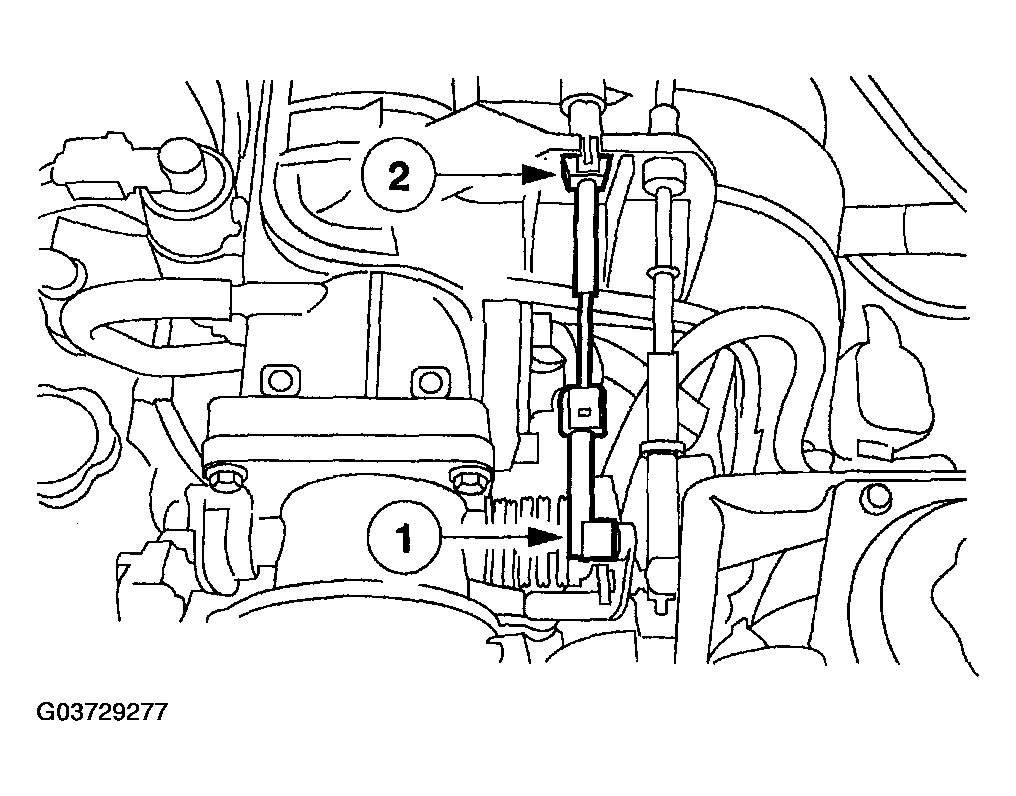

    Fig 2: Disconnecting Cruise Control Cable
    G03729277Courtesy of MAZDA MOTORS CORP.
