Restraints Control Module Removal/Installation: Installation

WARNING:
  • The tightening torque of the air bag restraints control module (RCM) bracket retaining bolts is critical for correct system operation.
  1. Install the RCM.
    1. Position the RCM.
    2. Install the bolts.
    3. Connect the RCM electrical connector.
    4. Slide and engage the RCM electrical connector locking tab.

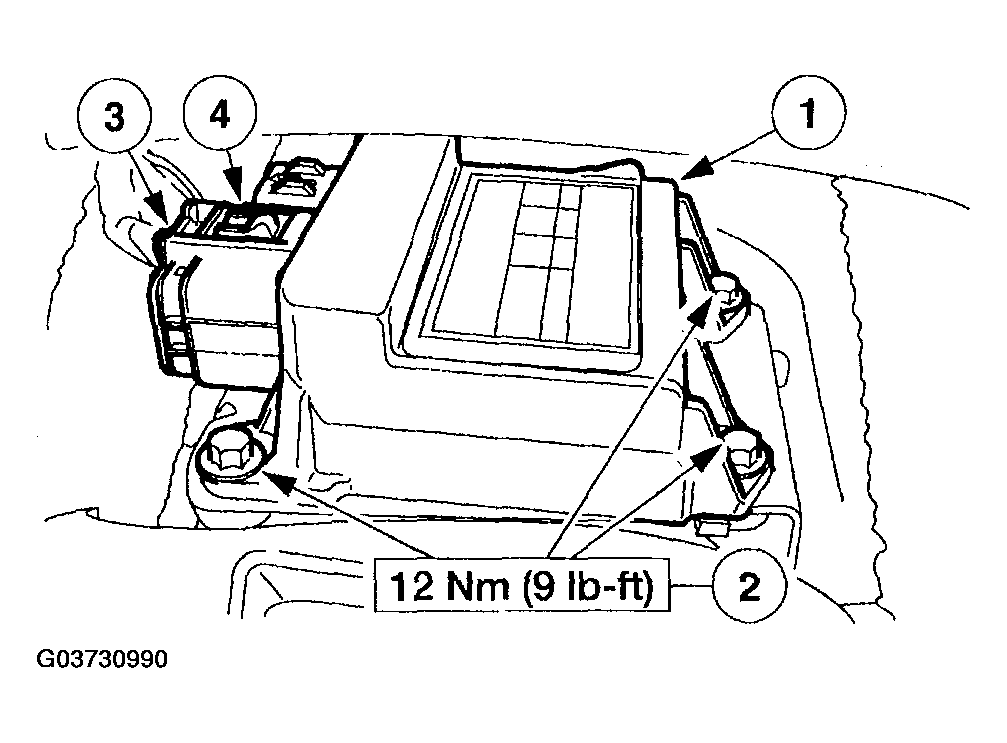

    Fig 1: Installing Restraints Control Module - With Torque Specification
    G03730990Courtesy of MAZDA MOTORS CORP.
  2. Install the floor console or utility tray.
  3. Repower the system. See DEPOWERING AND REPOWERING .
