Restraints Control Module Connector End View (C2041)

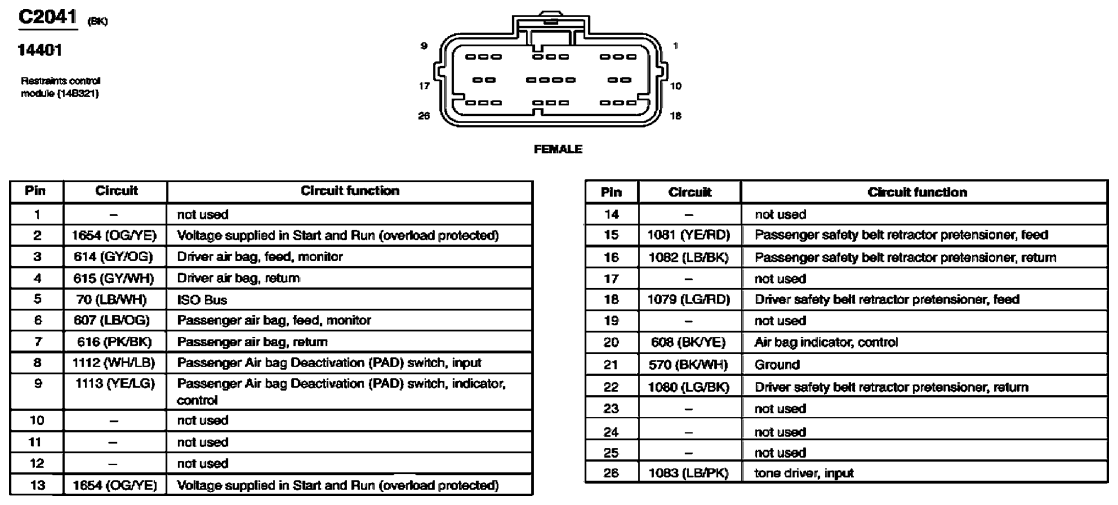

Fig 1: Restraints Control Module Connector End View (C2041)

G07843319

Courtesy of FORD MOTOR CO.
