Multi-Function Switch Removal/Installation

Disconnect the negative battery cable.
Remove the ignition lock cylinder. See IGNITION LOCK CYLINDER REMOVAL/INSTALLATION .
If equipped, remove the tilt wheel handle.
Remove the upper and lower steering column shrouds.
Remove in order shown in Fig 1.
1. Screws
2. Connectors
3. Switch

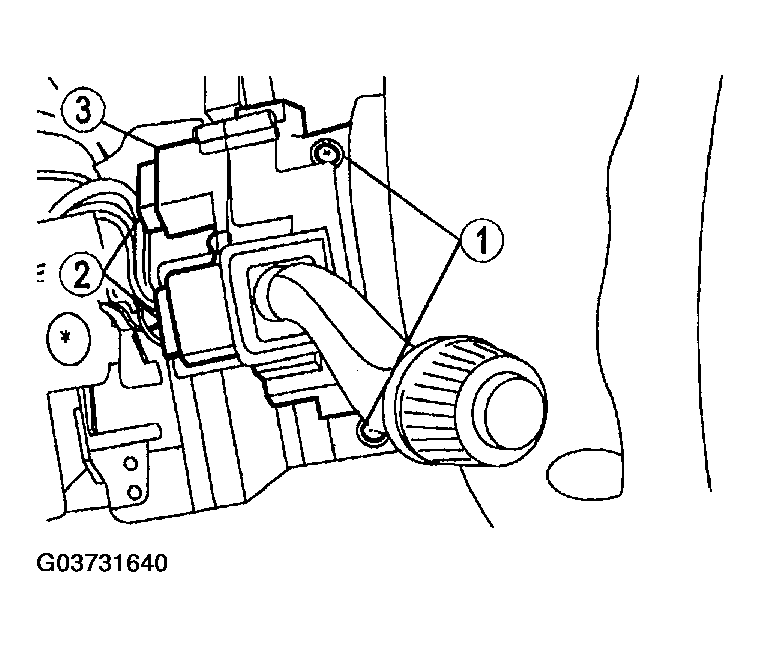

Fig 1: Removing Multi-Function Switch
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
Tightening torque

2 - 3 N.m { 20 - 31 kgf.cm, 18 - 27 in.lbf}
