Shift Lock Actuator Removal/Installation

Remove the steering column assembly; see STEERING COLUMN REMOVAL/INSTALLATION .
Remove the insert plate and the shift lock actuator.
1. Remove the bolts.
2. Remove the insert plate and the shift lock actuator.

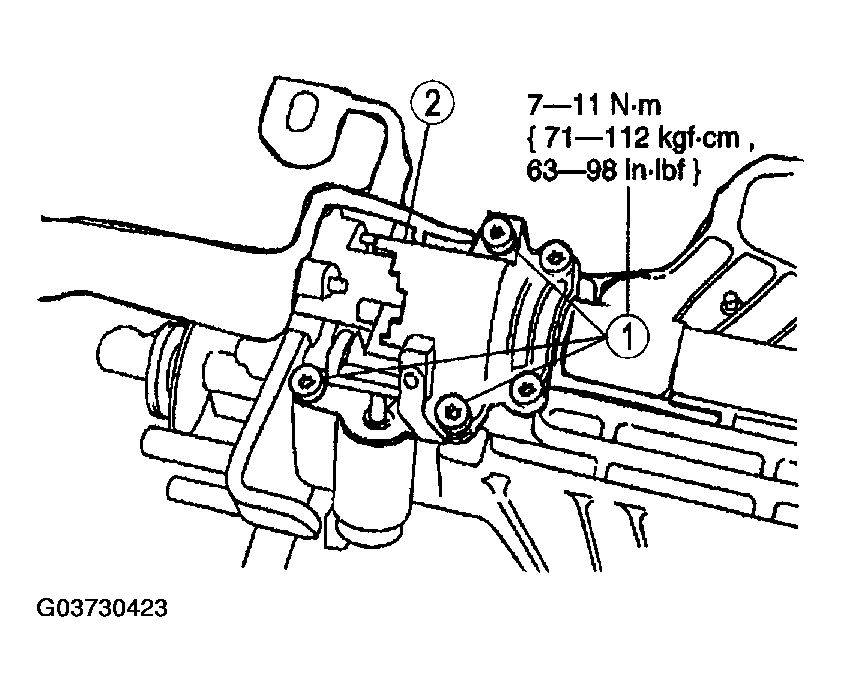

  Fig 1: Insert Plate And Shift Lock Actuator -- With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - The shift lock actuator clip is an assembly aid for the assembly plant and does not need to be replaced.
Remove the insert plate from the shift lock actuator.
- Remove and discard the shift lock actuator clip.

  Fig 2: Removing Insert Plate From Shift Lock Actuator
  Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
