CII Pump Removal Note

  1. Remove the pump pulley; See POWER STEERING PUMP PULLEY REMOVAL/INSTALLATION - 2.3L AND 3.0L .
  2. Disconnect the power steering pressure hose.

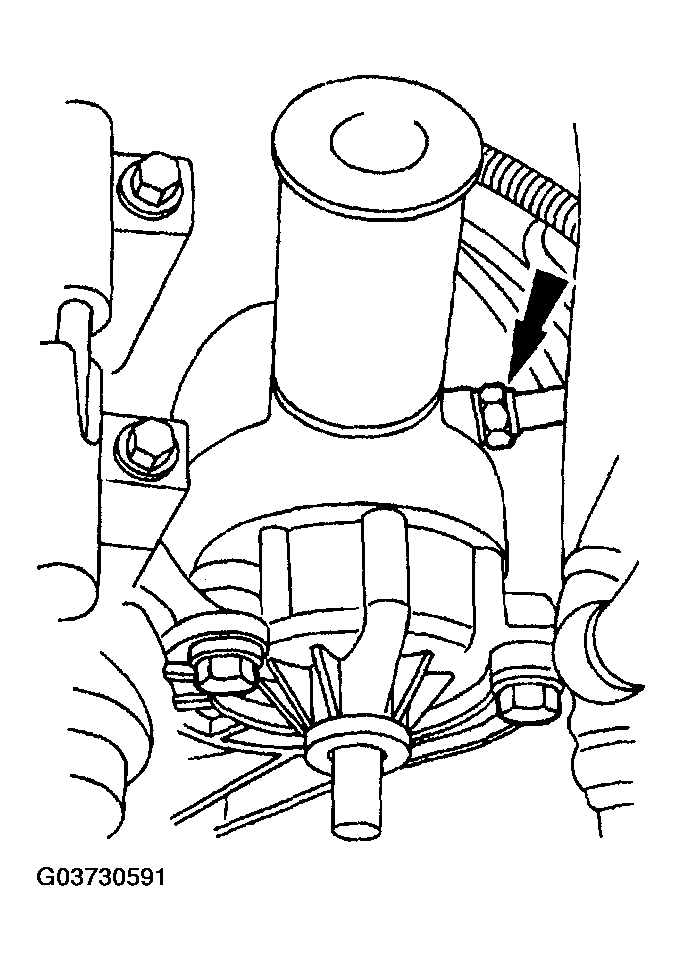

    Fig 1: Disconnecting Power Steering Pressure Hose
    G03730591Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the power steering return hose.
    Fig 2: Disconnecting Power Steering Return Hose
    G03730592Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the power steering return line hose.
  5. Remove the bolts and the power steering pump.

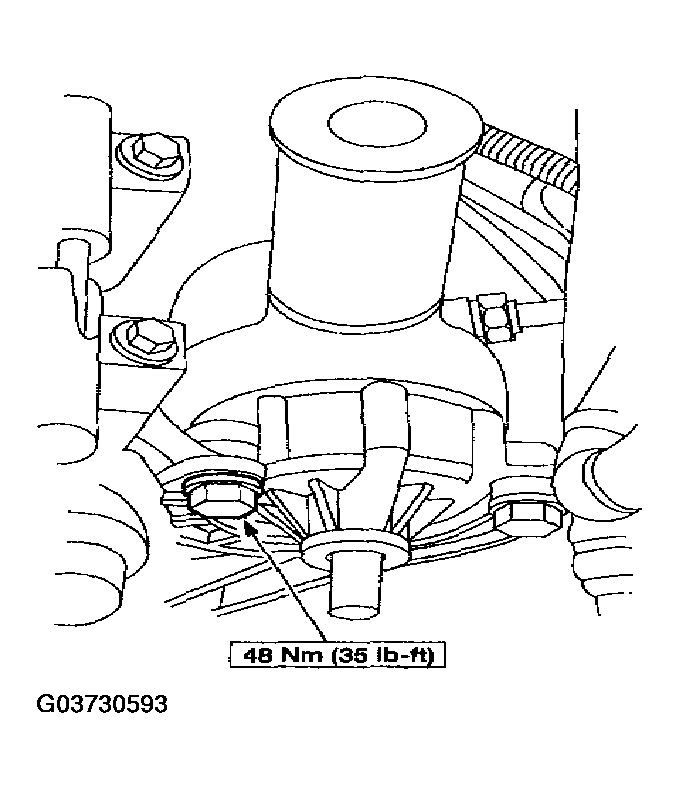

    Fig 3: Removing Power Steering Pump Bolts - With Torque Specification
    G03730593Courtesy of MAZDA MOTORS CORP.
