Front Oil Seal Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the front Oil seal using part A of the SST  303-335 (49 UN30 3335) and the SST  303-102 (49 UN01 002).
    Fig 1: Identifying SST Components
    G00993534Courtesy of MAZDA MOTORS CORP.
  2. Apply clean engine oil to the oil seal.
  3. Push the Oil seal slightly in by hand.
  4. Compress the Oil seal using the SSTs  .

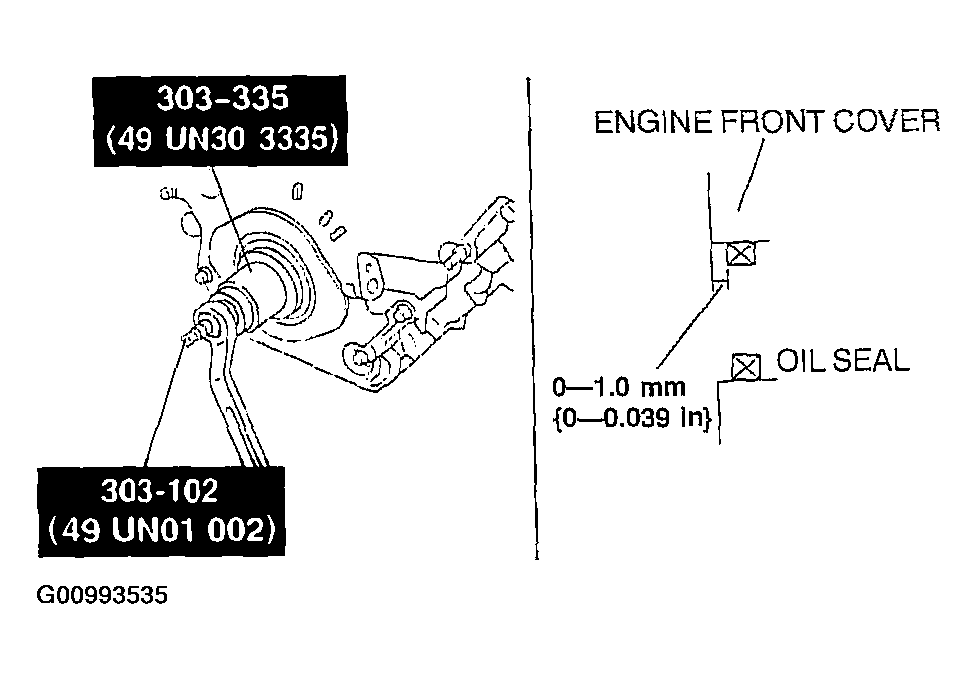

    Fig 2: Compressing Oil Seal
    G00993535Courtesy of MAZDA MOTORS CORP.
