Ignition Coil Pack Removal/Installation - 3.0L

Disconnect the ignition coil electrical connector.

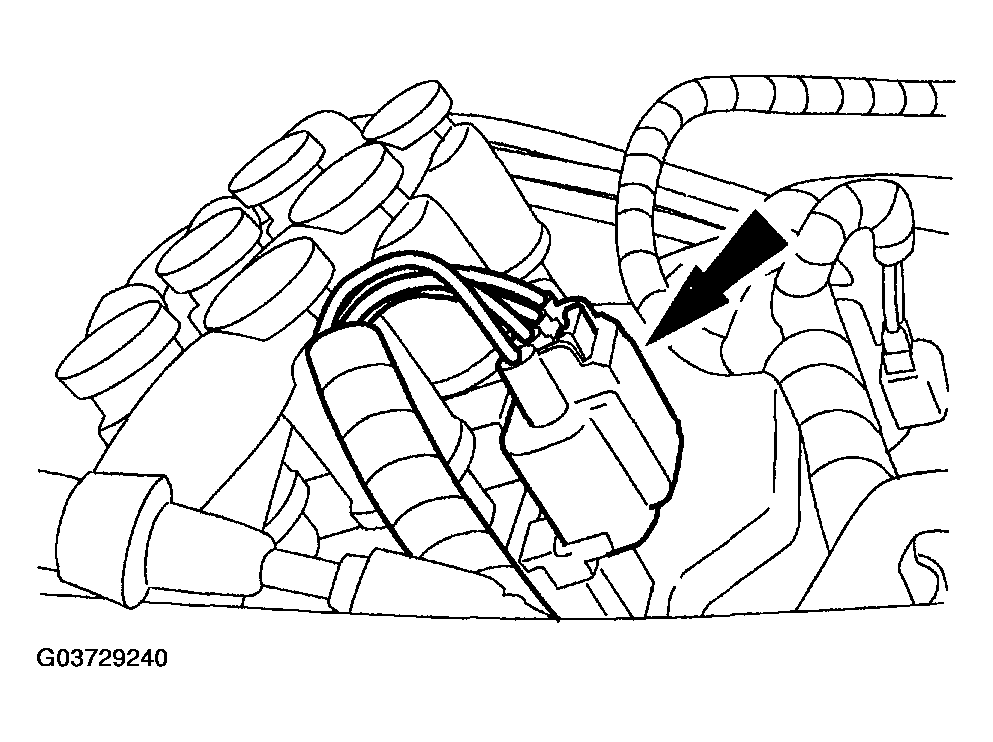

Fig 1: Disconnecting Ignition Coil Electrical Connector
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not pull on the spark plug wire as it may separate from the spark plug wire connector inside the spark plug wire boot.
Disconnect the spark plug wires by twisting while pulling upward.

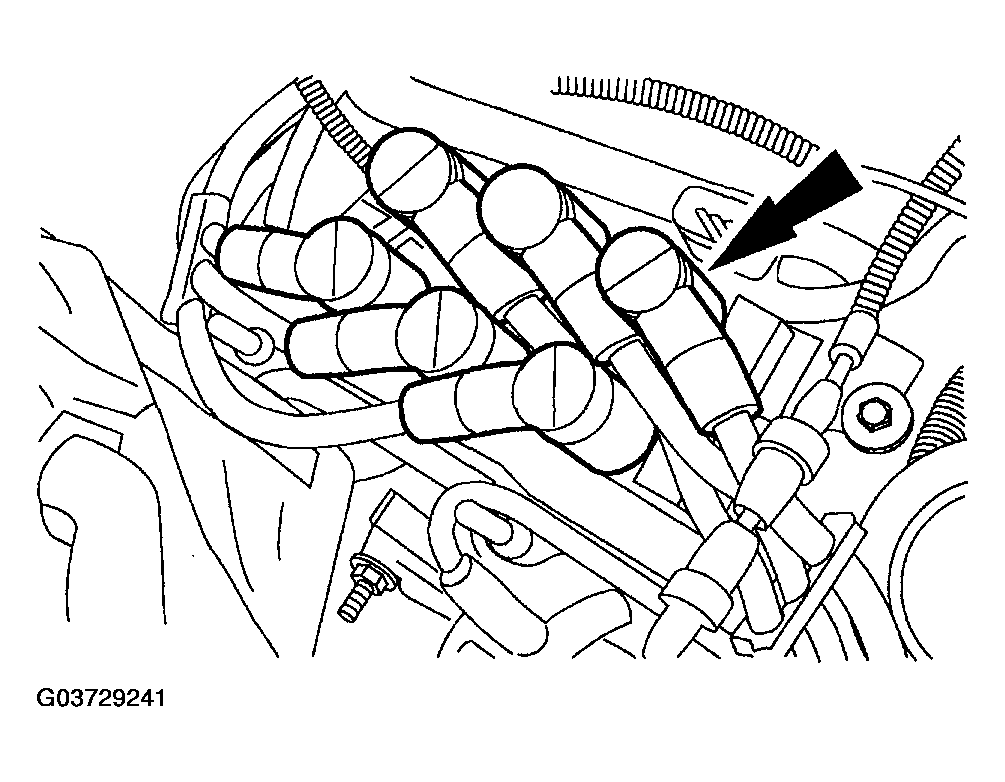

Fig 2: Disconnecting Spark Plug Wires
Courtesy of MAZDA MOTORS CORP.
Disconnect the heater hose support from the stud.

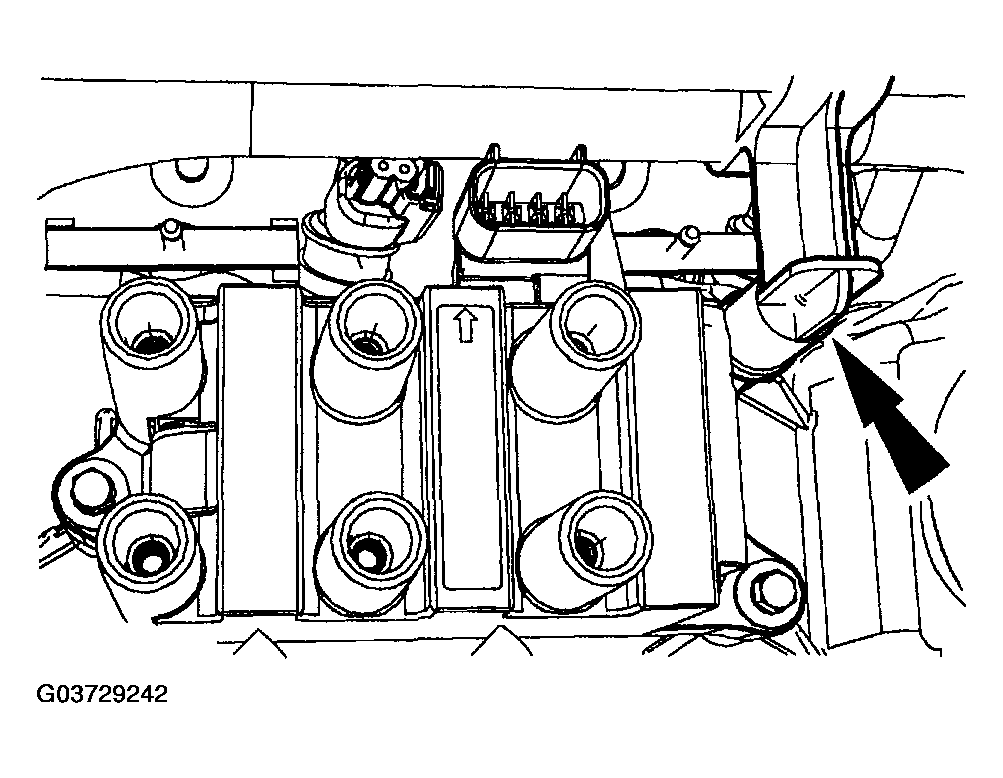

Fig 3: Disconnecting Heater Hose Support From Stud
Courtesy of MAZDA MOTORS CORP.
Remove the two bolts and one stud and the ignition coil.

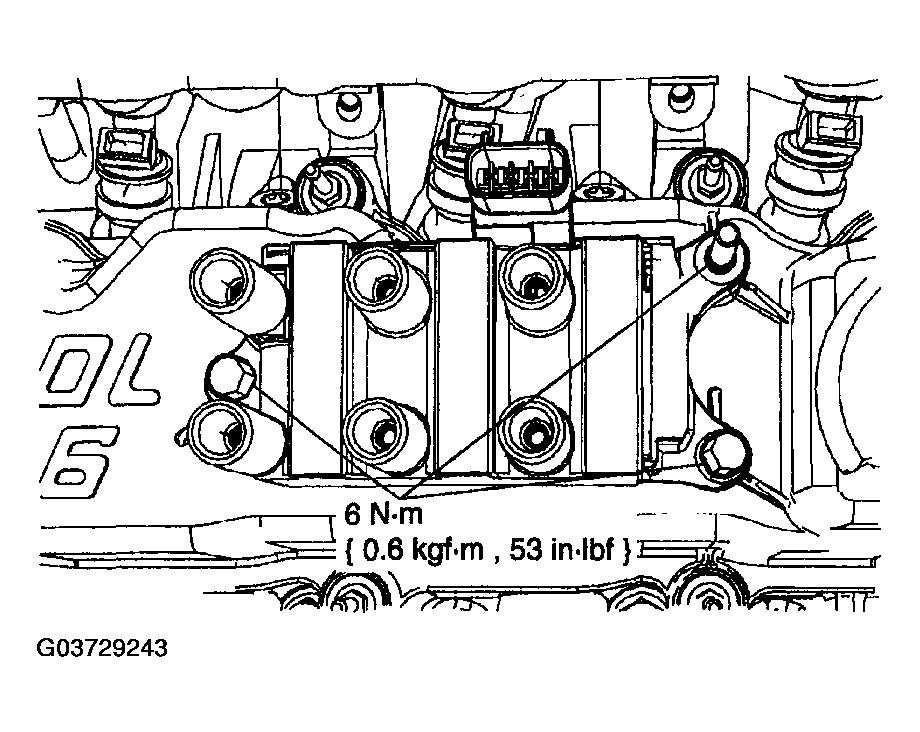

Fig 4: Removing Bolts & Stud - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Wipe the ignition coil towers with a clean cloth dampened with soap and water.
To install, reverse the removal procedure.
- Use a small, clean tool to coat the entire interior surface of the boot with silicone brake caliper grease.
