Fuel Pressure Relief Valve - 3.0L Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the pressure relief valve cap.
  3. Relieve the fuel pressure. See FUEL INSTALLATION SUPPLY MANIFOLD AND FUEL INJECTOR - 3.0L REMOVAL/INSTALLATION  .
  4. Remove the fuel pressure relief valve.
  5. Install in reverse order of removal.

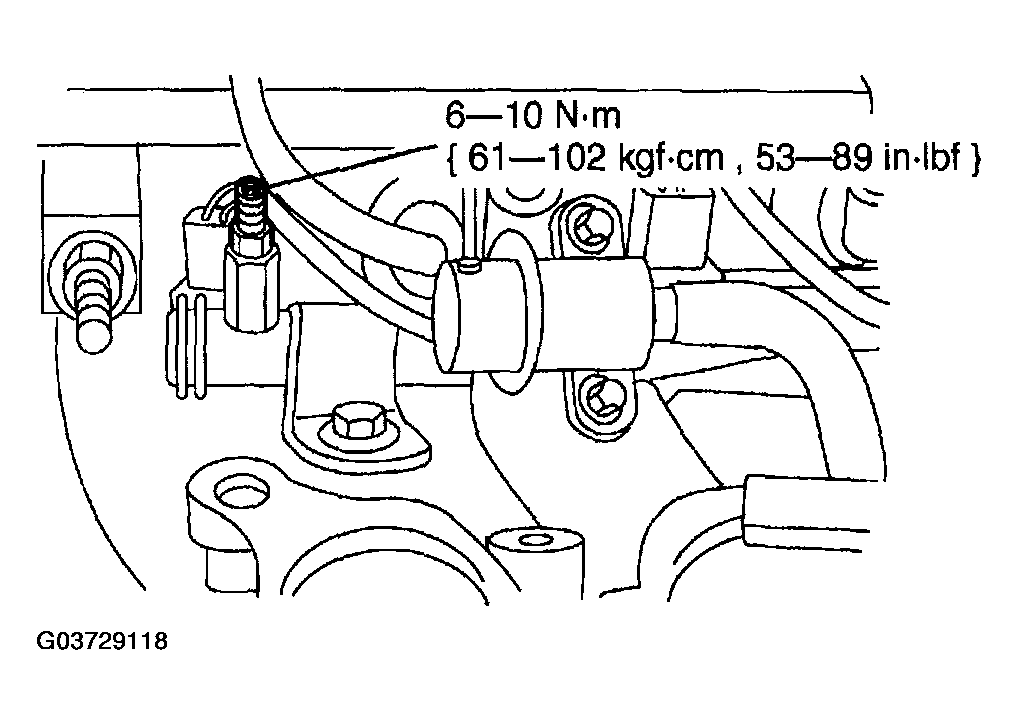

    Fig 1: Removing Fuel Pressure Relief Valve - With Torque Specifications
    G03729118Courtesy of MAZDA MOTORS CORP.
