Removal and Installation

  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle. See LIFTING .
  3. Disconnect the crankshaft position (CKP) sensor electrical connector.

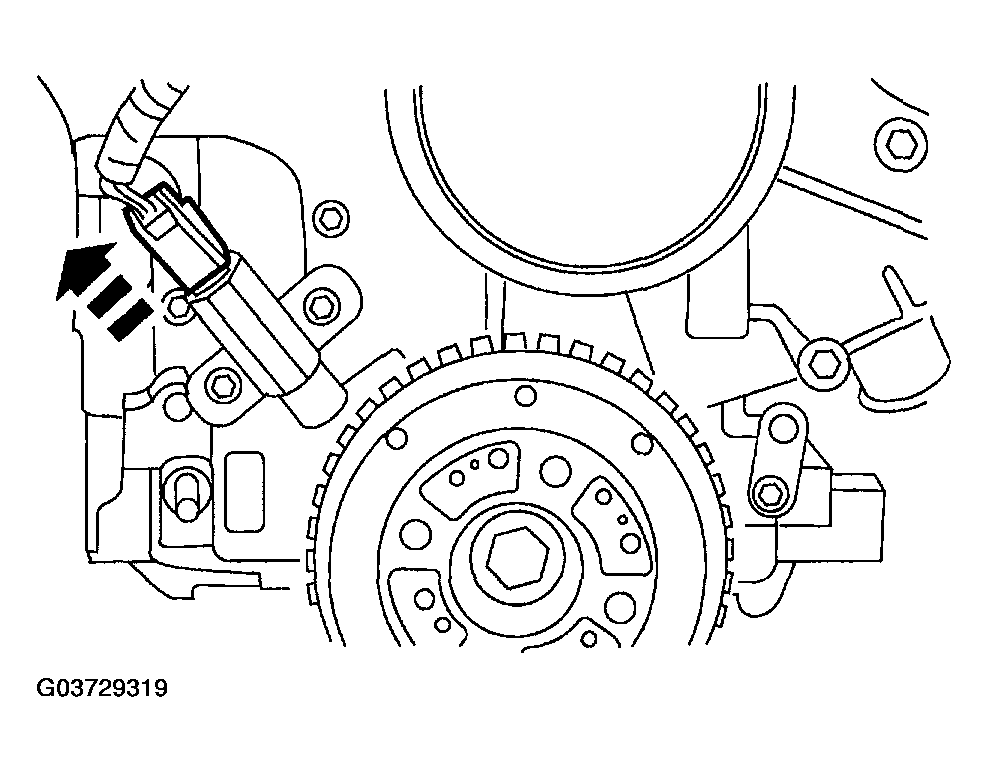

    Fig 1: Disconnecting Crankshaft Position (CKP) Sensor Electrical Connector
    G03729319Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts and the CKP sensor.

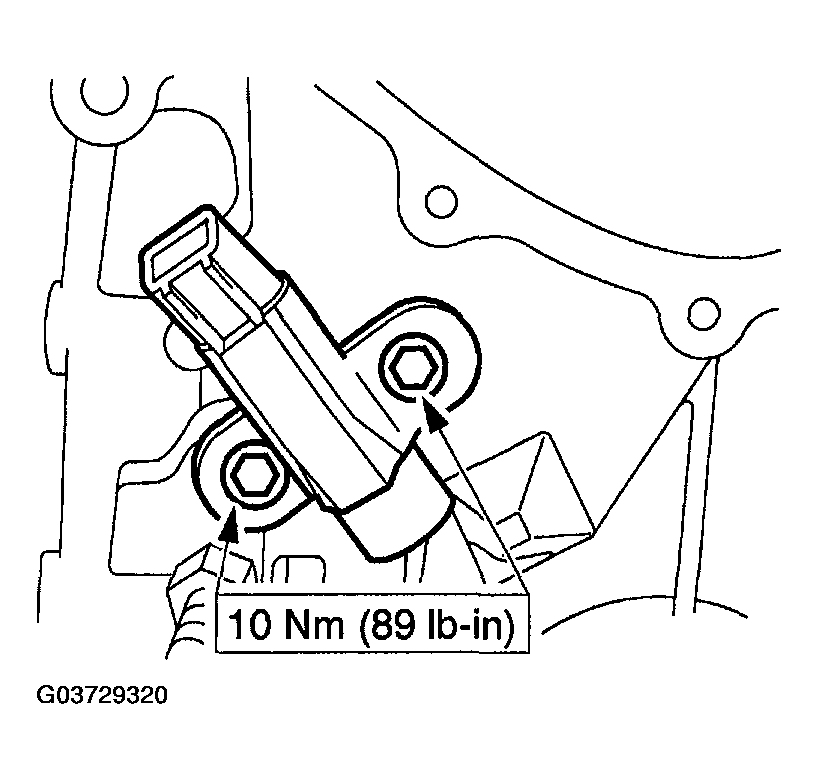

    Fig 2: Removing Bolts And CKP Sensor - With Torque Specification
    G03729320Courtesy of MAZDA MOTORS CORP.
  5. To install, reverse the removal procedure.
