Starter Motor Removal/Installation - 4.0L

WARNING:

When carrying out maintenance on the starting system be aware that heavy gauge leads are connected directly to the battery. Make sure protective caps are in place when maintenance is completed.

Disconnect the negative battery cable.
Raise vehicle and support with safety stands.
Remove the starter motor solenoid terminal cover.

Fig 1: Removing Starter Motor Solenoid Terminal Cover
Courtesy of MAZDA MOTORS CORP.

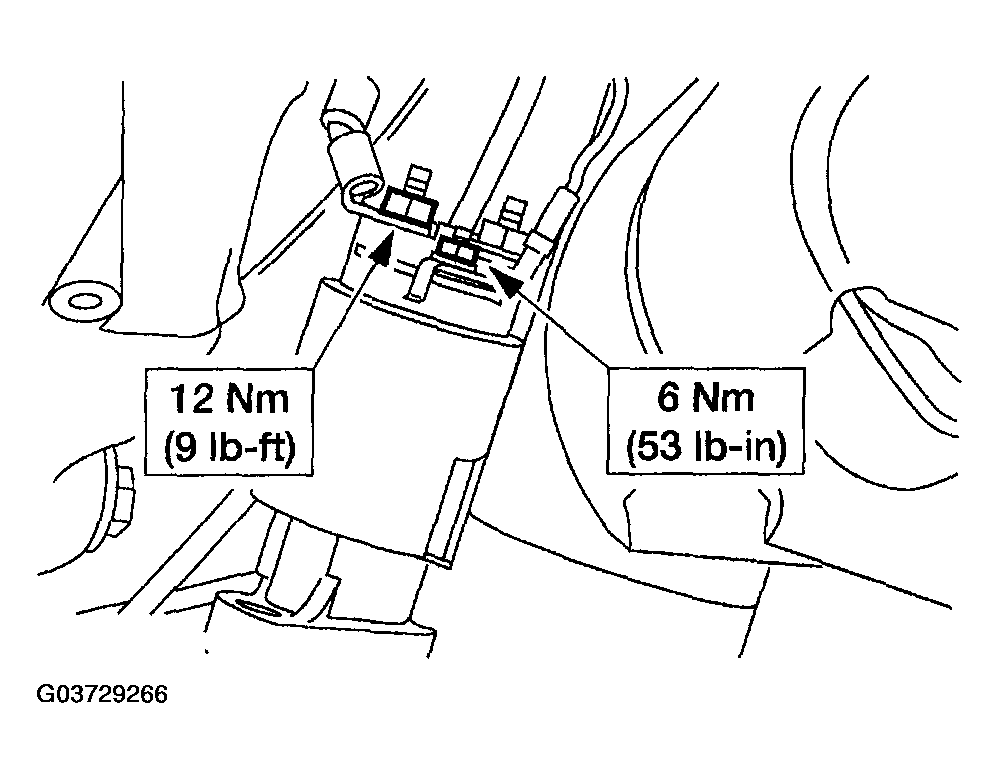

Disconnect the starter wires.
Remove the nut and the starter ground cable.

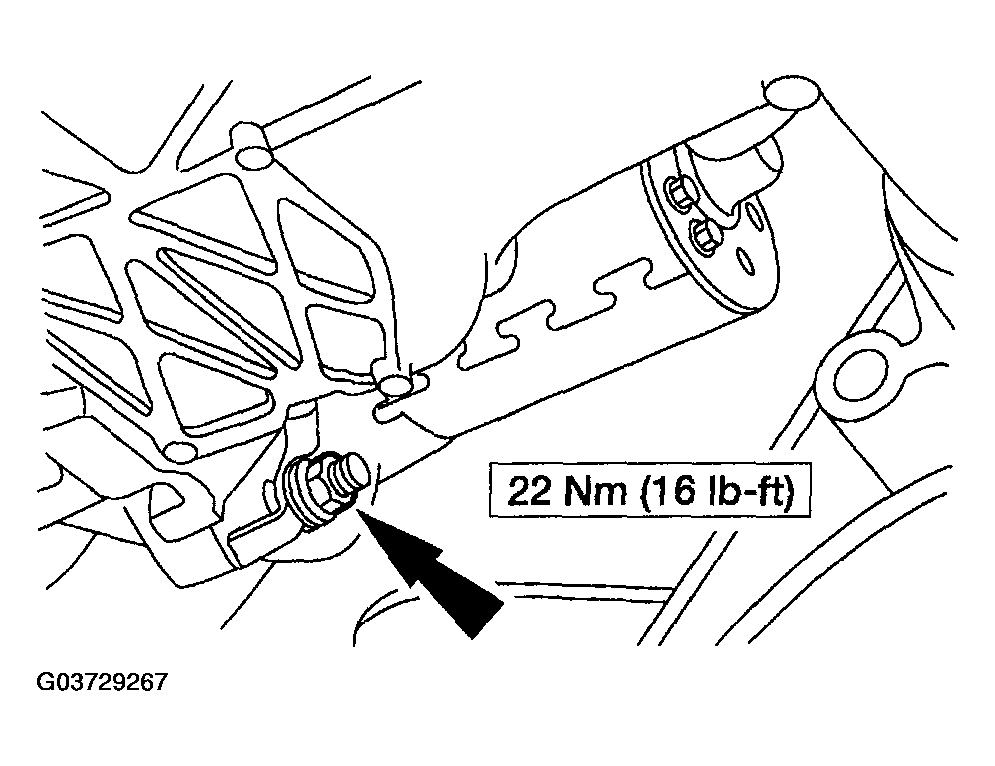

Fig 2: Removing Nut And Starter Ground Cable - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolt, the stud and the starter motor.

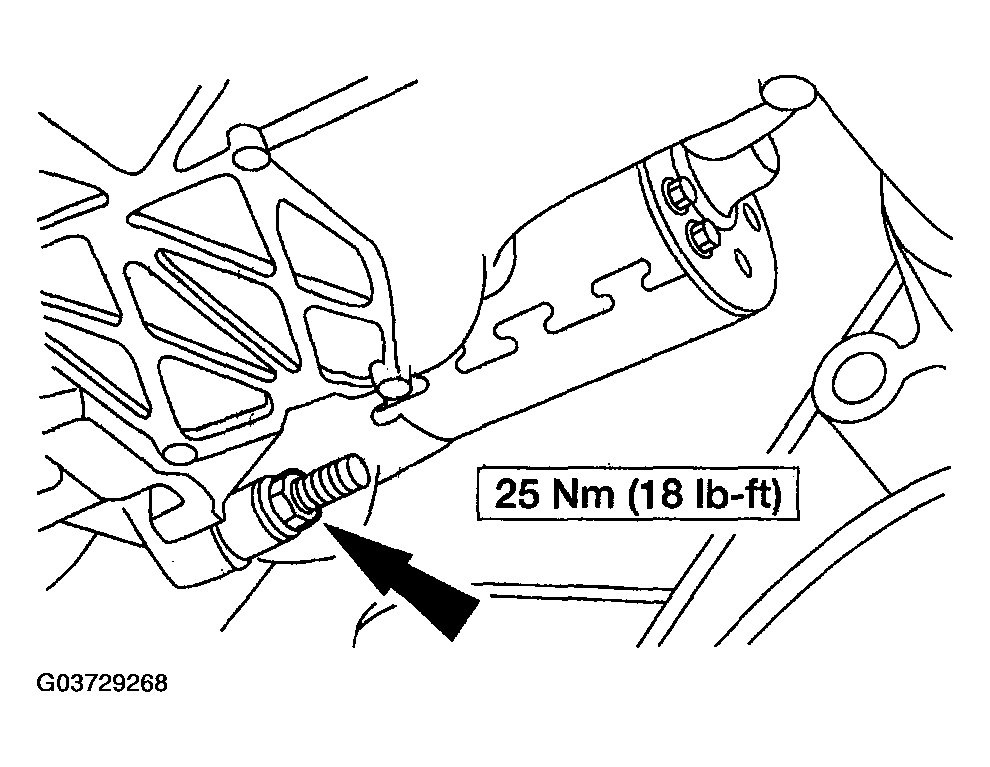

Fig 3: Removing Bolt - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.

Fig 4: Installing Bolt - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
