Starter Motor Removal/Installation - 3.0L

Disconnect the negative battery cable.
Raise vehicle and support with safety stands. See JACKING .
Remove the bolts and lower the starter motor.

Fig 1: Removing Starter Motor Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the cap.
Remove the terminal nuts and remove the starter motor.

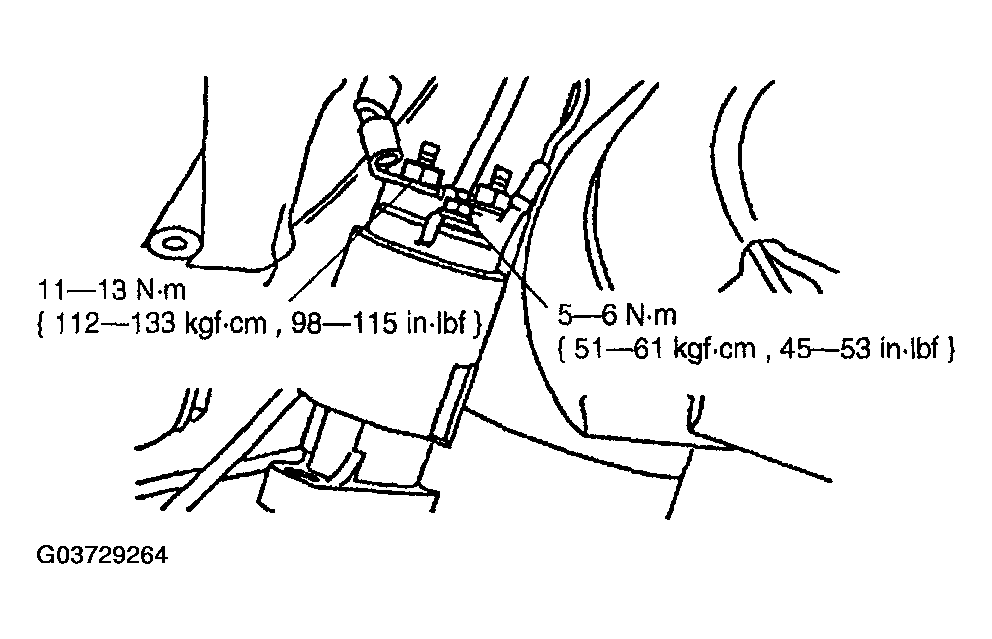

Fig 2: Removing Terminal Nuts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
To install, reverse order of removal.
