Assembly Note

Install the differential bearings
1. Position the appropriate differential bearing (RH or LH)
2. Use the appropriate press to install the differential bearing
  - Repeat for the other differential bearing.

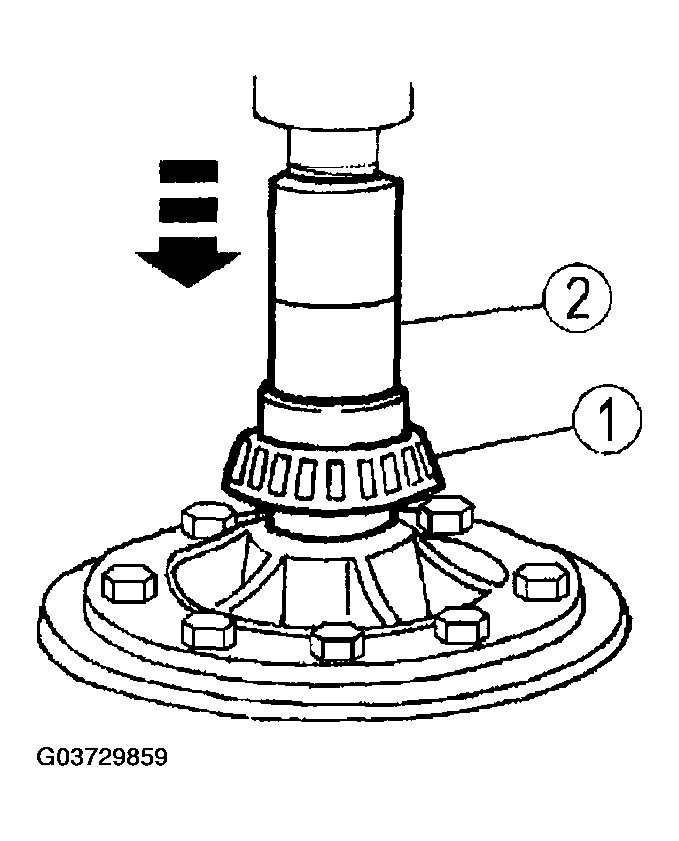

    Fig 1: Installing Differential Bearings
    Courtesy of MAZDA MOTORS CORP.
Position the differential side gear thrust washers on the differential side gears
- Use axle lubricant meeting specification API Service GL-5 to lubricate the differential side gear thrust washers and the differential side gear journals.
Position the differential side gears

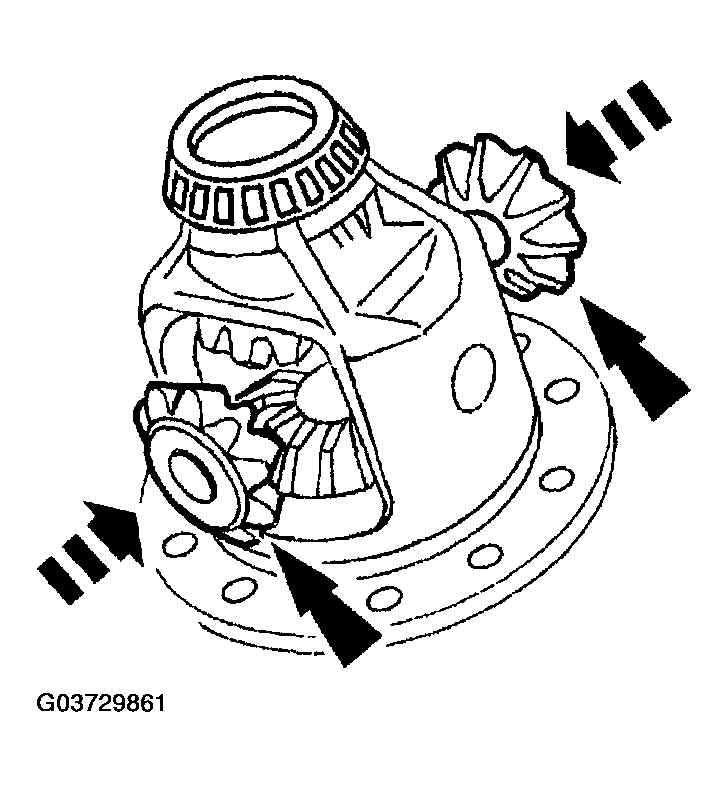

Fig 2: Positioning Differential Side Gears
Courtesy of MAZDA MOTORS CORP.
Use axle lubricant meeting specification API Service GL-5 to lubricate the differential pinion thrust washers and the differential pinion gears and assemble
Engage the differential pinion gears between the differential side gears

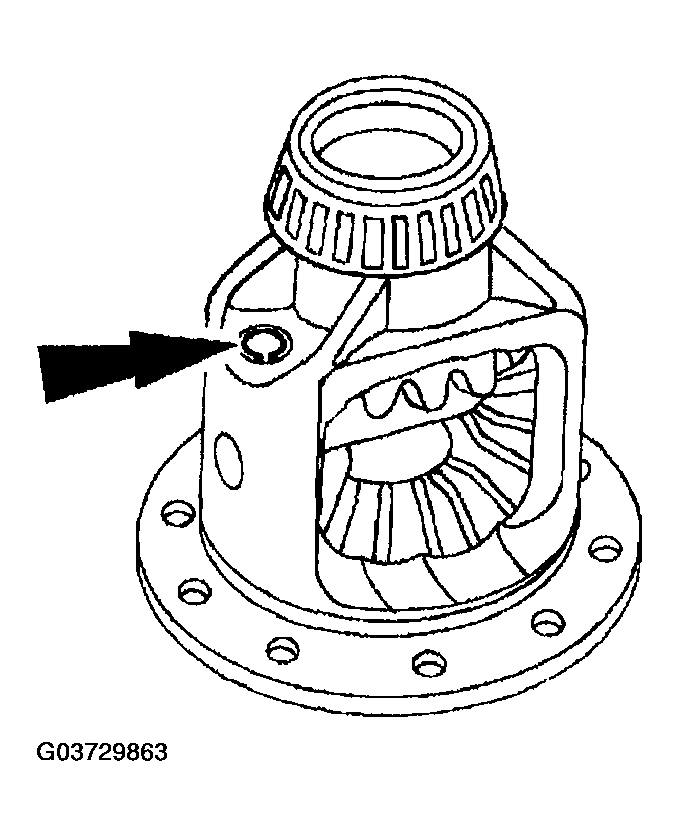

Fig 3: Engaging Differential Pinion Gears Between Differential Side Gears
Courtesy of MAZDA MOTORS CORP.
Rotate the differential pinon gears to align the differential pinion shaft bore
Insert the differential pinion shaft

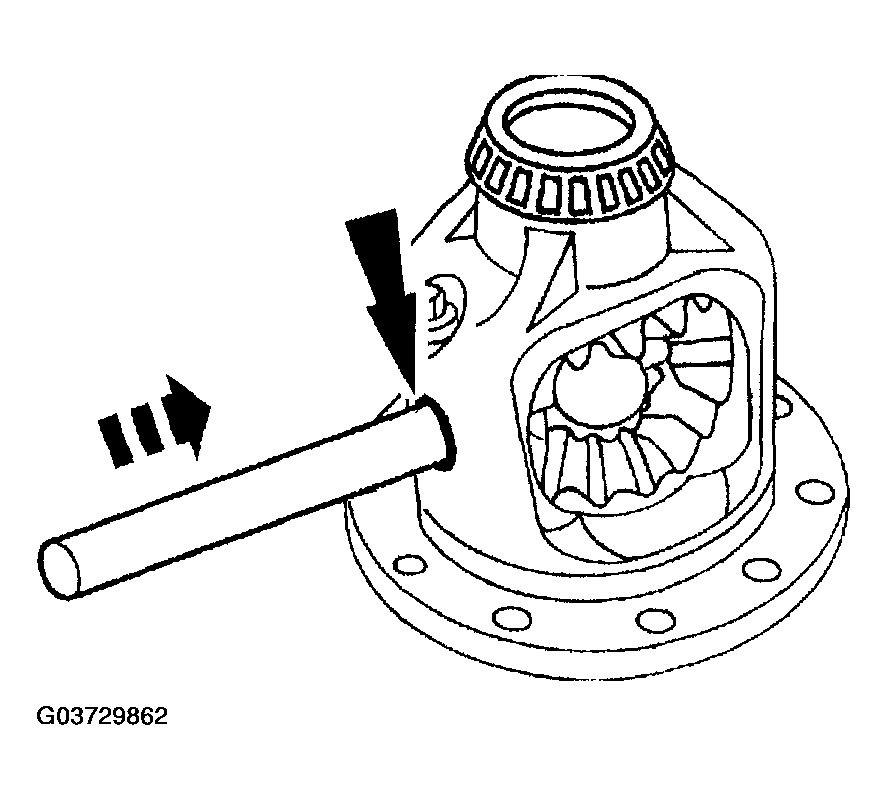

Fig 4: Inserting Differential Pinion Shaft
Courtesy of MAZDA MOTORS CORP.
Install the differential pinion shaft roll pin

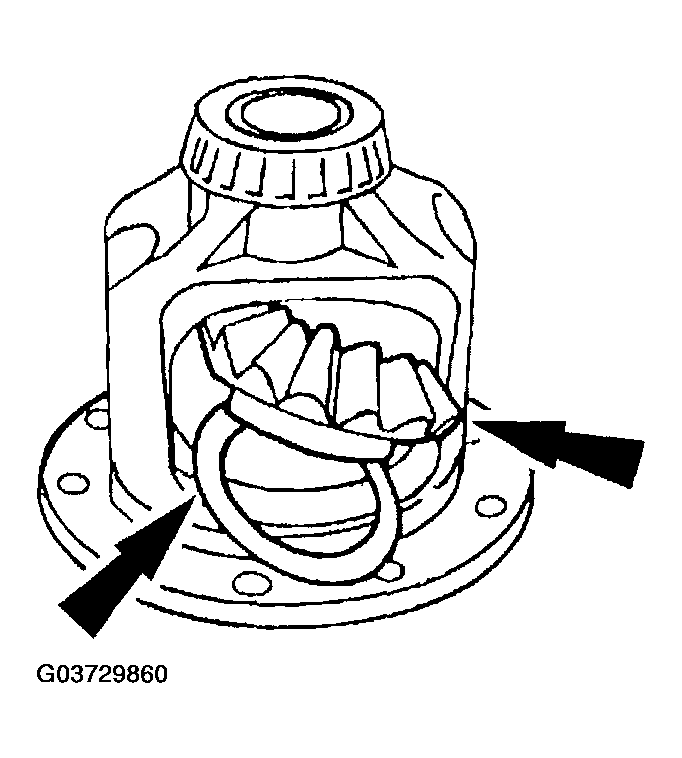

Fig 5: Installing Differential Pinion Shaft Roll Pin
Courtesy of MAZDA MOTORS CORP.
Install the ring gear
1. Position the ring gear and then start two or three ring gear bolts to align the holes in the ring gear and the differential case
  - Use an appropriate press to install the ring gear.

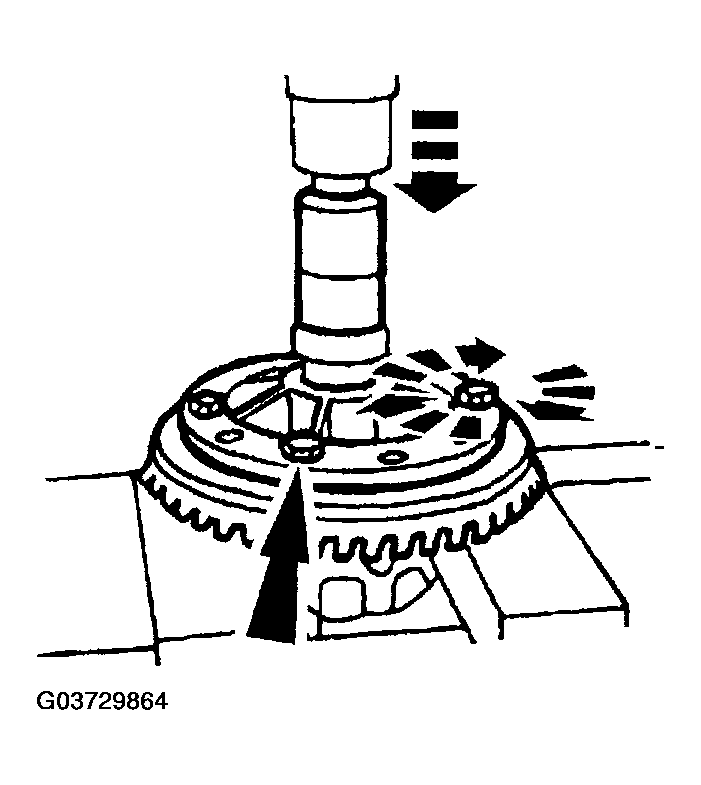

    Fig 6: Installing Ring Gear
    Courtesy of MAZDA MOTORS CORP.
Install the remaining ring gear bolts

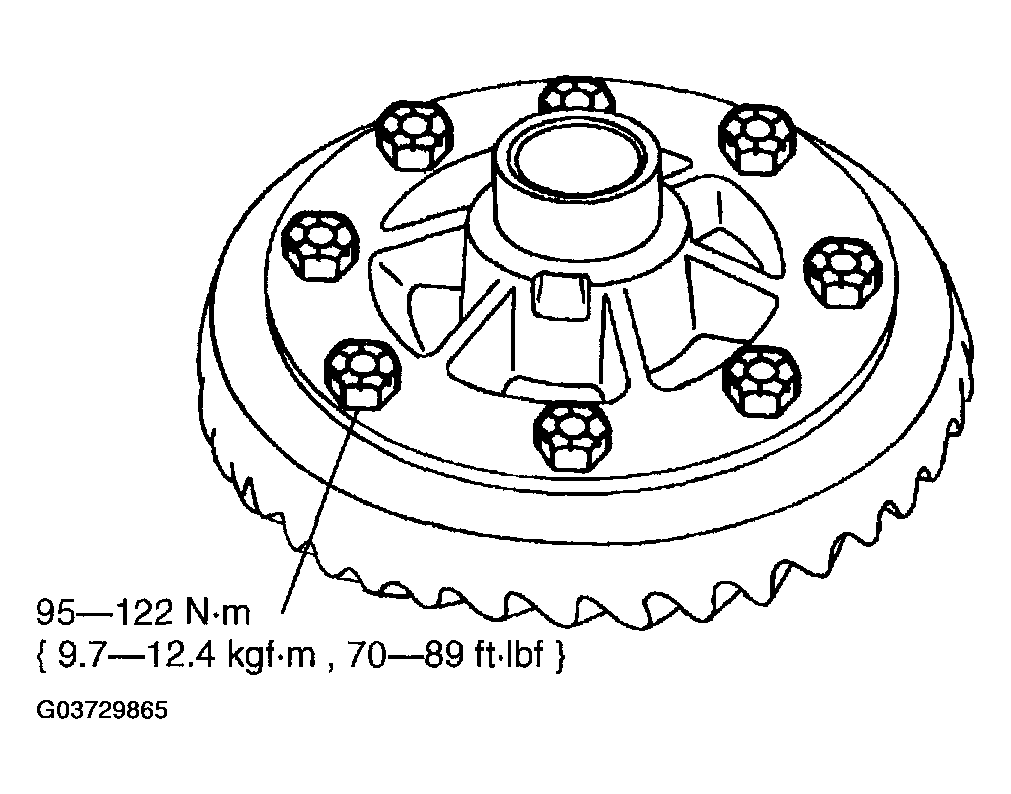

Fig 7: Installing Remaining Ring Gear Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the differential case into the front drive axle housing; See AXLE AND DIFFERENTIAL FRONT DISASSEMBLY/ASSEMBLY .
