Axle And Differential Front Disassembly/Assembly: Notes

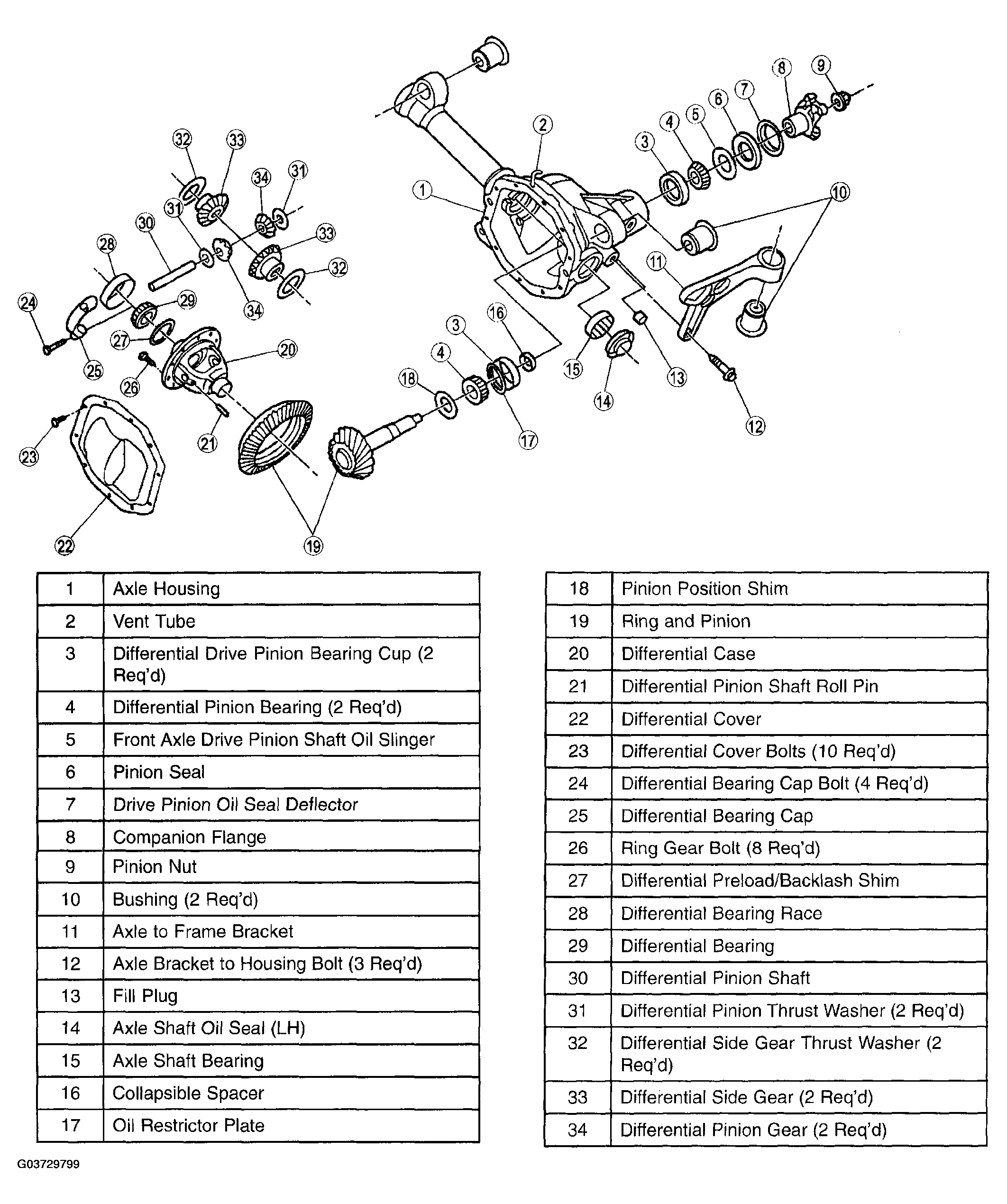

Fig 1: Exploded View Of Front Axle And Differential

G03729799

Courtesy of MAZDA MOTORS CORP.
