Front Cable Removal

NOTE:
  • Disconnect the front parking brake cable and conduit at the locating hole end of the connector.
  1. Disconnect the front parking brake cable and conduit from the parking brake intermediate cable at the locating hole end of the connector.
    Fig 1: Disconnecting Front Parking Brake Cable
    G03730052Courtesy of MAZDA MOTORS CORP.
  2. Compress the retainer (1) from the front parking brake cable and conduit from the bracket.
  3. Remove the front parking brake cable and conduit (2) from the bracket.

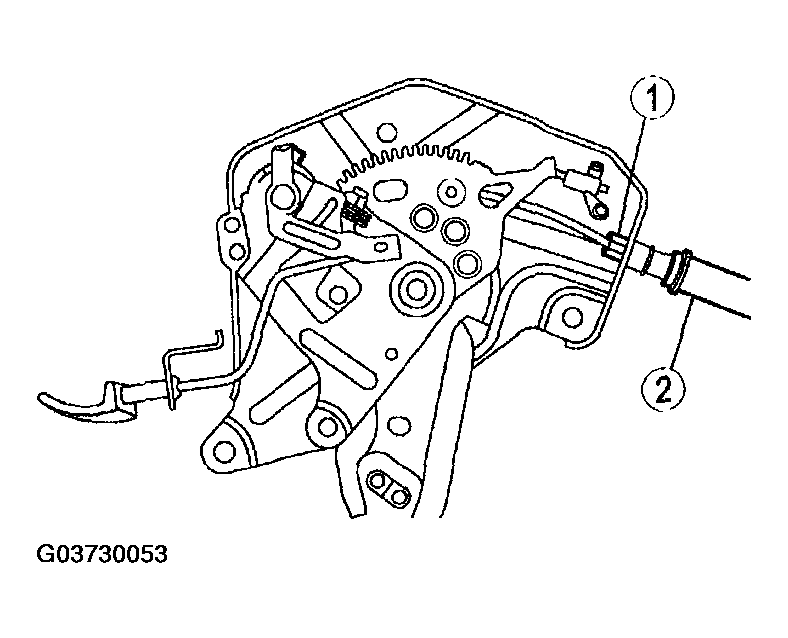

    Fig 2: Removing Front Parking Brake Cable And Conduit From Bracket
    G03730053Courtesy of MAZDA MOTORS CORP.
