Disc Brake Front, Removal/Installation: Notes

  1. Raise and support vehicle.
  2. Remove tire and wheel assembly.
  3. Disconnect brake hose.
  4. Remove in order shown in table.

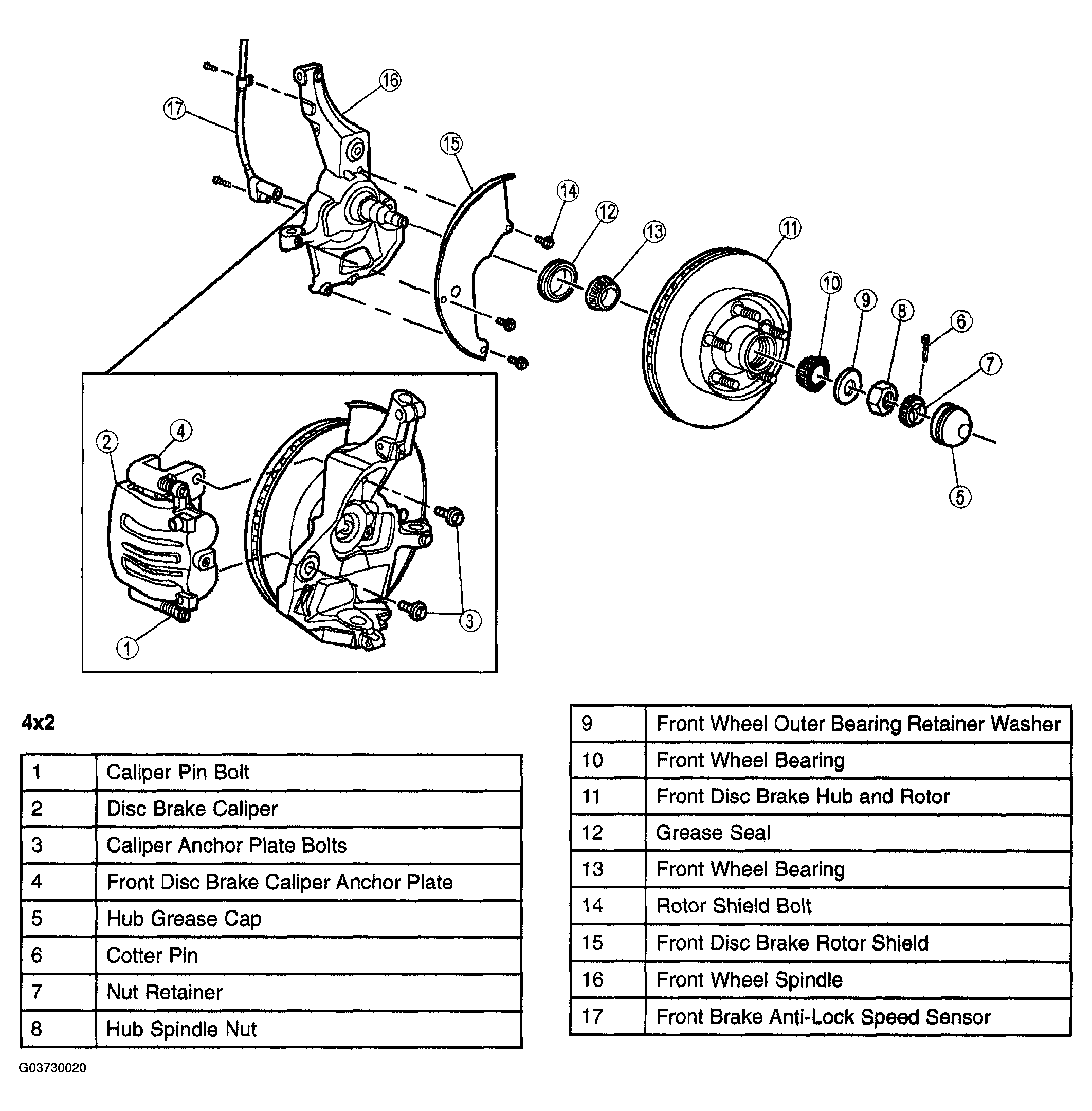

    Fig 1: Removing Front Disc Brake
    G03730020Courtesy of MAZDA MOTORS CORP.
  5. Install in reverse order of removal.
  6. Bleed brake system.
  7. Inspect system operation.

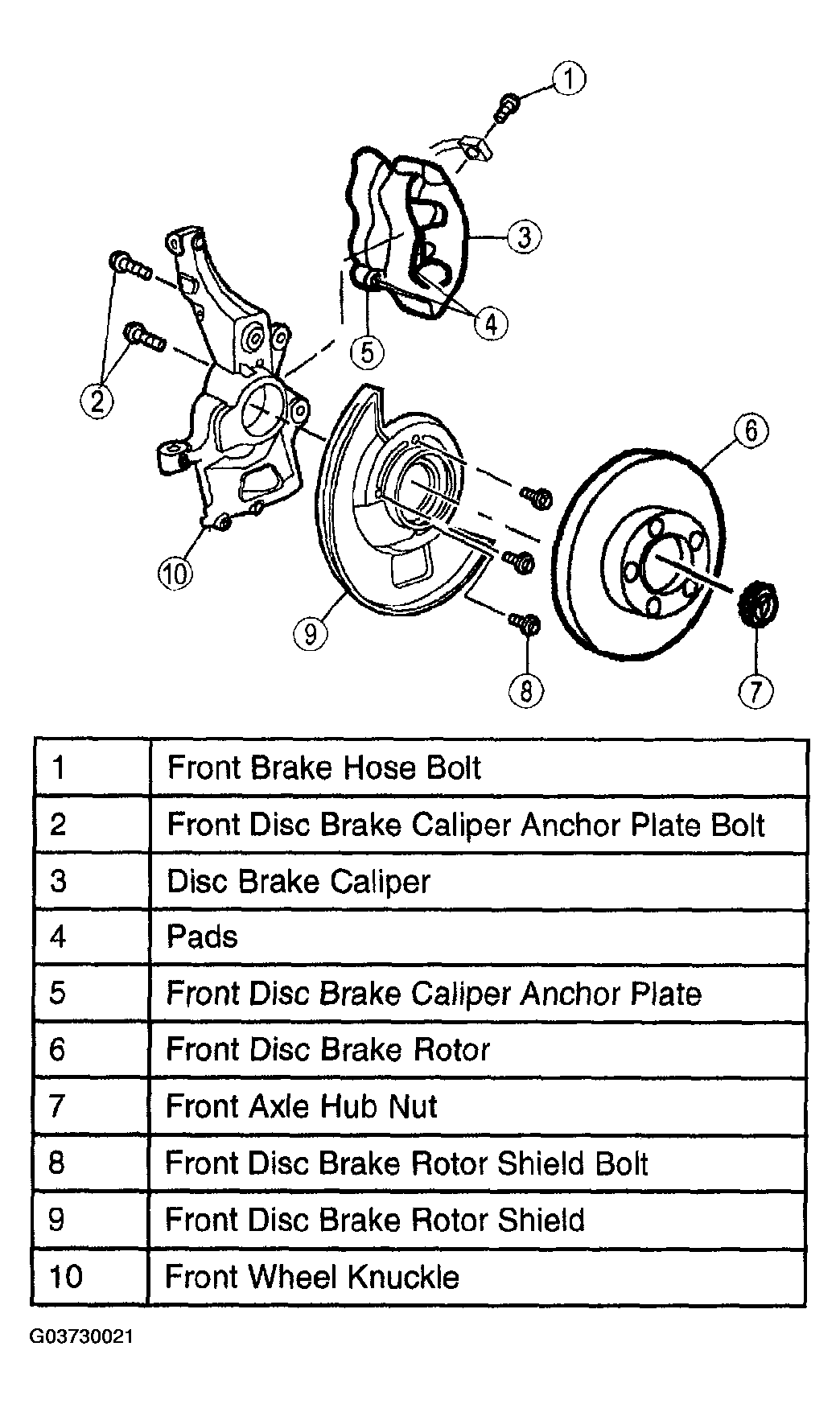

    Fig 2: Exploded View Of Disc Brake Front (4x4)
    G03730021Courtesy of MAZDA MOTORS CORP.
