Door Disarm Switch Removal/Installation

Remove the front door trim panel. See DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .
Position the watershield aside.
Remove the door disarm switch.
1. Remove the E-clip.
2. Remove the door lock rod actuator.
3. Disconnect the electrical connector.

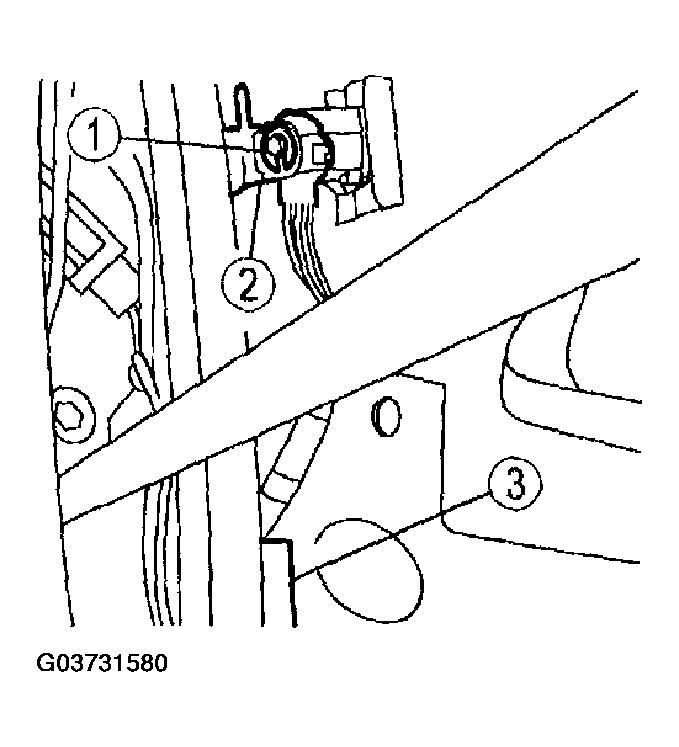

  Fig 1: Removing Door Disarm Switch
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - The door disarm switch locator mark must be in the down position prior to installation.

    Fig 2: Identifying Door Disarm Switch Locator Mark
    Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
