4.0L engine

Remove the bolts and the accelerator control splash shield.

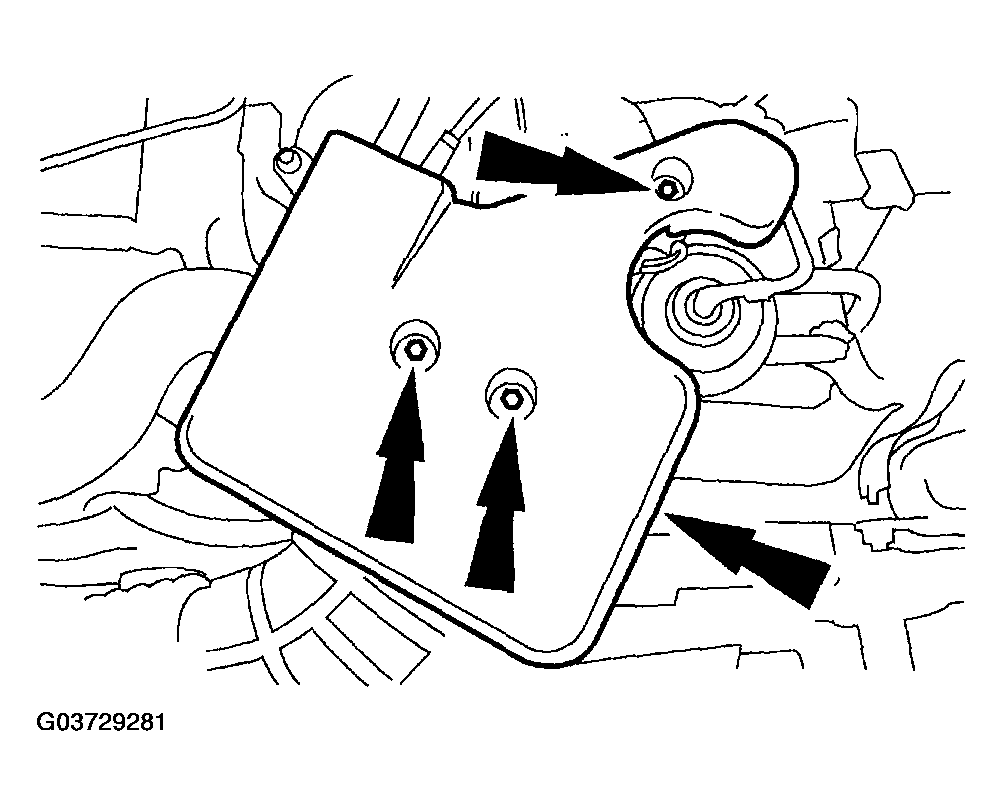

Fig 1: Removing Bolts And Accelerator Control Splash Shield (4.0L Engine)
Courtesy of MAZDA MOTORS CORP.
Separate the cruise control cable from the intake manifold.
- Disconnect the cable from the throttle lever.
- Press the locking tabs and separate the cruise control cable from the intake manifold.

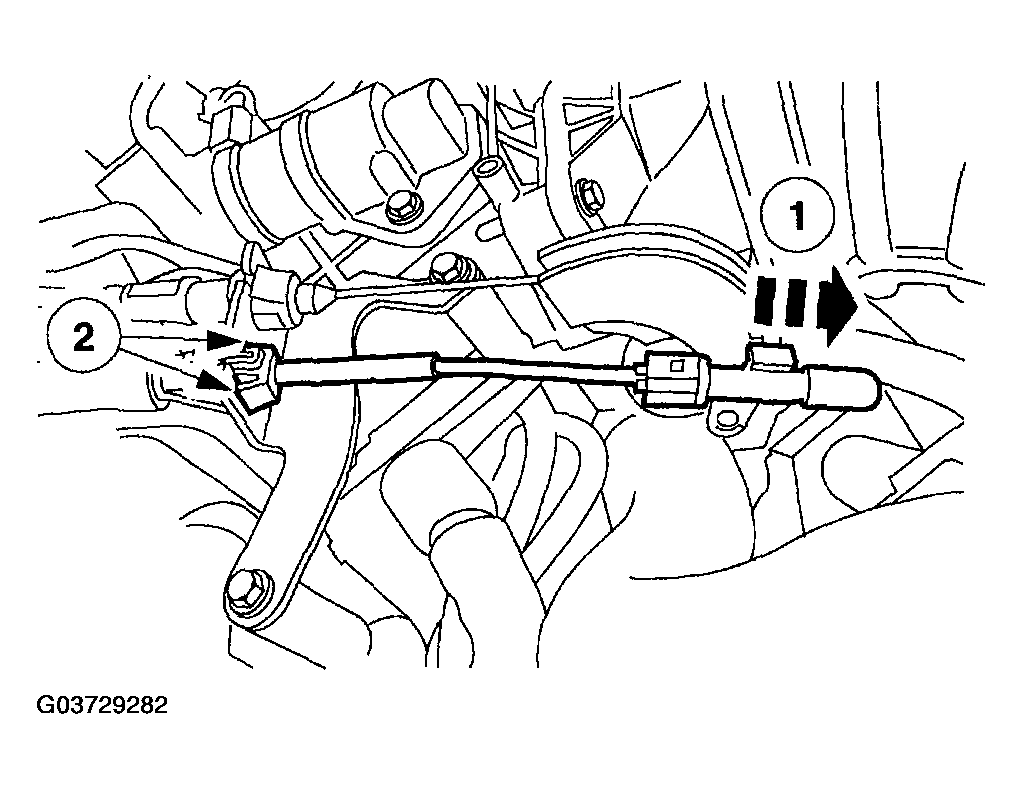

Fig 2: Separating Cruise Control Cable From Intake Manifold
Courtesy of MAZDA MOTORS CORP.
