Four-Wheel Drive Control Module Connector End View (C281a)

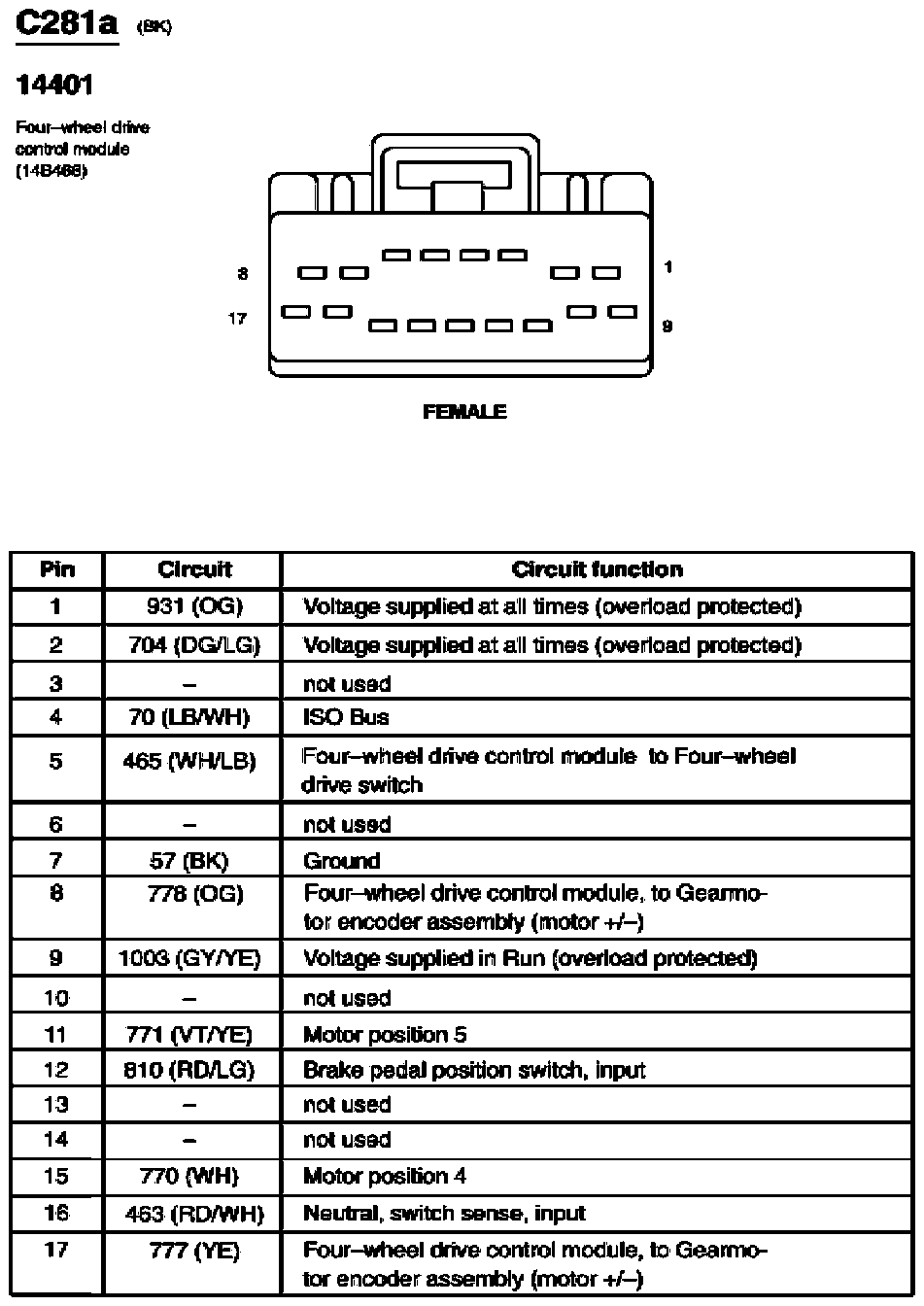

Fig 1: Four-Wheel Drive Control Module Connector End View (C281a)

G07843213

Courtesy of FORD MOTOR CO.
