Sliding Door Upper Frame Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door garnish. (See SLIDING DOOR GARNISH REMOVAL/INSTALLATION .)
  2. Remove the fastener.
  3. Pull the sliding door upper frame toward you, then disengage clips A from the body, and remove the sliding door upper frame.

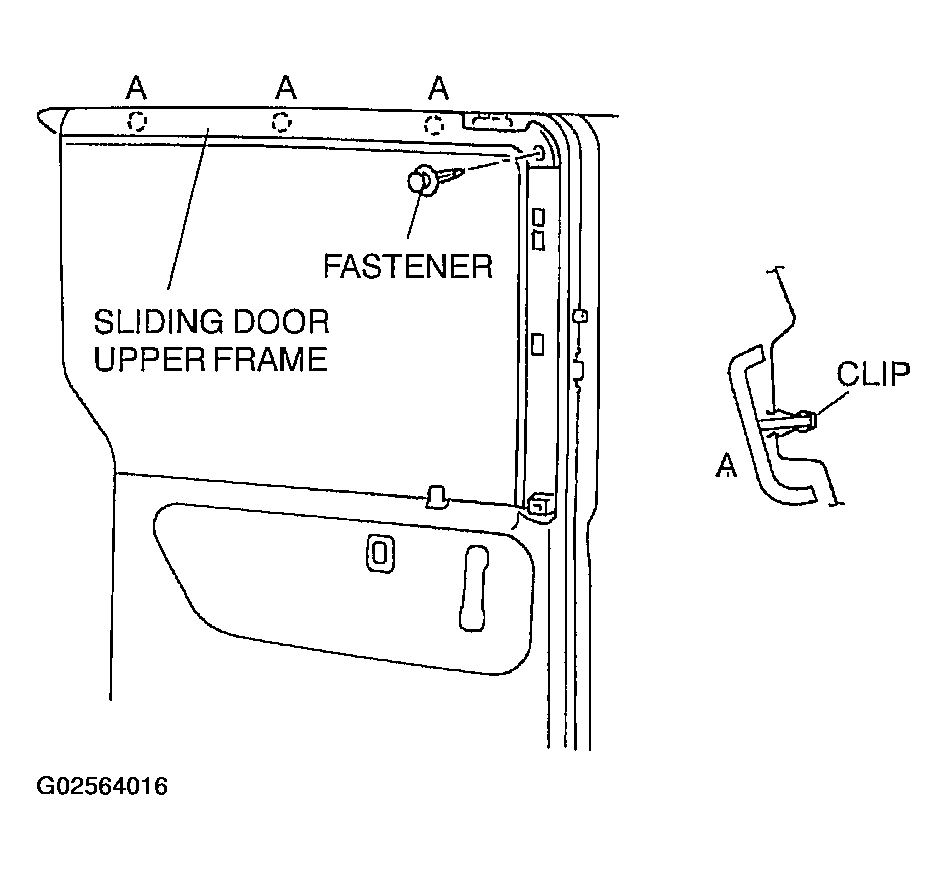

    Fig 1: Locating Sliding Door Upper Frame Clips & Fastener
    G02564016Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
