Rear Side Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Turn the weatherstrip over (liftgate side and sliding door side).
  3. Remove the mat set end plate.
  4. Remove the rear scuff plate.
  5. Pull the cup holder upward, then disengage clips A and pin B from the rear side trim, and remove the cup holder (RH only).
    Fig 1: Locating Rear Side Trim Clip & Pin
    G02564025Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts and fastener.
  7. Remove the tab G by inserting a tape-wrapped screwdriver between the rear side trim and the armrest (vehicles with PSD system).
  8. Pull the rear side trim toward you, then disengage clips C, pin D, tabs E and F from the body.
  9. Disconnect the rear climate control unit connectors and rear tweeter connectors (vehicles with rear tweeter).
  10. Remove the rear side trim.

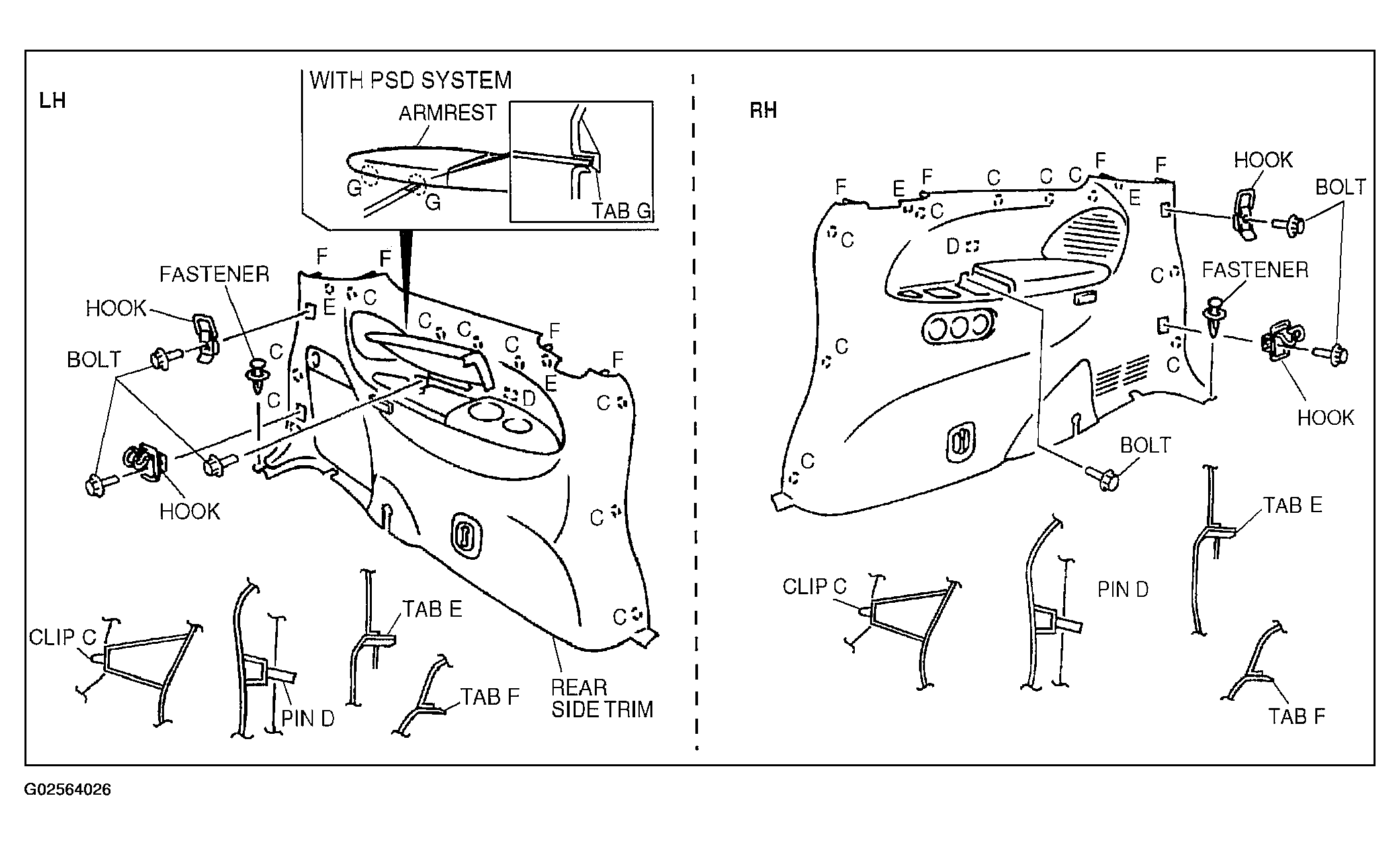

    Fig 2: Removing/Installing Rear Side Trim
    G02564026Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
