Head Impact Pad Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
  2. Remove the fastener (rear side only).
  3. Pull the head impact pad toward you, then disengage clips A and B from the body, and remove the head impact pad.

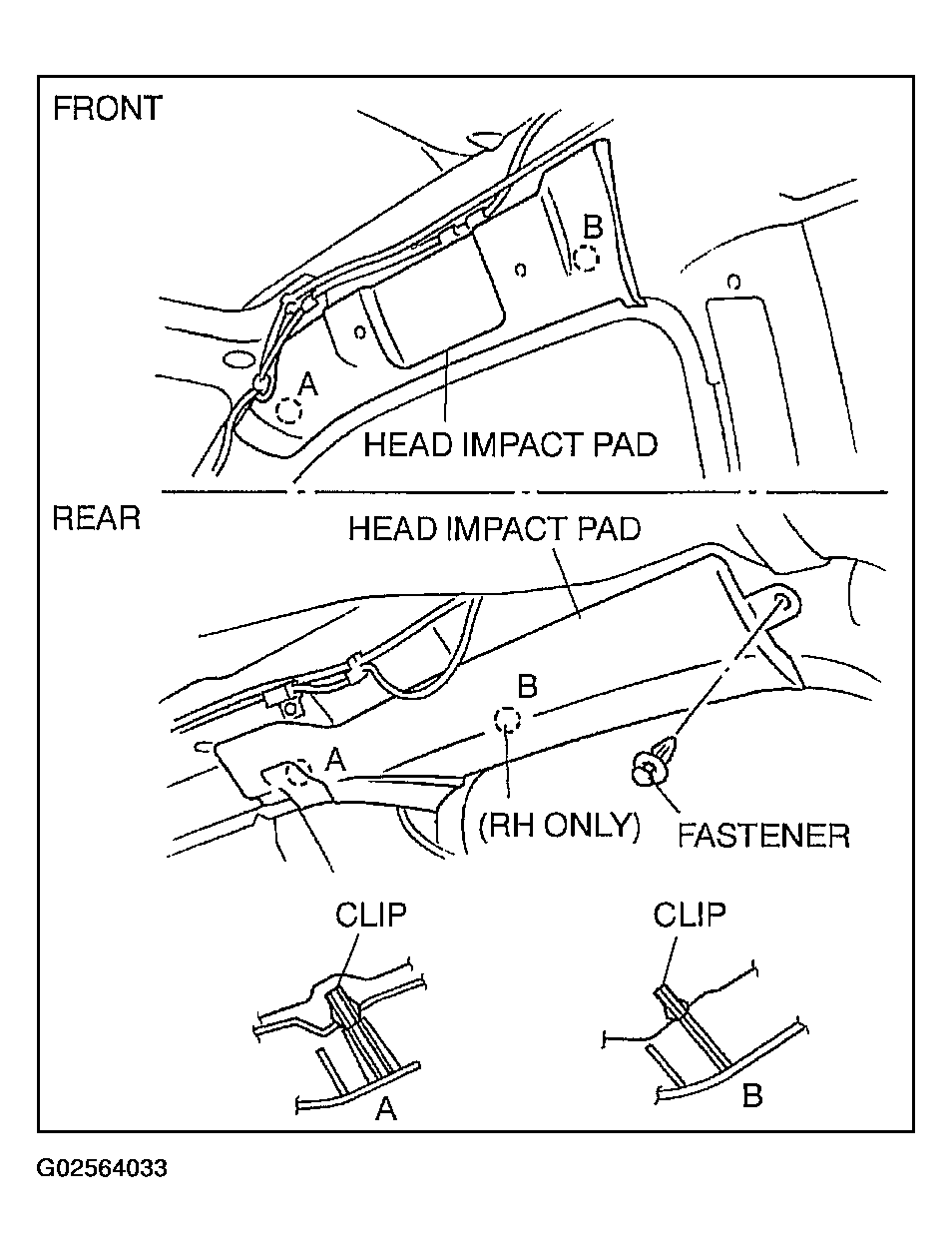

    Fig 1: Removing/Installing Head Impact Pad
    G02564033Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
