Windshield Washer Relay Connector End View (C1004)

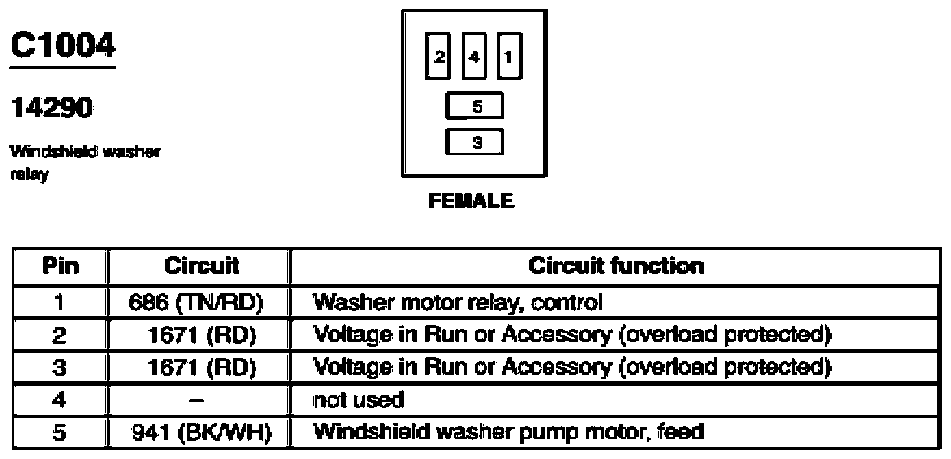

Fig 1: Windshield Washer Relay Connector End View (C1004)

G07843270

Courtesy of FORD MOTOR CO.
