Wheel Speed Sensor, Left Front Connector End View (C150)

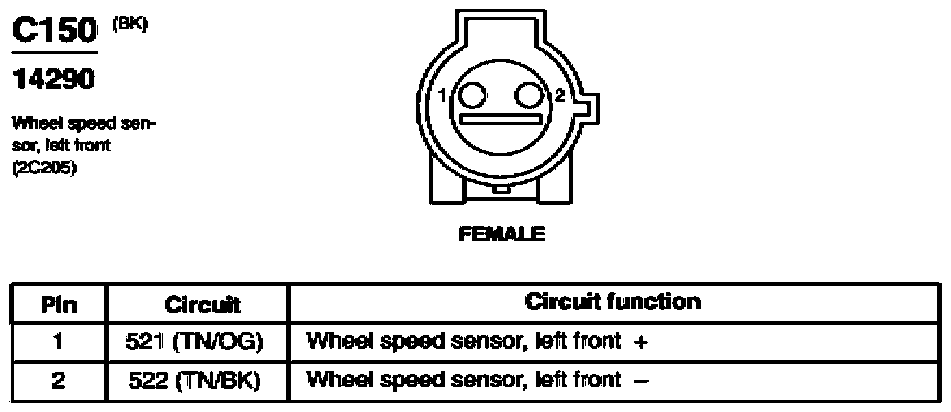

Fig 1: Wheel Speed Sensor, Left Front Connector End View (C150)

G07843171

Courtesy of FORD MOTOR CO.
