Home >> Mazda >> 2005 >> B2300 Standard >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Indicator Flasher Relay Connector End View (C2047)

Indicator Flasher Relay Connector End View (C2047)

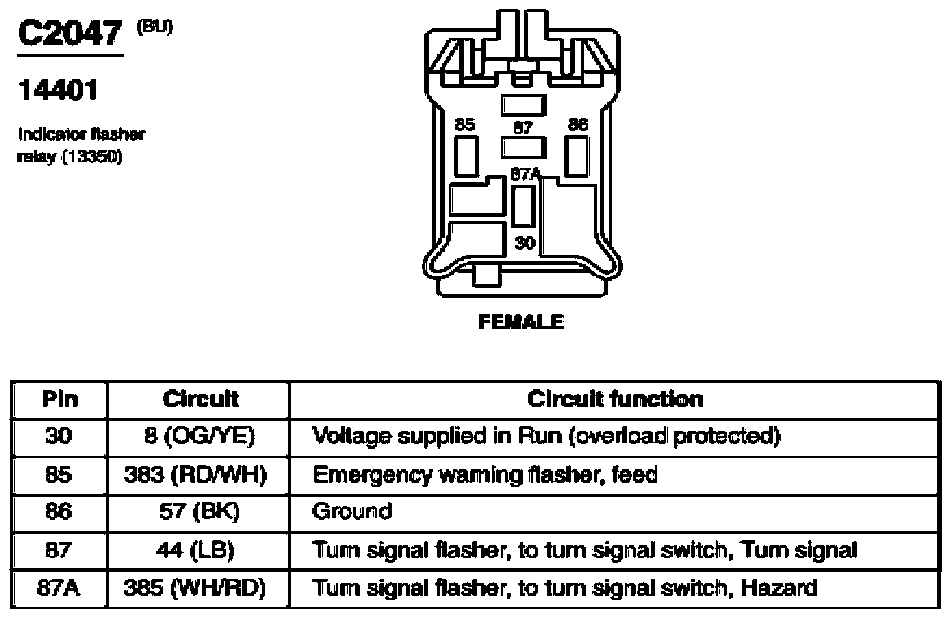

Fig 1: Indicator Flasher Relay Connector End View (C2047)

G07843320

Courtesy of FORD MOTOR CO.
