Ignition Switch Connector End View (C250)

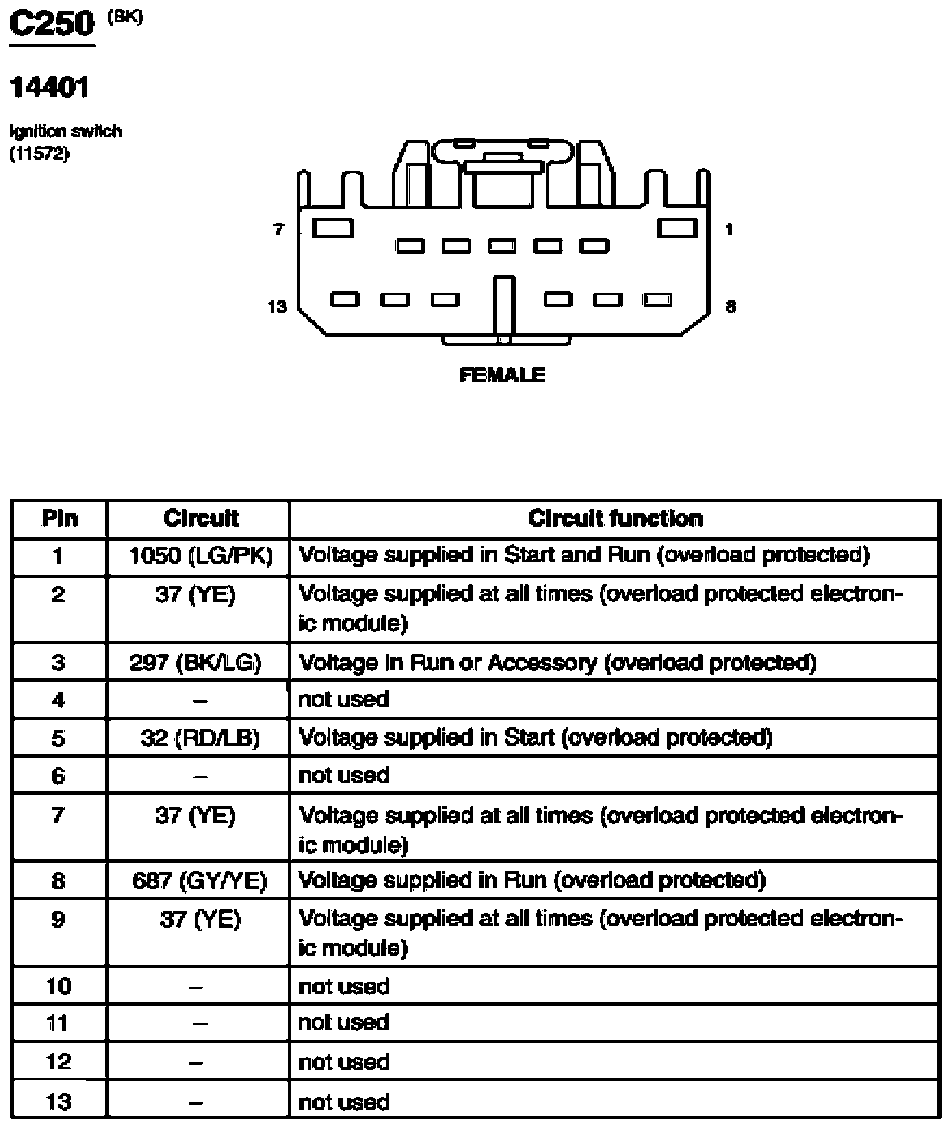

Fig 1: Ignition Switch Connector End View (C250)

G07843207

Courtesy of FORD MOTOR CO.
