Brake Fluid Level Switch Connector End View (C124)

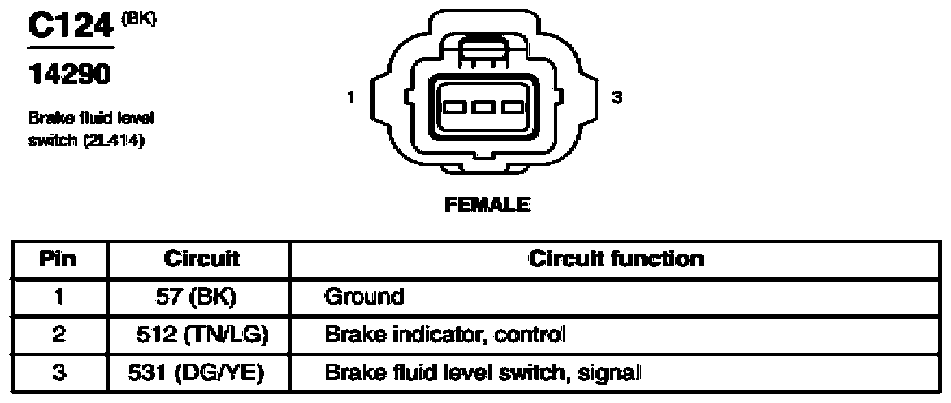

Fig 1: Brake Fluid Level Switch Connector End View (C124)

G07843164

Courtesy of FORD MOTOR CO.
