Front Door Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable if equipped with power window.
  2. Remove the inner garnish.
  3. Remove the regulator handle if equipped. (See REGULATOR HANDLE REMOVAL .) (See REGULATOR HANDLE INSTALLATION .)
  4. Remove the fasteners.

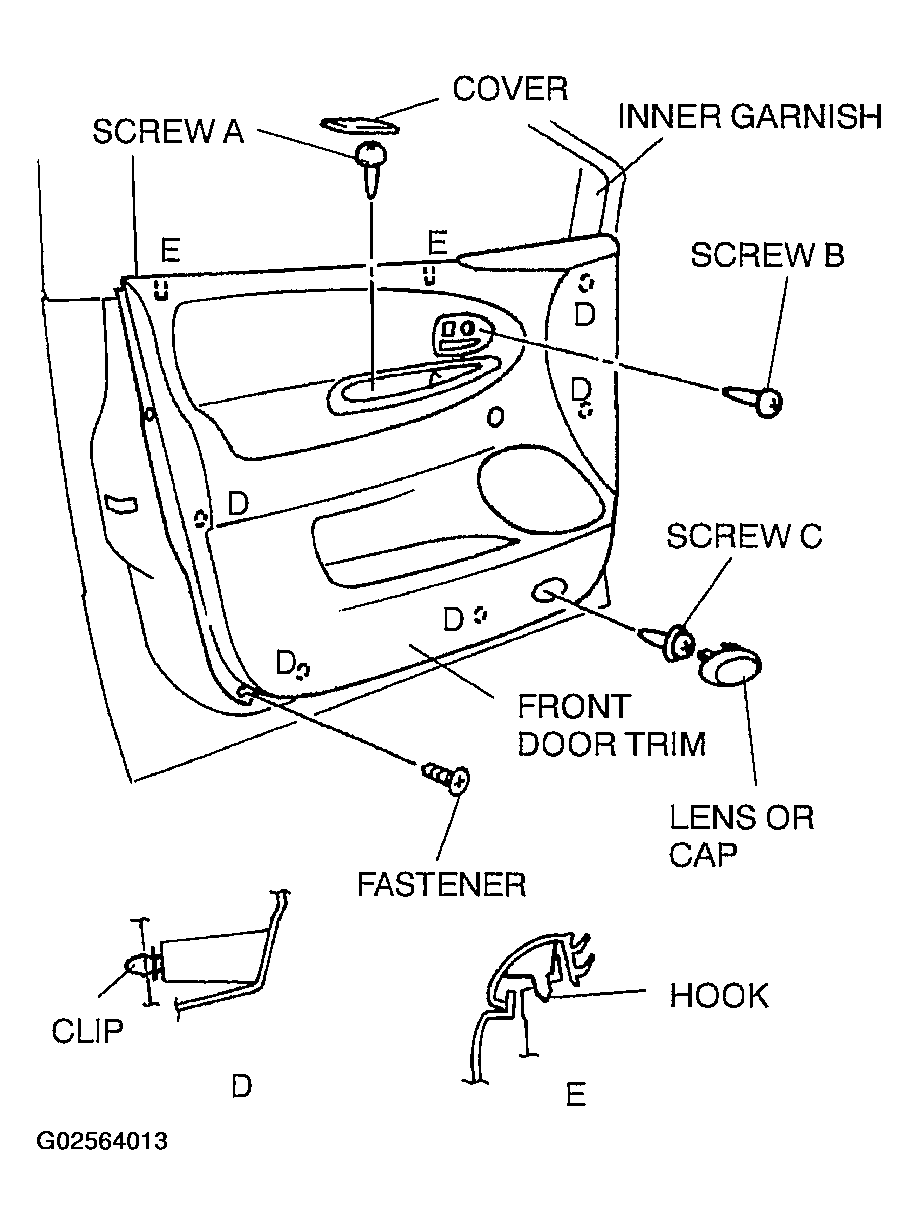

    5. Fig 1: Removing/Installing Front Door Trim
    G02564013Courtesy of MAZDA MOTORS CORP.
  5. Remove the cover.
  6. Remove the screw A.
  7. Remove the screw B.
  8. Remove the lens or cap.
  9. Remove the screw C.
  10. Disengage clips D from the body using a fastener remover.
  11. Pull the front door trim upward, then disengage hooks E from the body.
  12. Extract the inner handle from the front door trim.
  13. Disconnect the door lock switch connector and the power window main switch connector if equipped (driver's side).
  14. Disconnect the power window sub switch connector if equipped (passenger's side).
  15. Remove the courtesy light if equipped.
  16. Remove the front door trim.
  17. Install in the reverse order of removal.
