C-Pillar Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  2. Turn the seaming welt over.
  3. Remove the upper anchor of the second-row seat belt. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
  4. Disengage clips A and clip B using a fastener remover.

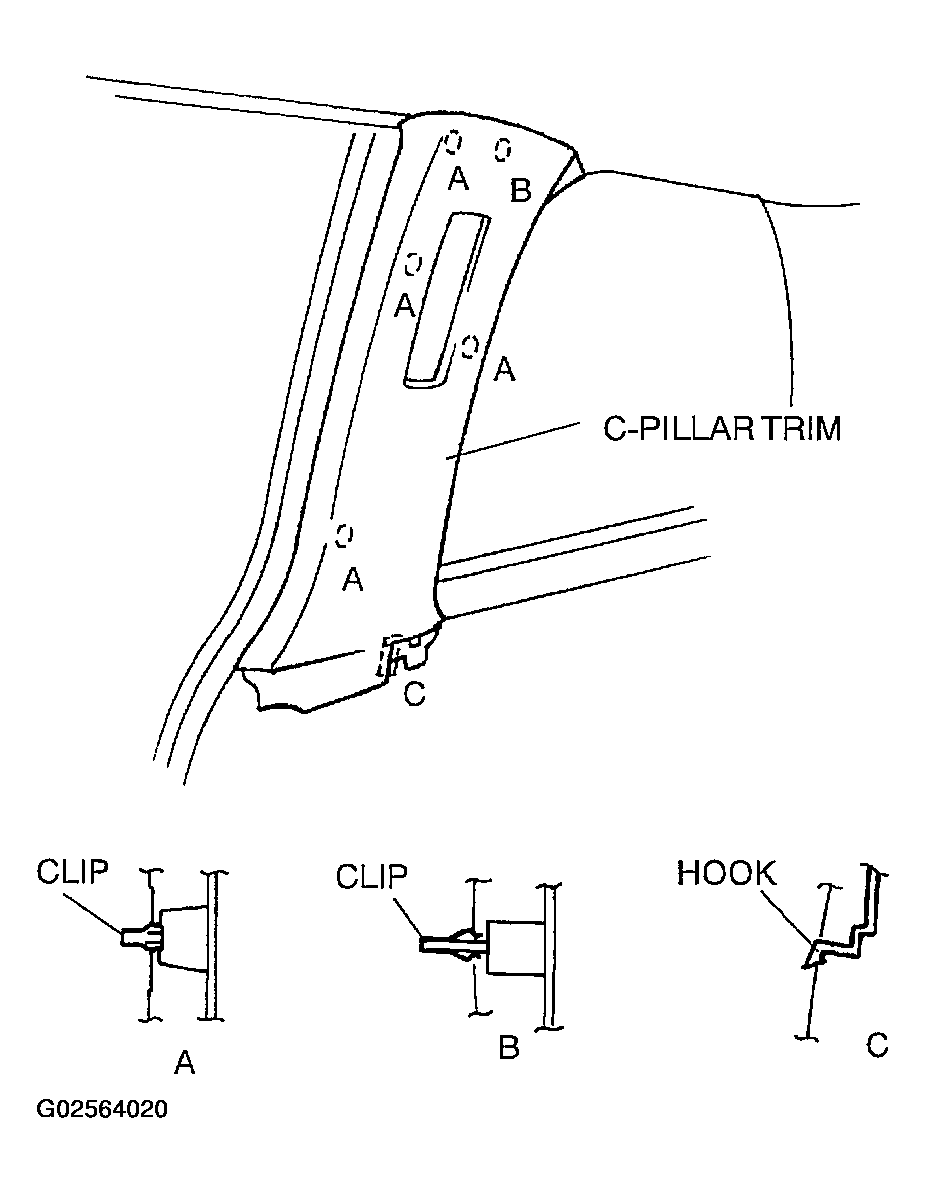

    Fig 1: Locating C-Pillar Trim Clips & Hooks
    G02564020Courtesy of MAZDA MOTORS CORP.
  5. Pull the C-pillar trim upward, then disengage hook C from the body, and remove the C-pillar trim.
  6. Install in the reverse order of removal.
