Transfer Component Disassembling Procedure

  1. Assemble the SSTs.

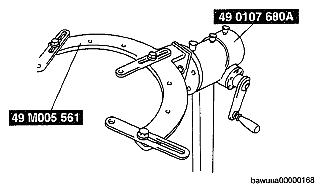

    Fig 1: Identifying SST (49 0107 680A, 49 M005 561)
    G04824129Courtesy of MAZDA MOTORS CORP.
  2. Install the transfer component to the SSTs.
  3. Remove the oil cooler.
  4. Remove the drive gear case component.

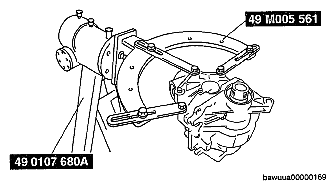

    Fig 2: Identifying SST (49 0107 680A)
    G04824130Courtesy of MAZDA MOTORS CORP.
