Transfer Component Assembly

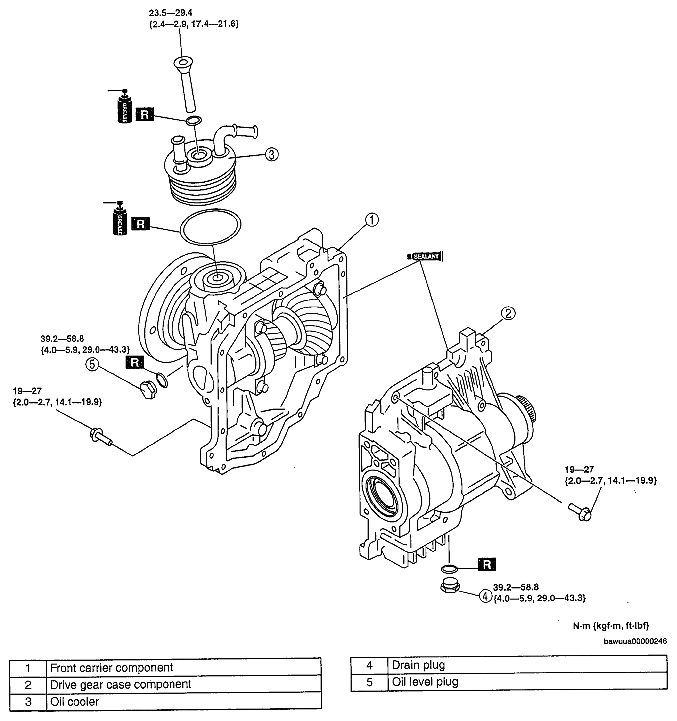

Fig 1: Exploded View Of Transfer Component Assembly With Torque Specifications

G04824209

Courtesy of MAZDA MOTORS CORP.
