Selector Lever Inspection

Turn the ignition switch to the ON position. (engine OFF)
With the brake pedal depressed, verify that there is a "click" at each range when shifted.

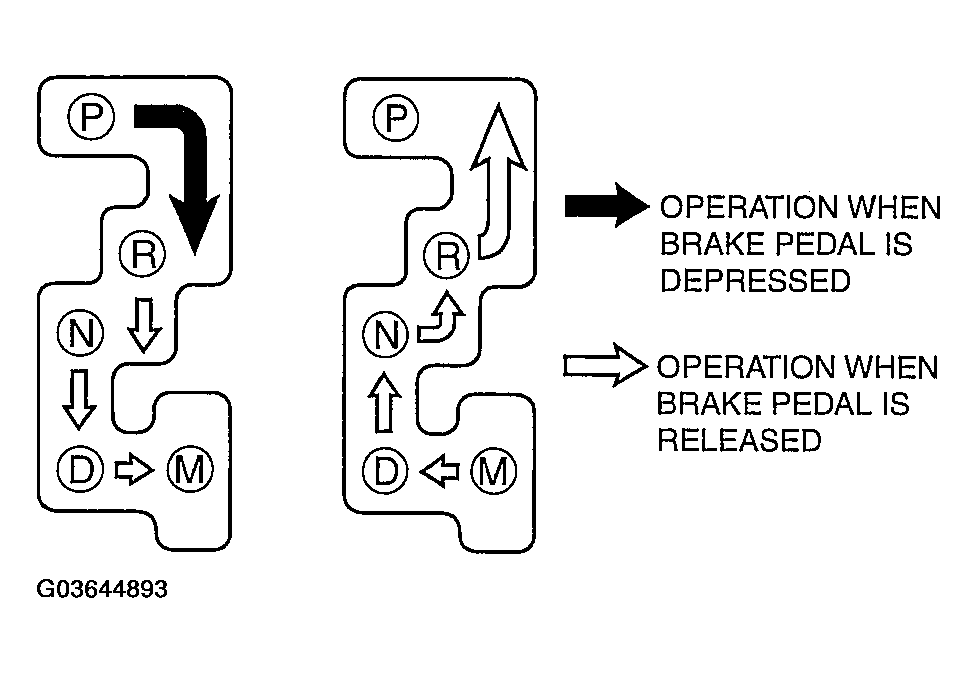

Fig 1: Selector Lever Shift Pattern
Courtesy of MAZDA MOTORS CORP.
Verify that the selector lever can be shifted.
Verify that there is a "click" at each position when shifted from P position to M range.
Verify that the positions of the selector lever and the indicator are aligned.
- If there is any malfunction, adjust the TR switch. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [FN4A-EL] .) (See NEUTRAL POSITION LEARNING .)

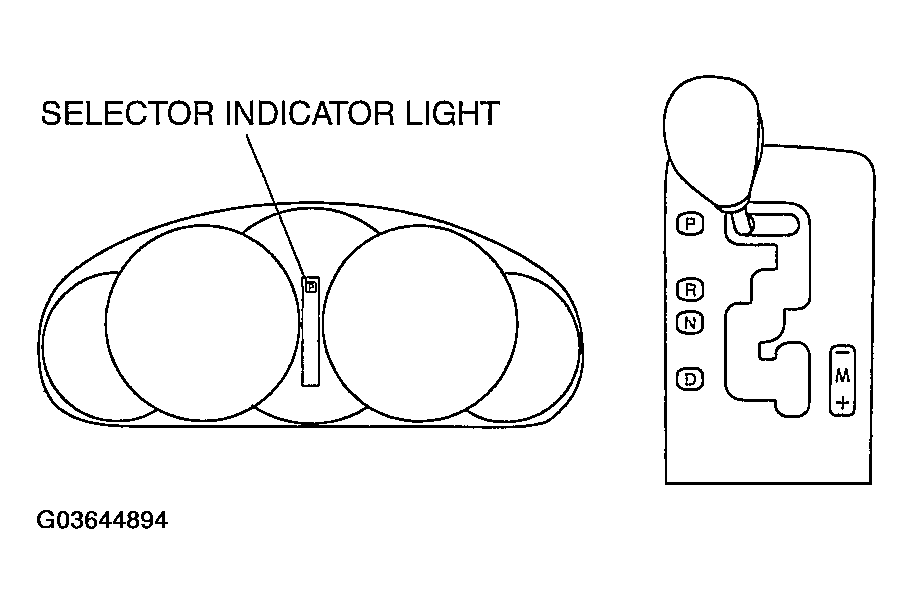

Fig 2: Verifying That Selector Lever And Indicator Are Aligned
Courtesy of MAZDA MOTORS CORP.
Verify that the vehicle operates in each selected range.
