Automatic Transaxle Shift Mechanism Location Index

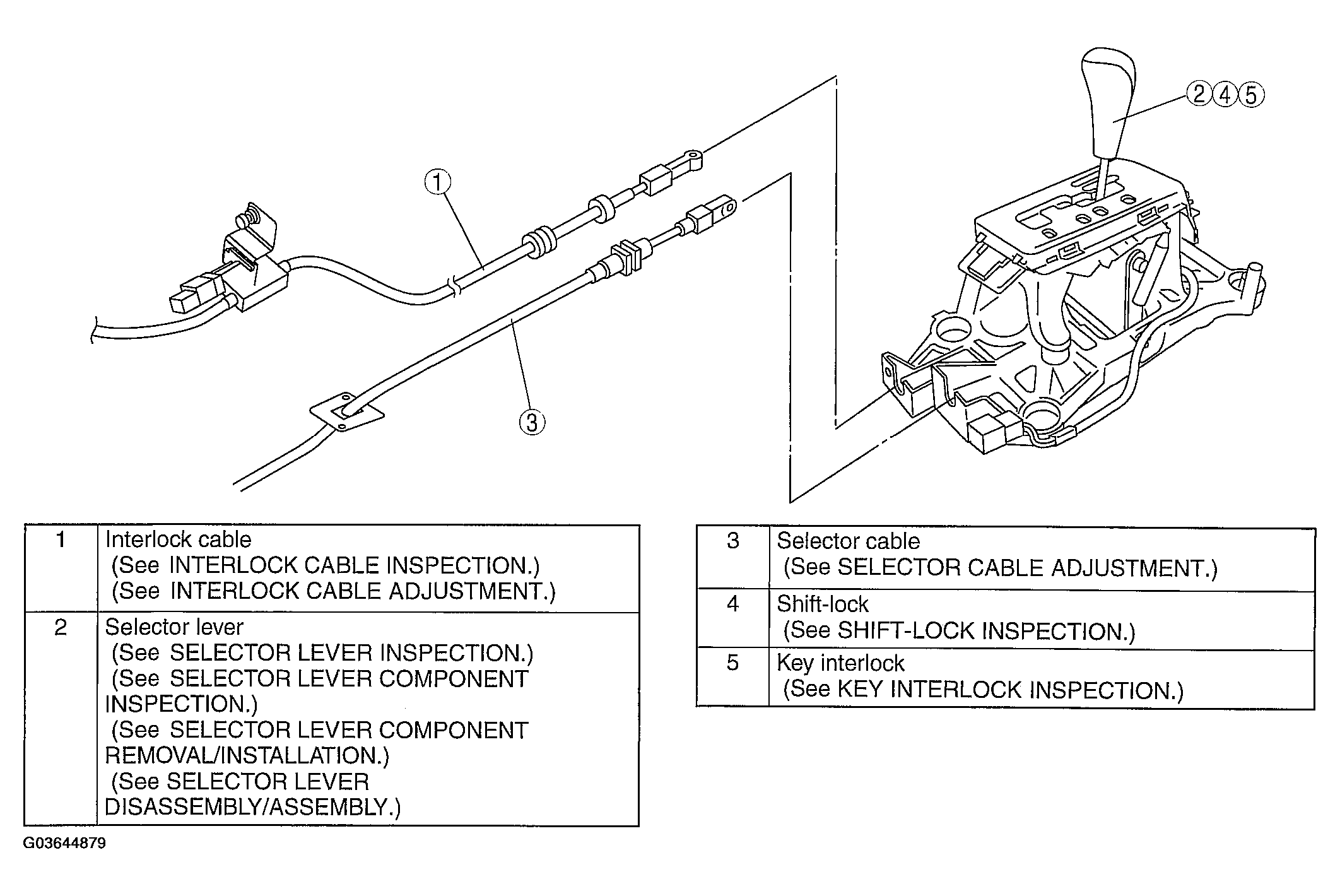

Fig 1: Identifying Automatic Transaxle Shift Mechanism Location Index

G03644879

Courtesy of MAZDA MOTORS CORP.
