Transfer Component Disassembly

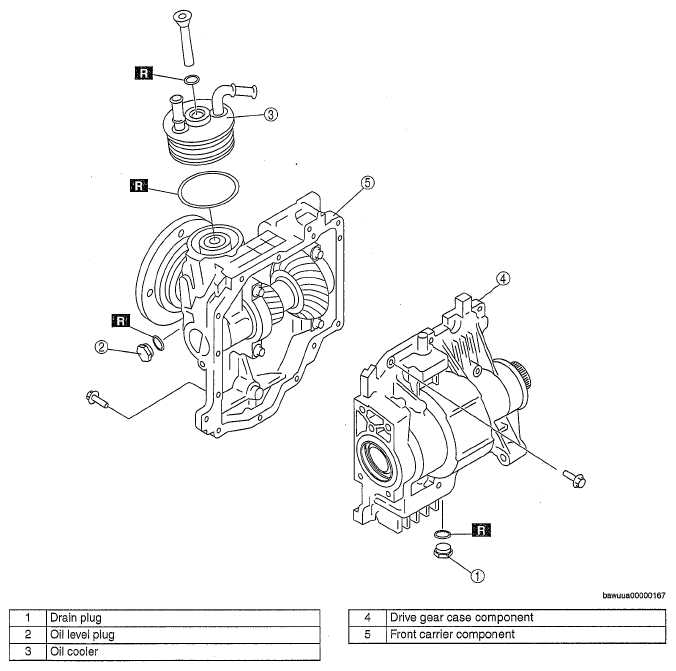

Fig 1: Disassembled View Of Transfer Component

G04824128

Courtesy of MAZDA MOTORS CORP.
