Home >> Mazda >> 2005 >> 6 s, 4D Hatchback, Standard >> Repair and Diagnosis >> Transmission >> Transfer Case [Overhaul] >> Transfer >> Transfer Disassembly >> Front Carrier Component Disassembly

Front Carrier Component Disassembly

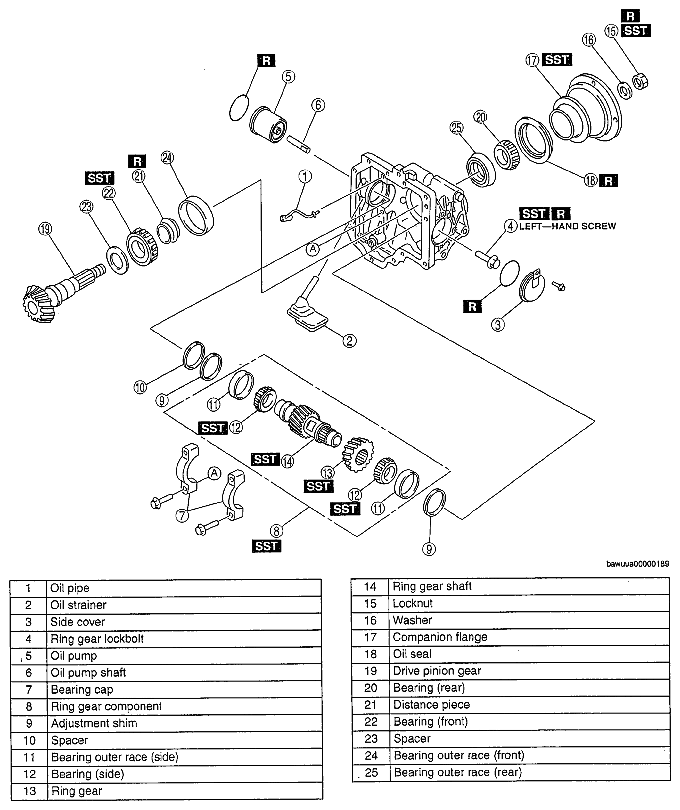

Fig 1: Disassembled View Of Front Carrier Component

G04824151

Courtesy of MAZDA MOTORS CORP.
