Home
>>
Mazda
>>
2005
>>
6 s, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case [Overhaul]
>>
Transfer
>>
Transfer Assembly
>>
Drive Gear Case Component Assembly
Drive Gear Case Component Assembly

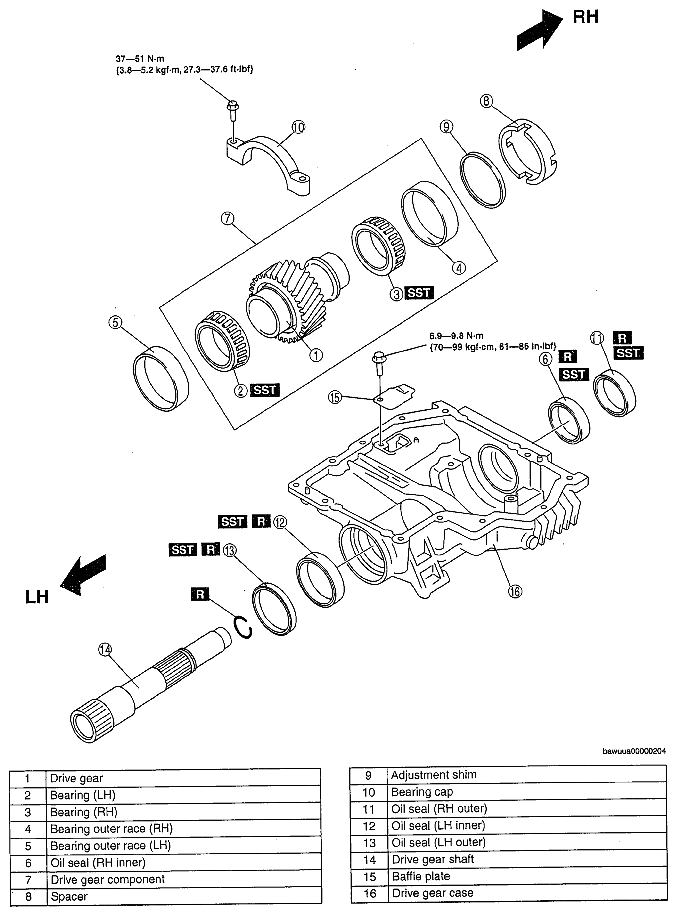

Fig 1: Exploded View Of Drive Gear Case Component Assembly With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
