Symptom Troubleshooting (Engine Control System AJ)
>>
Symptom Quick Diagnostic Chart
Symptom Quick Diagnostic Chart

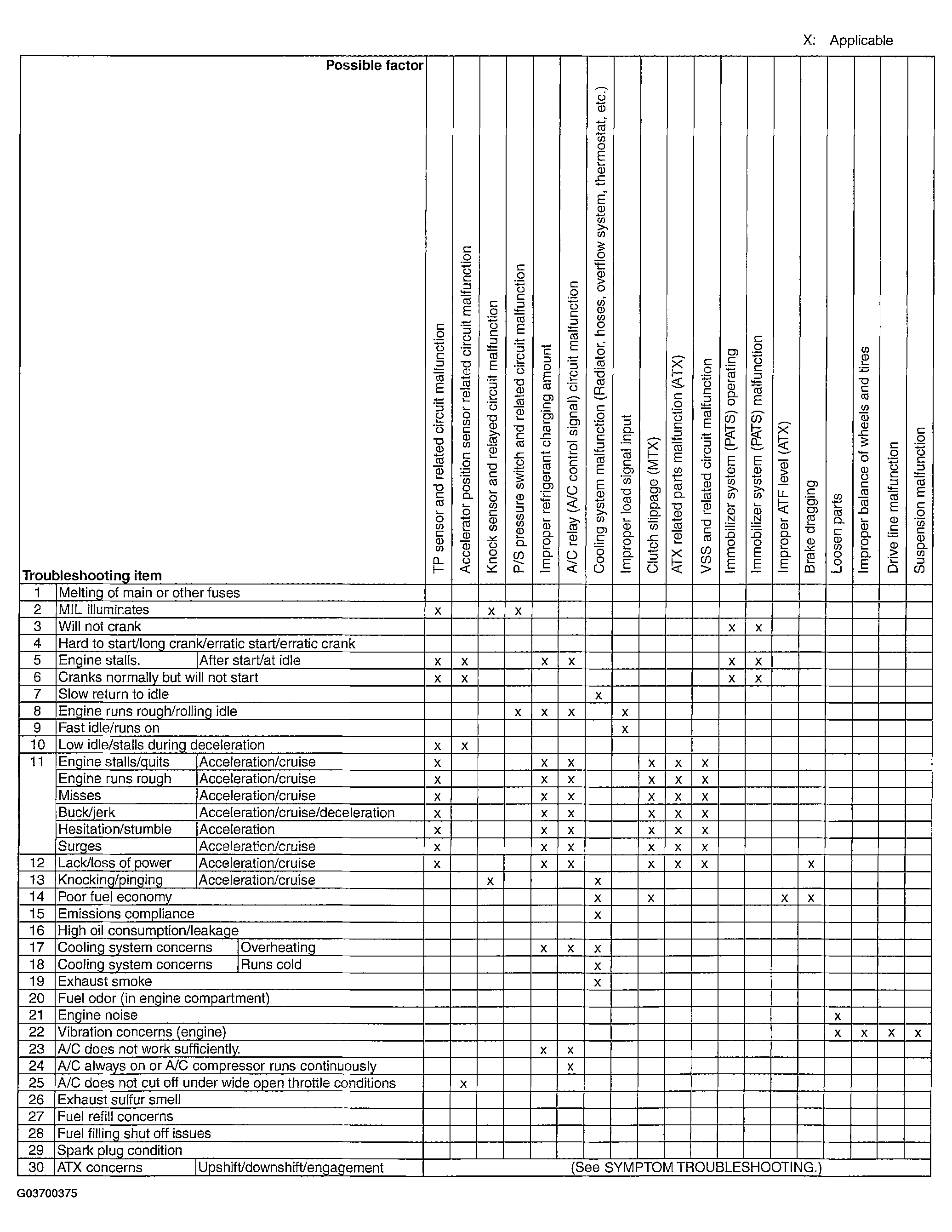

Fig 1: Symptom Quick Diagnostic Chart [AJ] (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

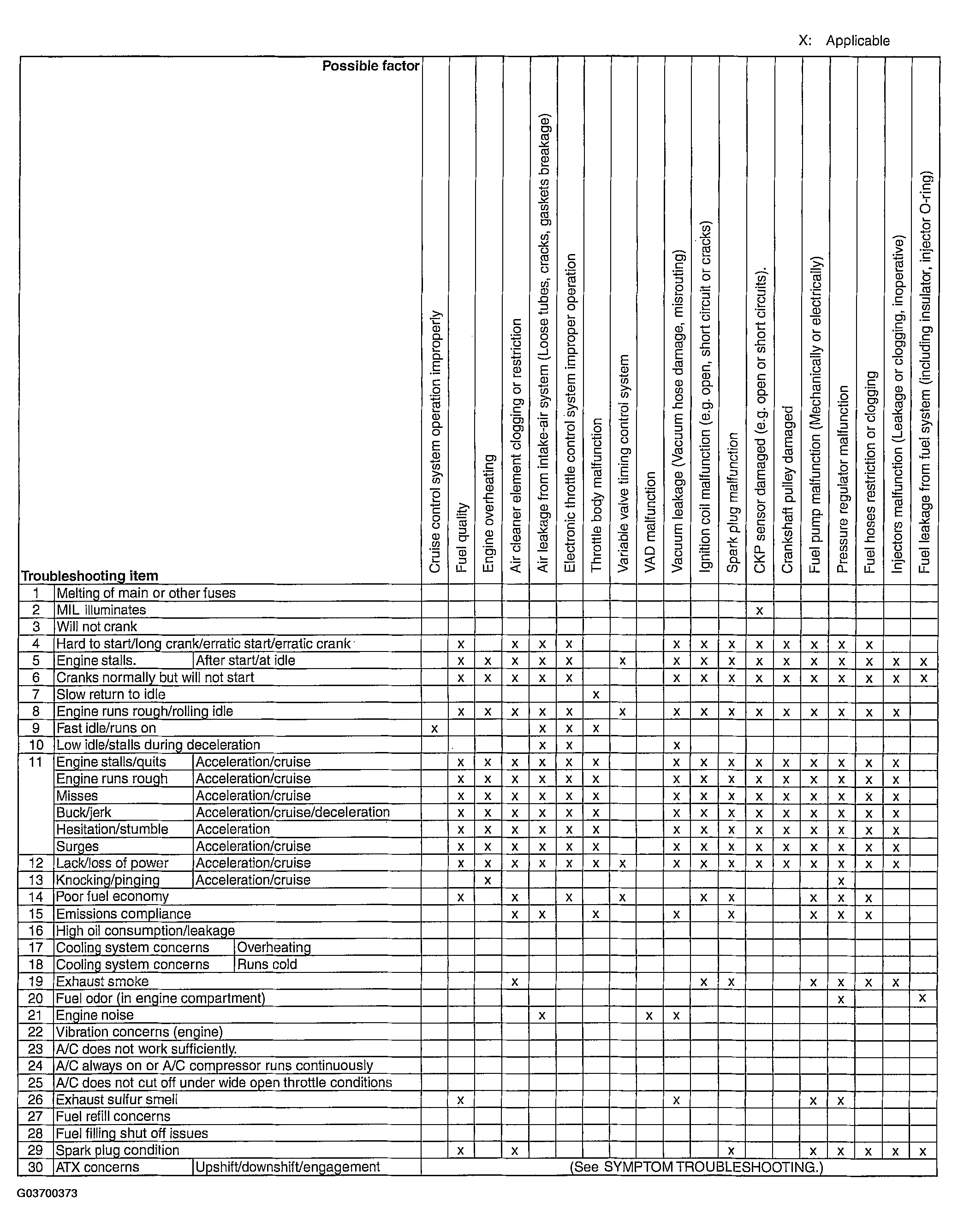

Fig 2: Symptom Quick Diagnostic Chart [AJ] (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

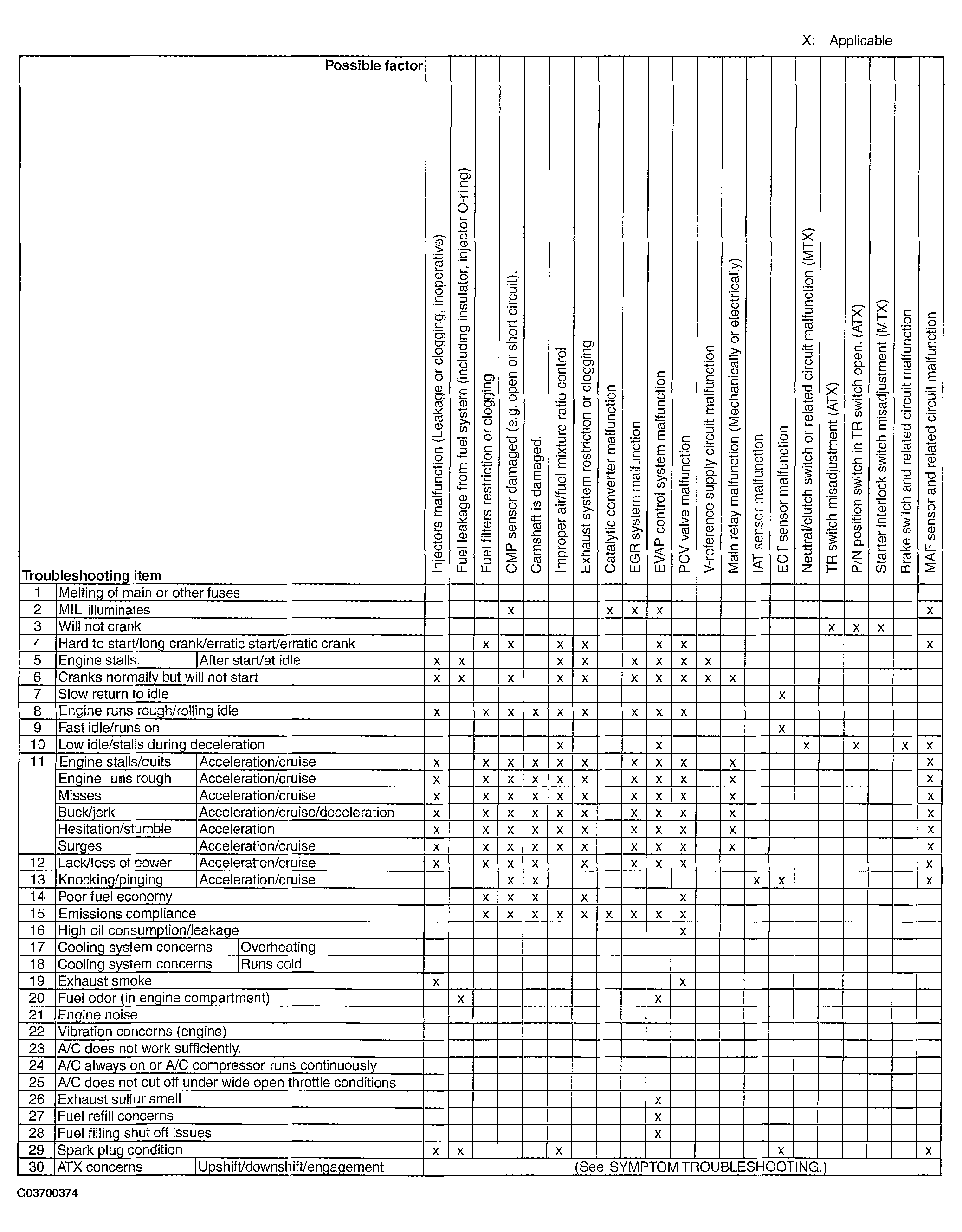

Fig 3: Symptom Quick Diagnostic Chart [AJ] (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

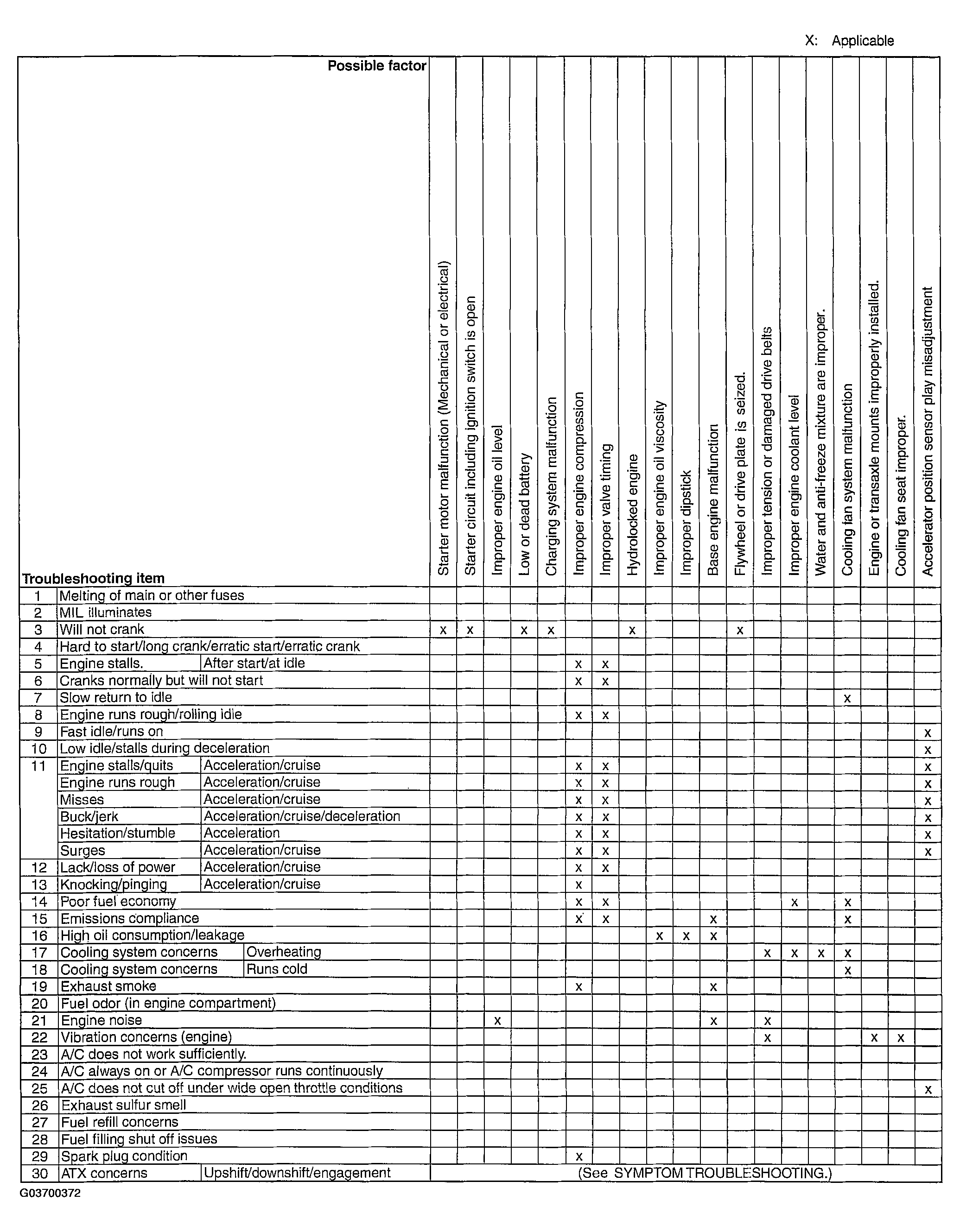

Fig 4: Symptom Quick Diagnostic Chart [AJ] (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
