DTC Reading Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
  3. Retrieve DTCs using the WDS or equivalent.

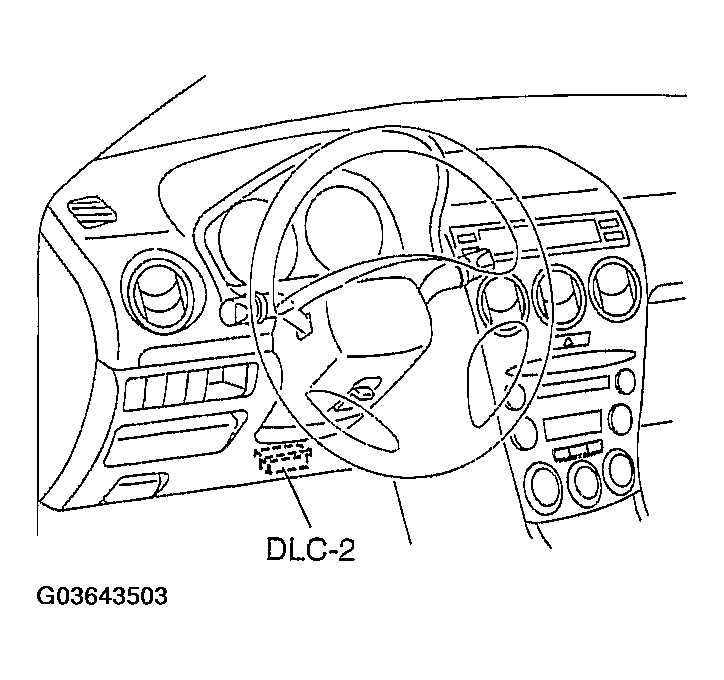

    Fig 1: Identifying DLC-2 (DTC Reading Procedure)
    G03643503Courtesy of MAZDA MOTORS CORP.
