On-Board Diagnostic (Engine Control System (AJ)
>>
Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart

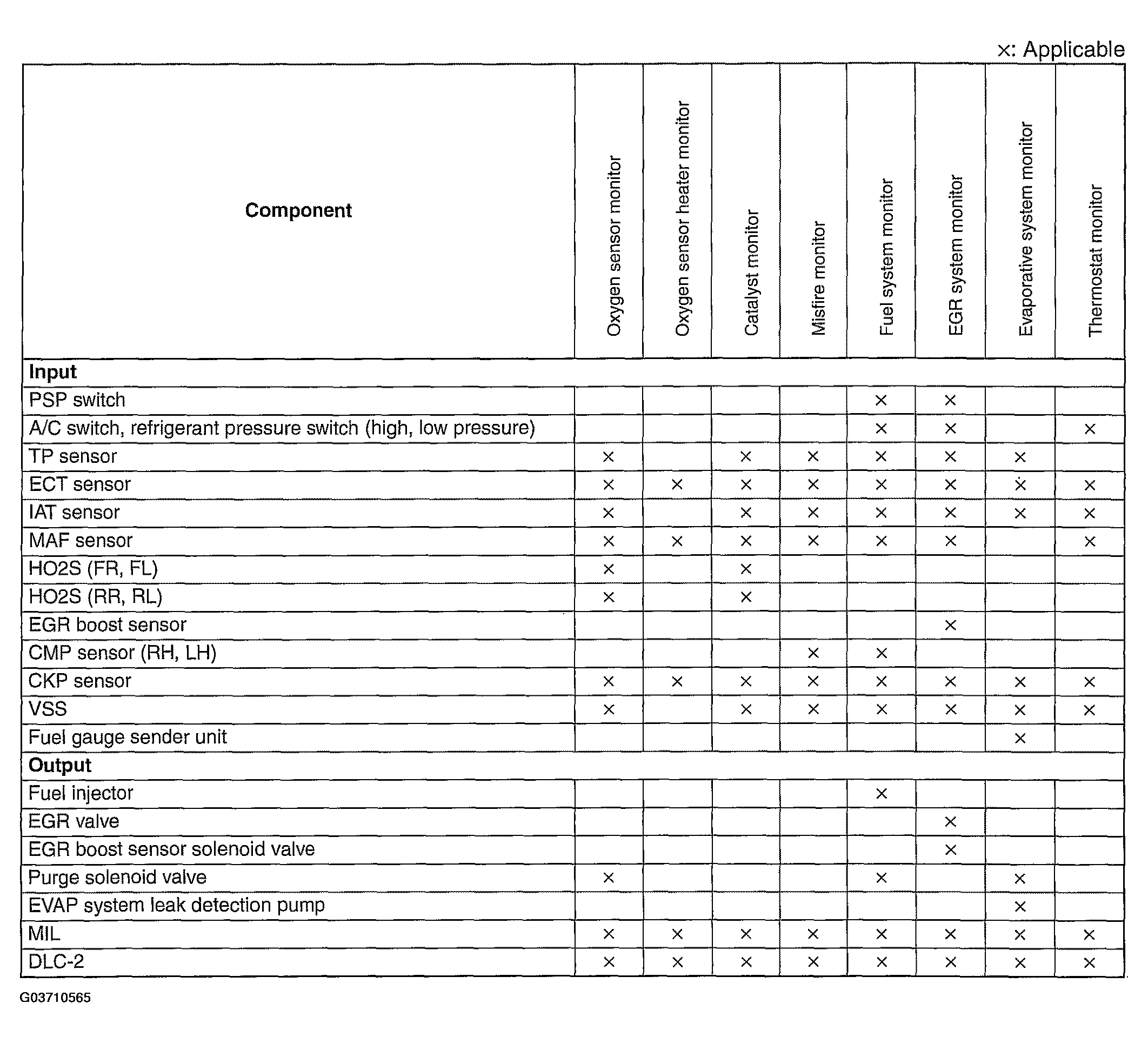

Fig 1: Monitoring System And Control System Device Relationship Chart [AJ]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
