Home >> Mazda >> 2005 >> 6 s, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System (AJ) >> DTC P2145 >> Notes

DTC P2145: Notes

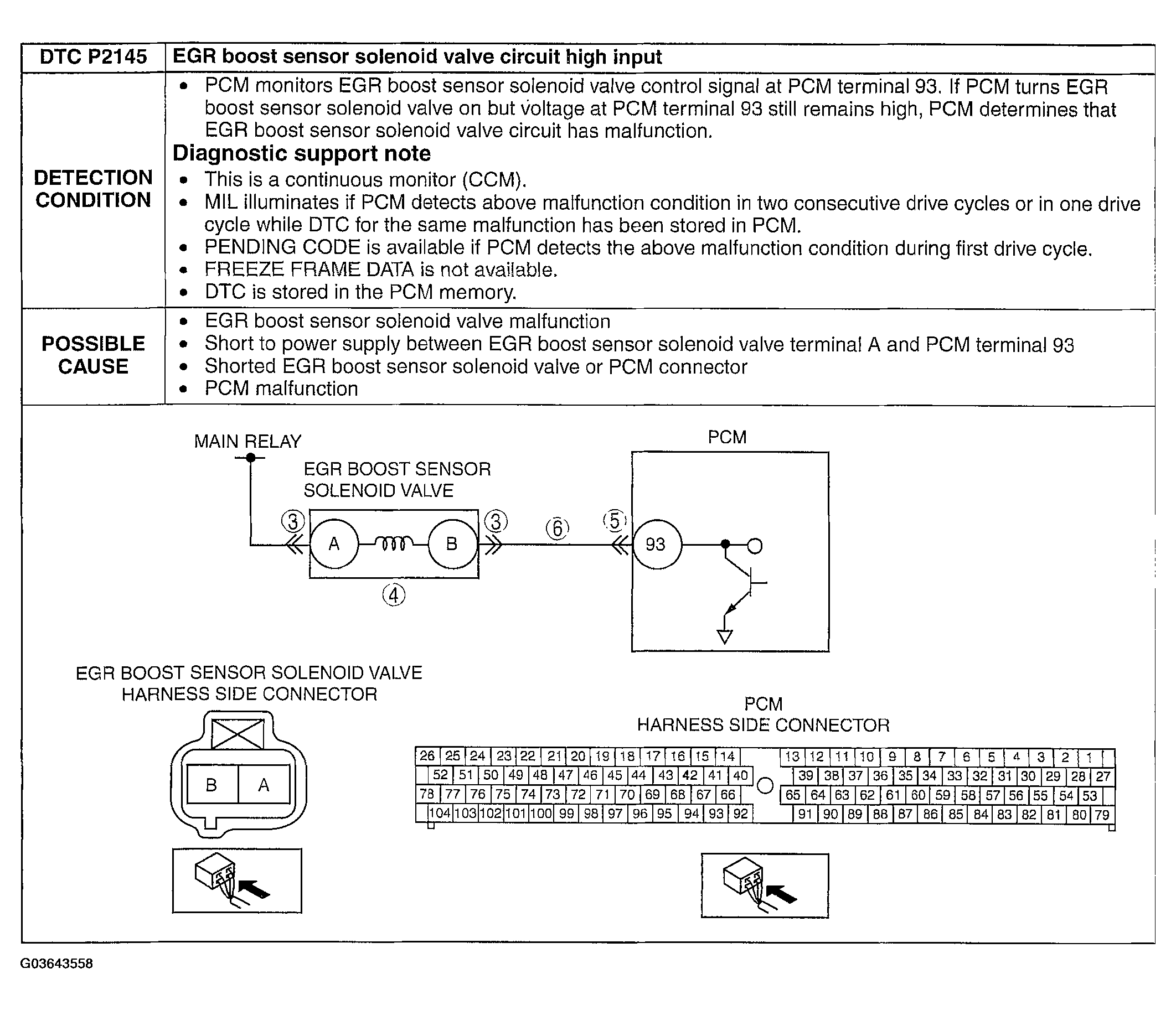

Fig 1: DTC P2145 [AJ] Detection Condition & Possible Cause

G03643558

Courtesy of MAZDA MOTORS CORP.
