DTC P0134, P0154: Notes

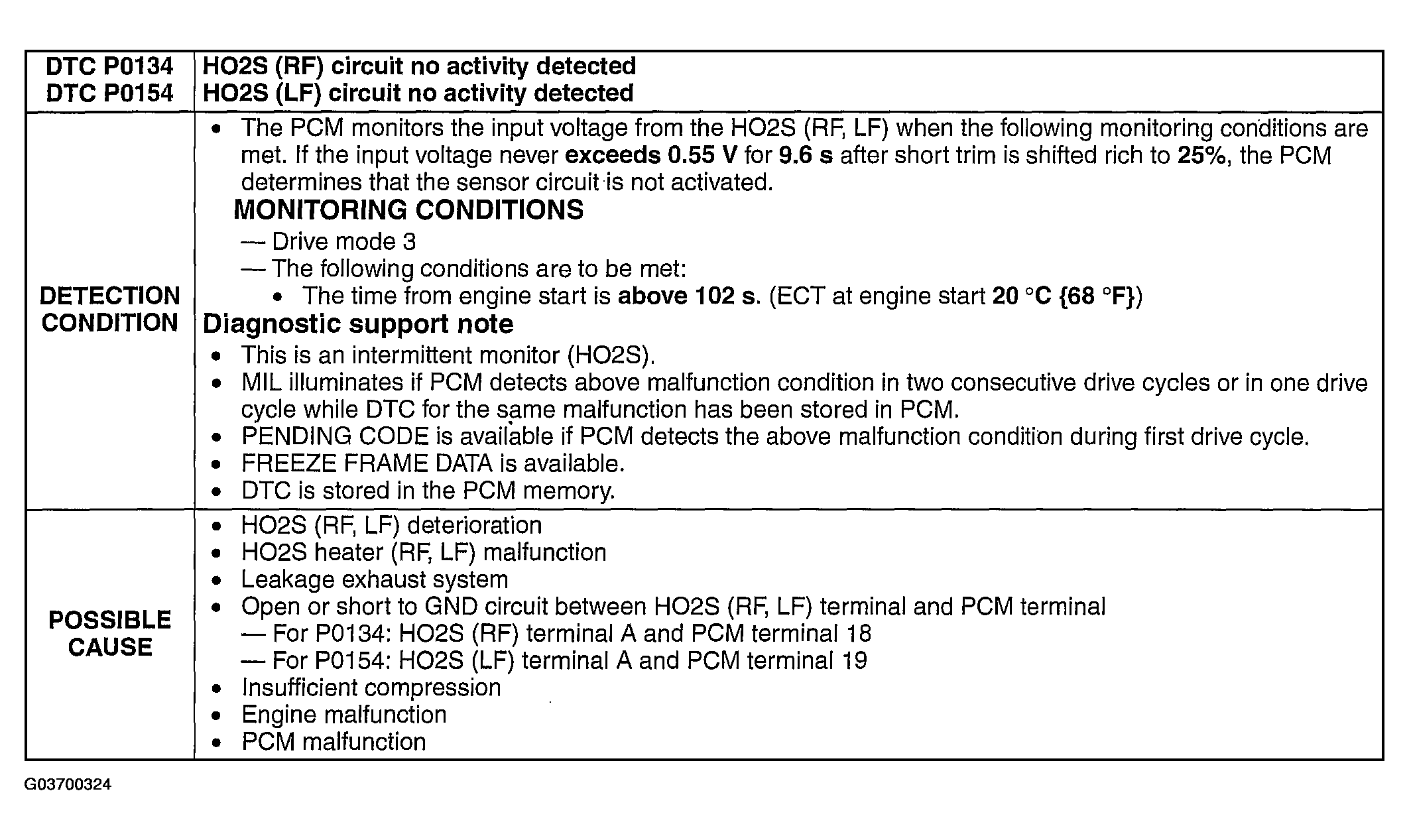

Fig 1: DTC P0134, P0154 [AJ] Detection Condition & Possible Cause

G03700324

Courtesy of MAZDA MOTORS CORP.
