Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L3] .)
  2. Inspect the following wiring harnesses for open or short circuit (continuity check).

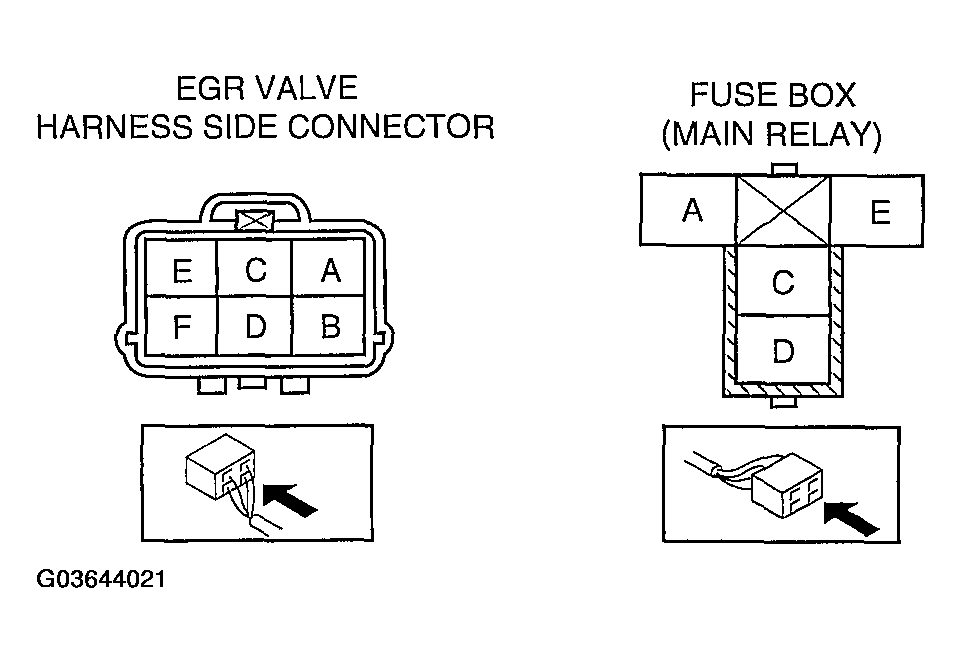

    Fig 1: Identifying EGR Valve And Main Relay Connectors
    G03644021Courtesy of MAZDA MOTORS CORP.

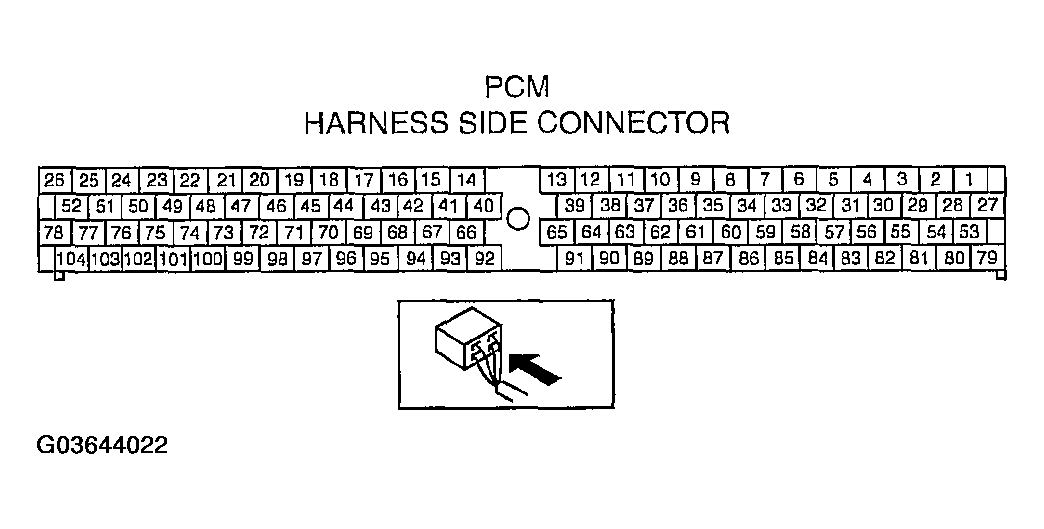

    Fig 2: Identifying PCM Connector California Emission Regulation Applicable ATX Model
    G03644022Courtesy of MAZDA MOTORS CORP.

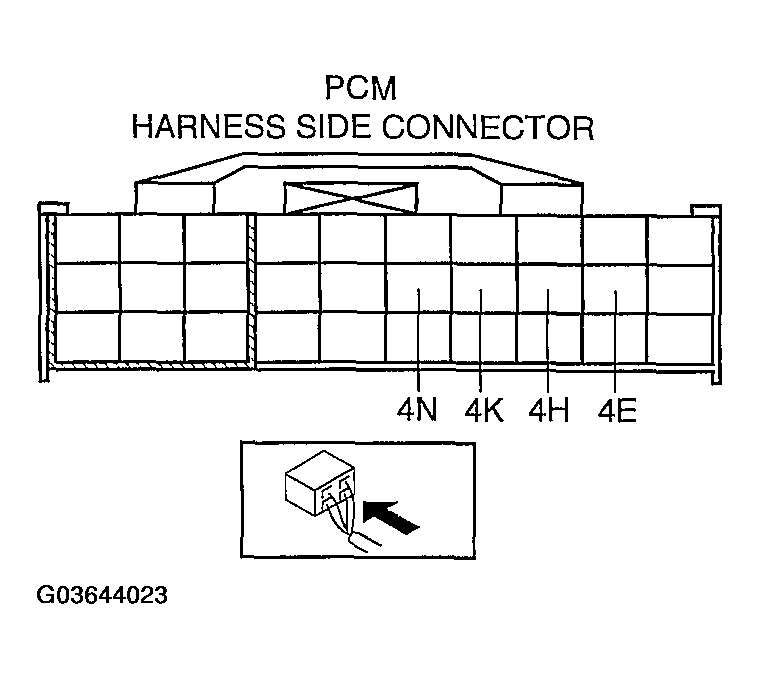

    Fig 3: Identifying PCM Connector Except For California Emission Regulation Applicable ATX Model
    G03644023Courtesy of MAZDA MOTORS CORP.
