Rear Door Quarter Glass Removal/Installation

  1. Remove the rear door trim.
  2. Remove the screw and bolt, then remove the rear door glass guide.

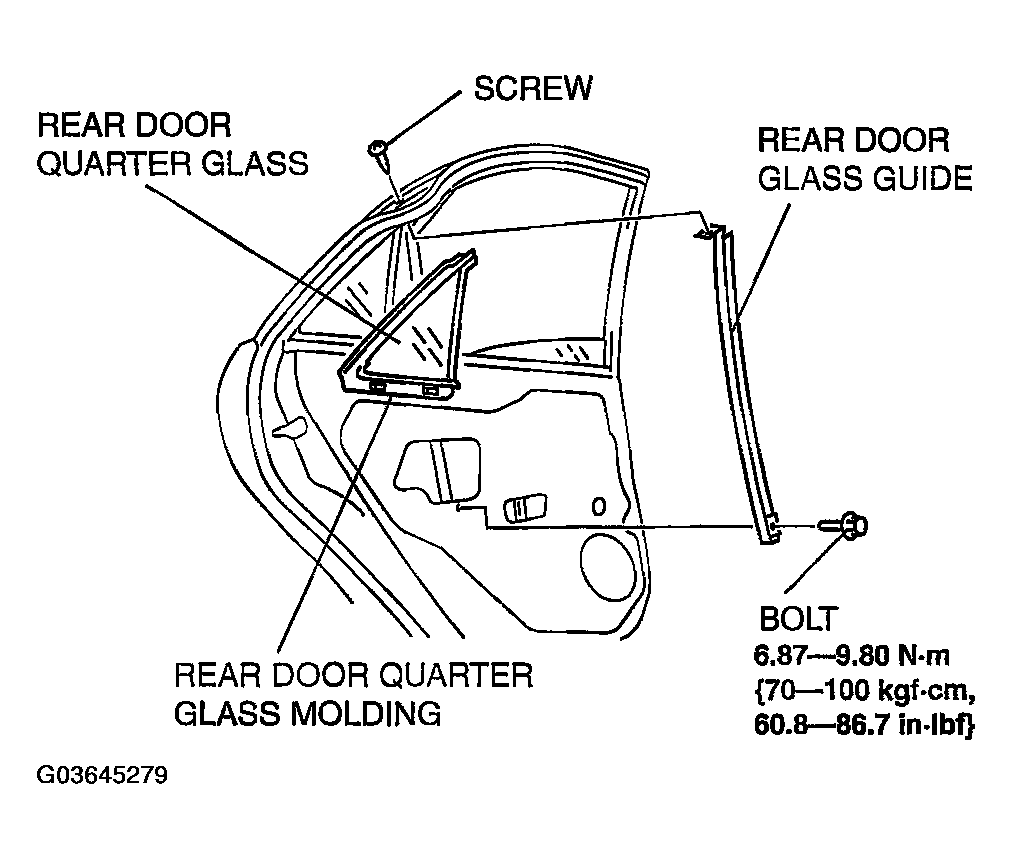

    Fig 1: Removing Rear Door Quarter Glass Molding From Glass (Torque Specs)
    G03645279Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear door quarter glass and the molding as a signal unit.
  4. Remove the rear door quarter glass molding from the glass.
  5. Install in the reverse order of removal.
