Symptom Troubleshooting (Keyless Entry System)
>>
Keyless Entry System Wiring Diagram
Keyless Entry System Wiring Diagram

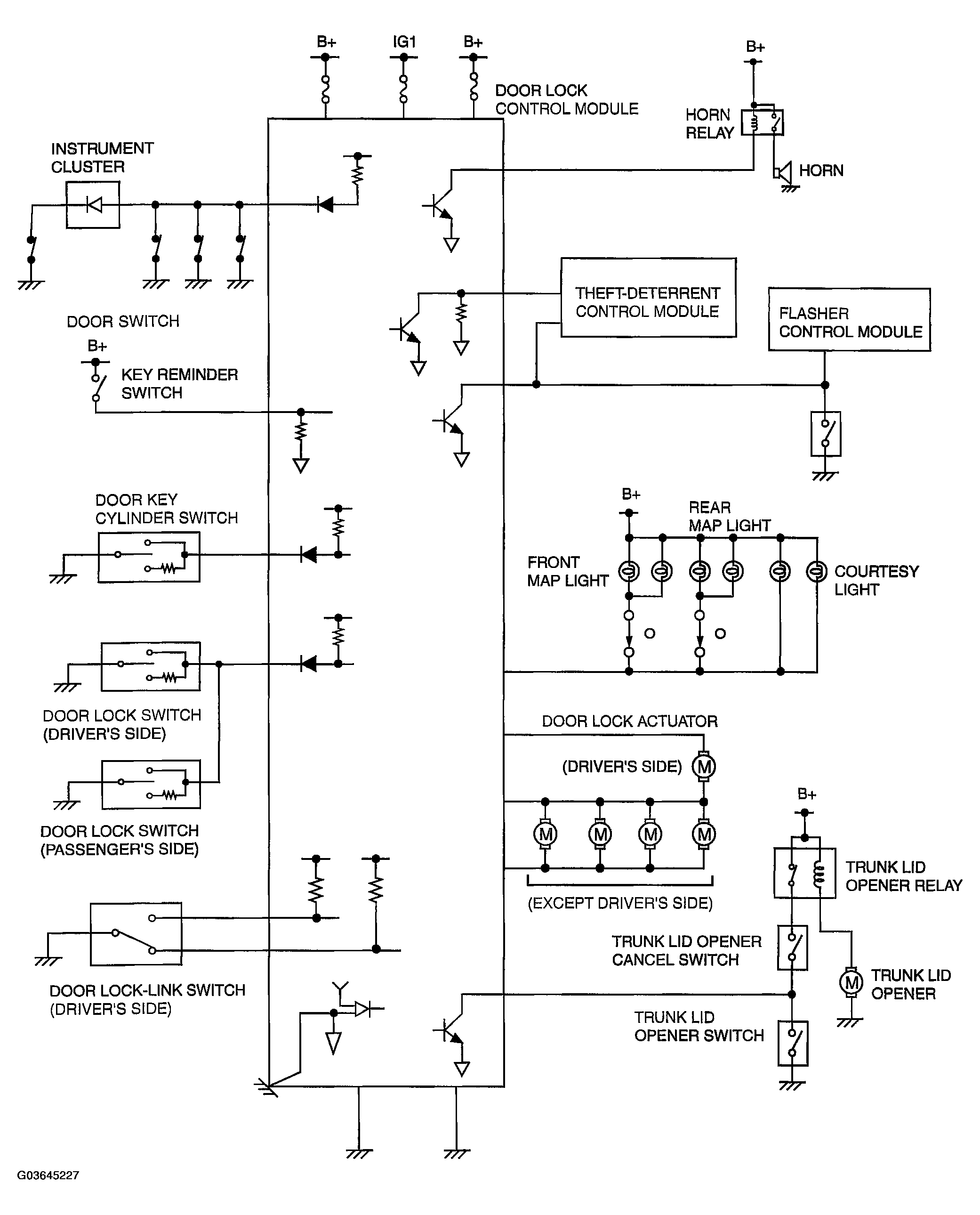

Fig 1: Identifying Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
